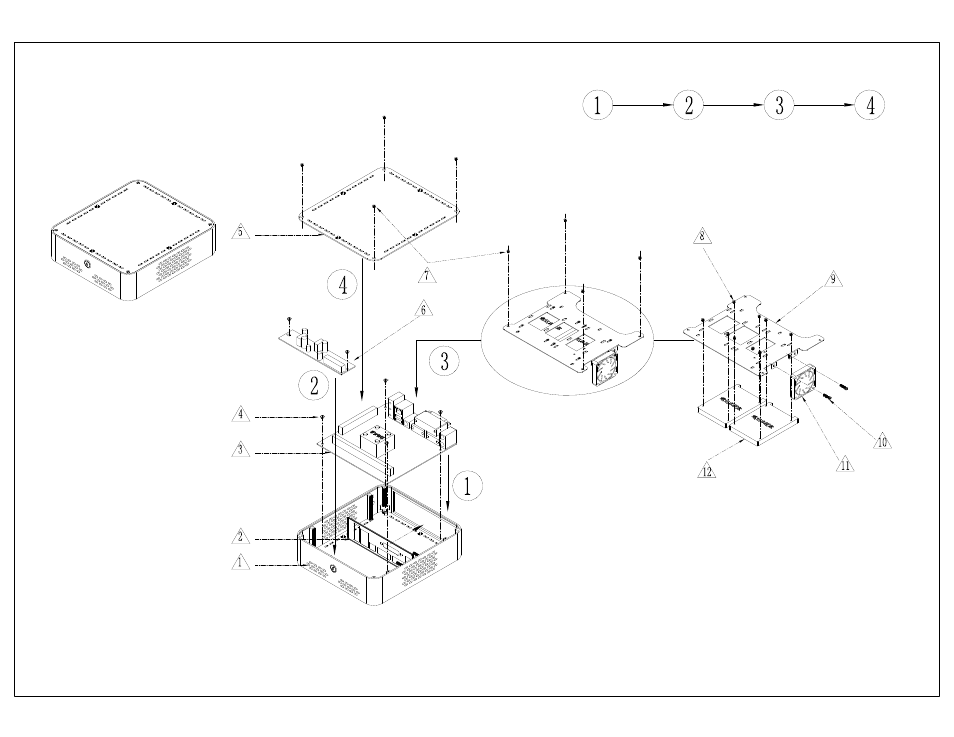

EMC-600 Mini-ITX Case
Steps:
Install Motherboard
Install power board
(for ATX board only)
Install hard drive,
case fan (optional)
Install top cover
1. Chassis
2. IO Shield
3. Mini-ITX board
4. Screws for board
5. Top cover
6. ATX DC-DC power board
(optional)
7. Screws for top and bottom
cover
8. Screws for hard drive mounting
9. Hard drive bay
10. Screws
11. Optional 5010 case fan
12. Drive bay for two 2.5" or
one 3.5" HDD
