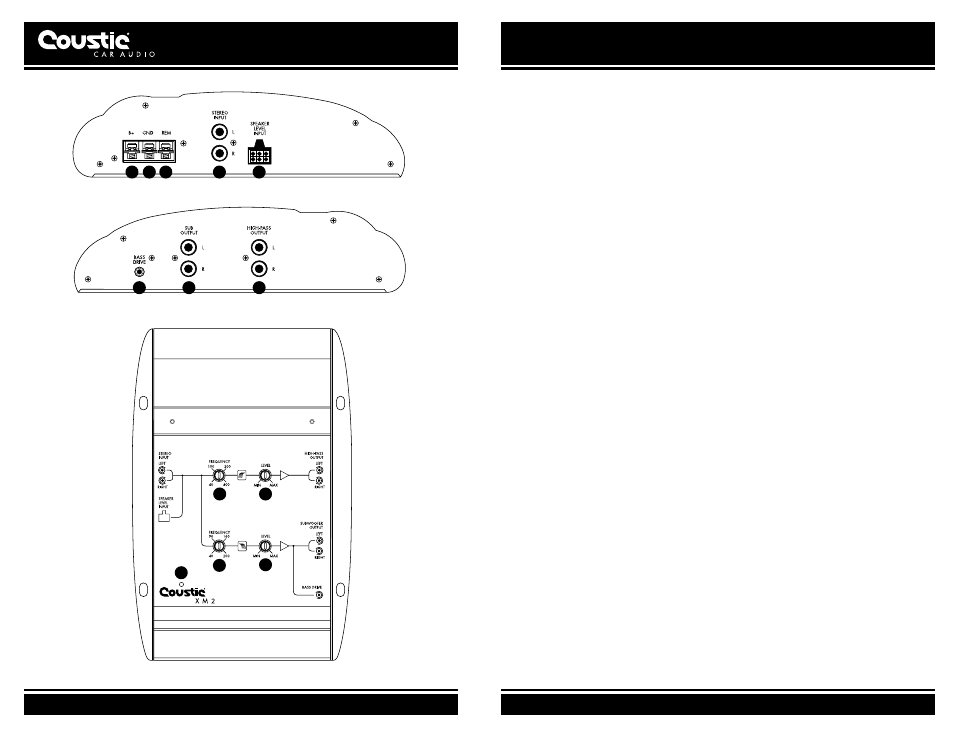

XM2: CONTROLS, INDICATORS & TERMINALS
1 Power Input Terminal (B+) – To be connected to the positive terminal of
your vehicle battery or other constant +12V source
2 Ground Input Terminal (GND) – To be wired to the vehicle’s chassis
ground
3 Remote Turn-on Input Terminal (REMOTE) – To be connected to the
remote control wire or antenna lead of the source unit for remote
ON/OFF
4 Line Level Inputs – To be connected to the front channel RCA output
of the source unit
5 Speaker Level Inputs – To be connected to the front channel speaker
output of the source unit
6 Bass Drive™ Remote Sub Gain Control Port – Connection for optional
R S remote to control subwoofer output levels
7 Subwoofer Line Outputs – To be connected to the dedicated
subwoofer amplifier left/right inputs
8 High Pass Line Outputs – To be connected to the dedicated high fre-
quency amplifier left/right inputs
9 High-Pass Frequency Selector – For selection of high-pass crossover
frequency between 40Hz and 400Hz, 18dB/Octave
10 Subwoofer Frequency Selector – For selection of the low-pass crossover
frequency between 40Hz and 200Hz, 36dB/Octave
11 High Pass Output Level Control – For adjusting the high pass output
signal level
12 Subwoofer Output Level Control – For adjusting the low pass output
signal level
13 Power Indicator – This indicator lights up when the internal switching
power supply is activated and the unit is operational
WWW.COUSTIC.COM
7
1 2 3 4 5
6 7 8
9
10
11
12
13
XM2 INPUT PANEL
XM2 OUTPUT PANEL
XM2 CONTROL PANEL
