Fat Shark BASE - Manual (Page 3)

Fat Shark 3 RC Vision Systems

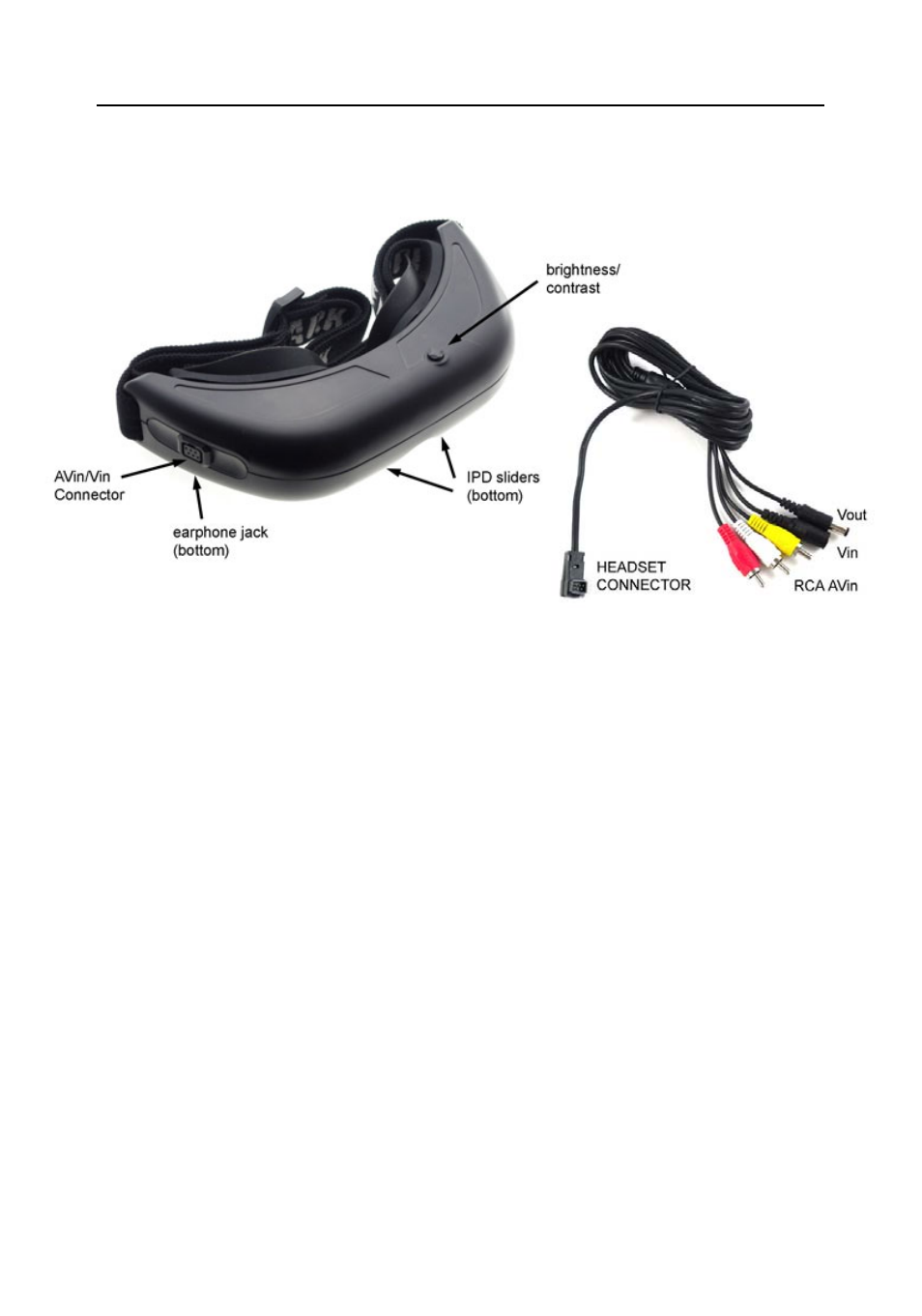

Controls Diagram
Controls
Brightness/contrast control:
Pressing left and right increases/decreases display contrast. Press forward/back
increases/decreases brightness.
Volume control: There is no volume control volume level is set at high. Use adjustable
earphone accessory for volume control.
Accessories
Diopter lens
For near sighted users, diopter lens insert sets are available that include -2, -4 and -6 dpt.
Adjustable Earphones
For simplicity and minimalist controls, the AttitudeSD does not have volume control. Audio is
outputting at max volume and needs to be adjusted to comfortable level via adjustable
volume earphones.
Power Shield
Offers reverse voltage and 2A fused short protection for safely powering off RC packs. RC
packs are dangerous as they have no safety circuit to limit discharge power. Power Shield
eliminates risk of cable fire.
