Evolution Engines 52NX - Manual (Page 10)

10

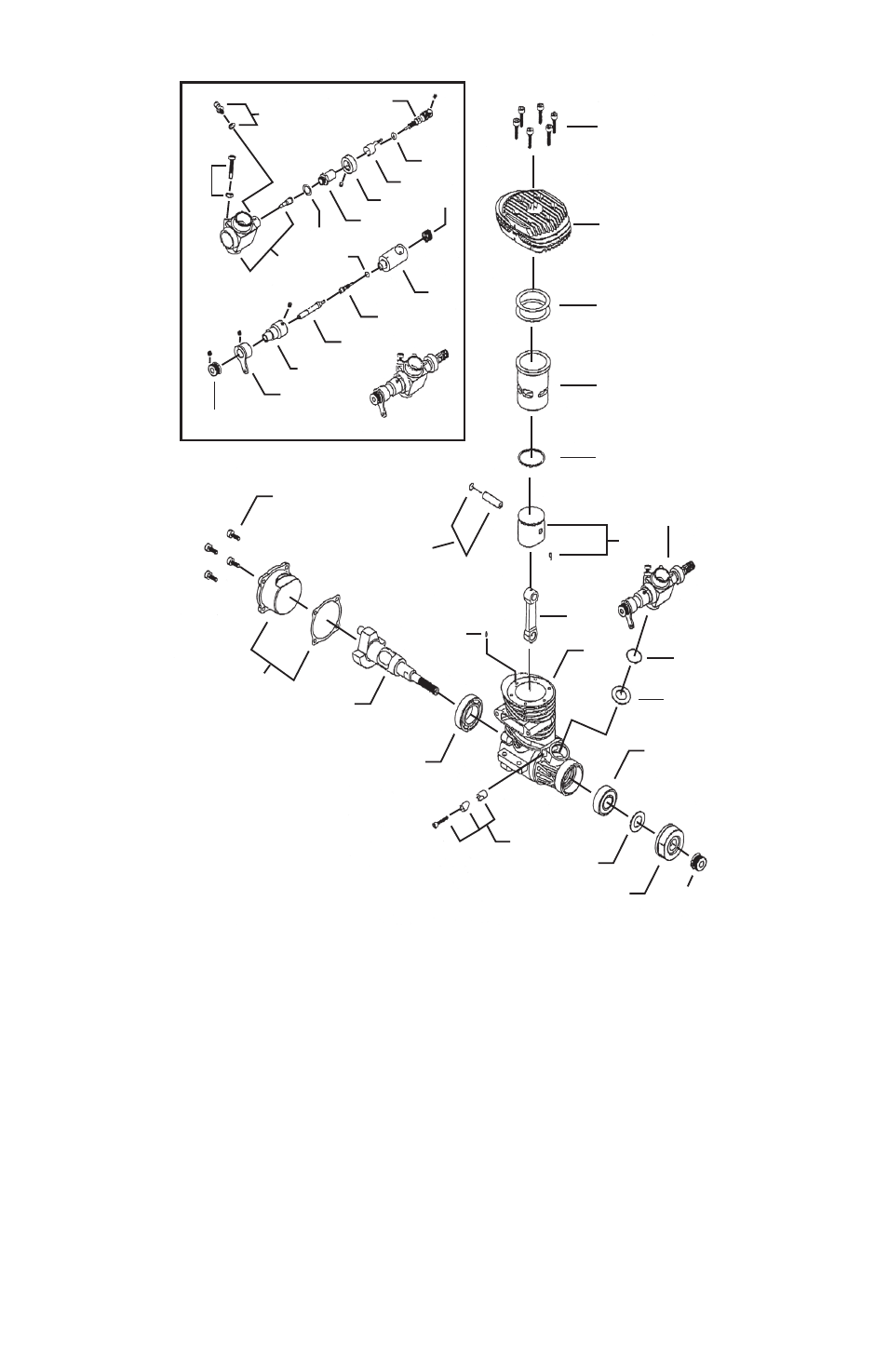

1 Crankcase
2 Rear Cover w/Gasket
3A Cylinder Liner
3B Piston Ring
3C Piston & Pin
4 Connecting Rod
(Dual Bushing)
5 Wrist Pin w/Clips (Teflon)
6 Crankshaft ( 1/4X28 )
7 Cylinder Head (Helicopter)
8 Cylinder Head Shim
9 Prop Driver
10 Spacer Washer (Drive Gasket)
11 Carburetor Retainer (Drawbar)
12 Prop Nut
13 Gasket Set, Engine
14 Ball Bearing, Front
(Rubber seal)
15 Ball Bearing, Rear (Open Race)
16 Screw Set, Engine
17 Carburetor
18 Carburetor Body (w/spraybar)
19 Fuel Nipple & Gasket
20 High-Speed Needle Valve
21 High-Speed Needle
Valve Ratchet
22 Collar w/Set Screw
23 Throttle Barrel
24 Spring, Throttle Barrel
25 Idle Needle
26 Throttle Arm
27 Idle Stop Screw w/Nut
28 Idle Needle Knob
29 Throttle Arm Extension
30 Idle Needle Valve Extension
31 Carburetor Gasket/O-Ring Set
32 Small Parts Set, Carburetor
33 Sleeve Index Pin
No. Description No. Description No. Description
16
, 1
A
B
C
1
1
1
1
, 1
1
10
11
1
1
6
1,
16
1
0
1
1
1
1
6
1
0
