9
Plug
Plug
Cap
Probe

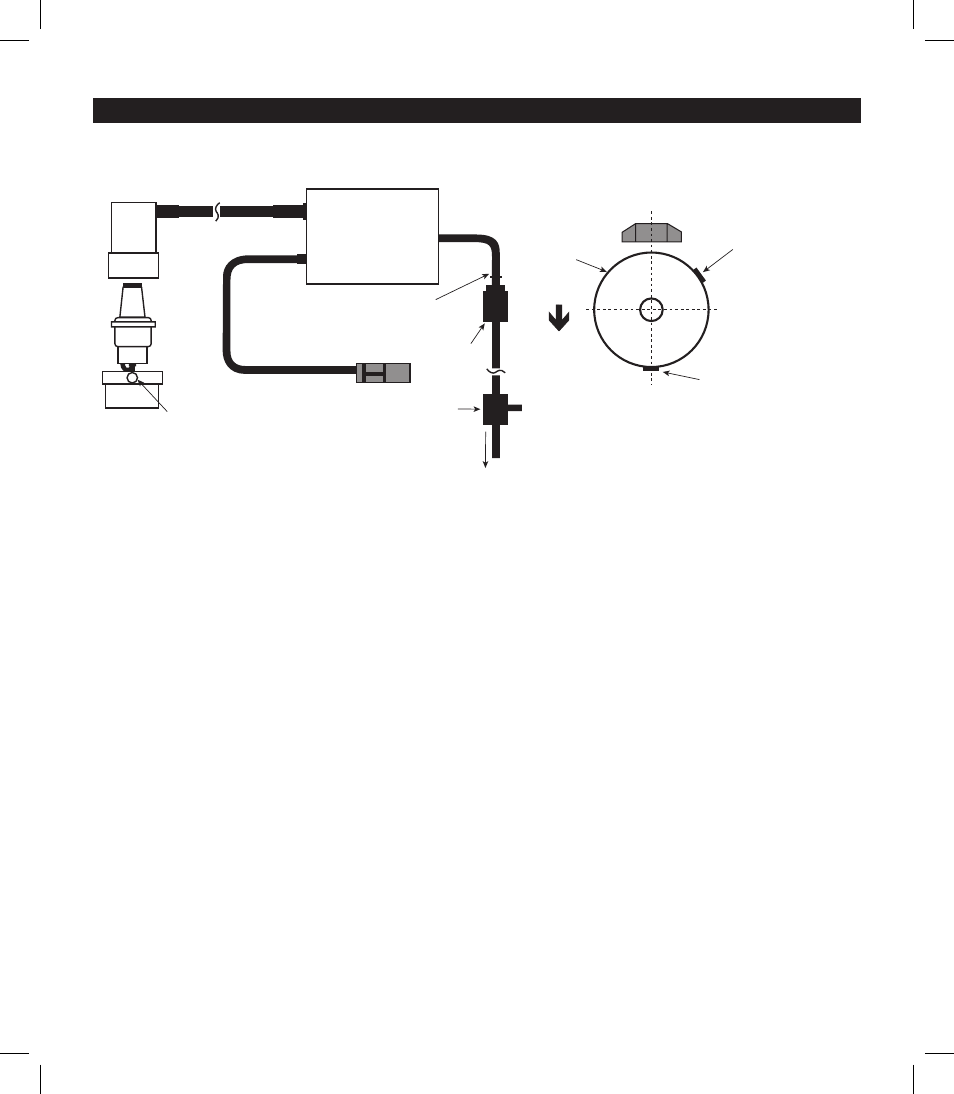

BASIC PROBE AND MAGNE T ADJUSTMEN T
Magnet A
Magnet B
Magnet A
Magnet B
Probe
Propeller Driver
Direction
of Rotation
Propeller Driver
Distance of probe from magnet 0:5 mm
Screw securing the connector in required position
Red
Black +
-
Battery
Connector
T o Battery
Switch
Magnet A position on the driver
corresponds to the
TOP DEAD CENTER of the piston.
Magnet B is oriented reversely.
Basic pre-ignition adjustment
is given by magnet A.
Magnet distance is 180 degrees.
Ignition
Module
Installation of the Ignition Unit Installation of the Ignition Unit Continued
