WARNING! Use the ignition only in dry conditions
Use recommended number and type of cells for every ignition type
The product is specified for RC engines only (other use must be approved by the manufacturer)
Do not take off the plug cap if the ignition is on
Danger of electric injury (voltage over 20,000V)
Recharge ignition battery only outside the model
Because of possible interferences, ignition and battery should be placed at least 25 cm from the receiver
The manufacturer is not responsible for damages caused by not following the manual or by using the ignition for anything other than RC engines.
Guarantee is void if the high voltage (HV) cable or HV isolation is damaged, the pickup or batteries are reversed, or the ignition box is opened.
Technical Data
* if battery test is enabled
Lite Version
170 g Weight
2x Li-Ion/LiPo* Power supply
6x NiCd / NiMH*
5x NiCd / NiMH
6.5V*
Minimal battery voltage*
Sleep mode after 90 seconds of engine inactivity
Battery level signalization *
Ignition goes off if engine runs counterclockwise
Choice of preignition curve
5º Preignition point
240º / 120º Location of the magnet
600mAh Min. battery capacity
Never use ignition with plug cap removed from plug! Before first
flight, do a range check with running engine.

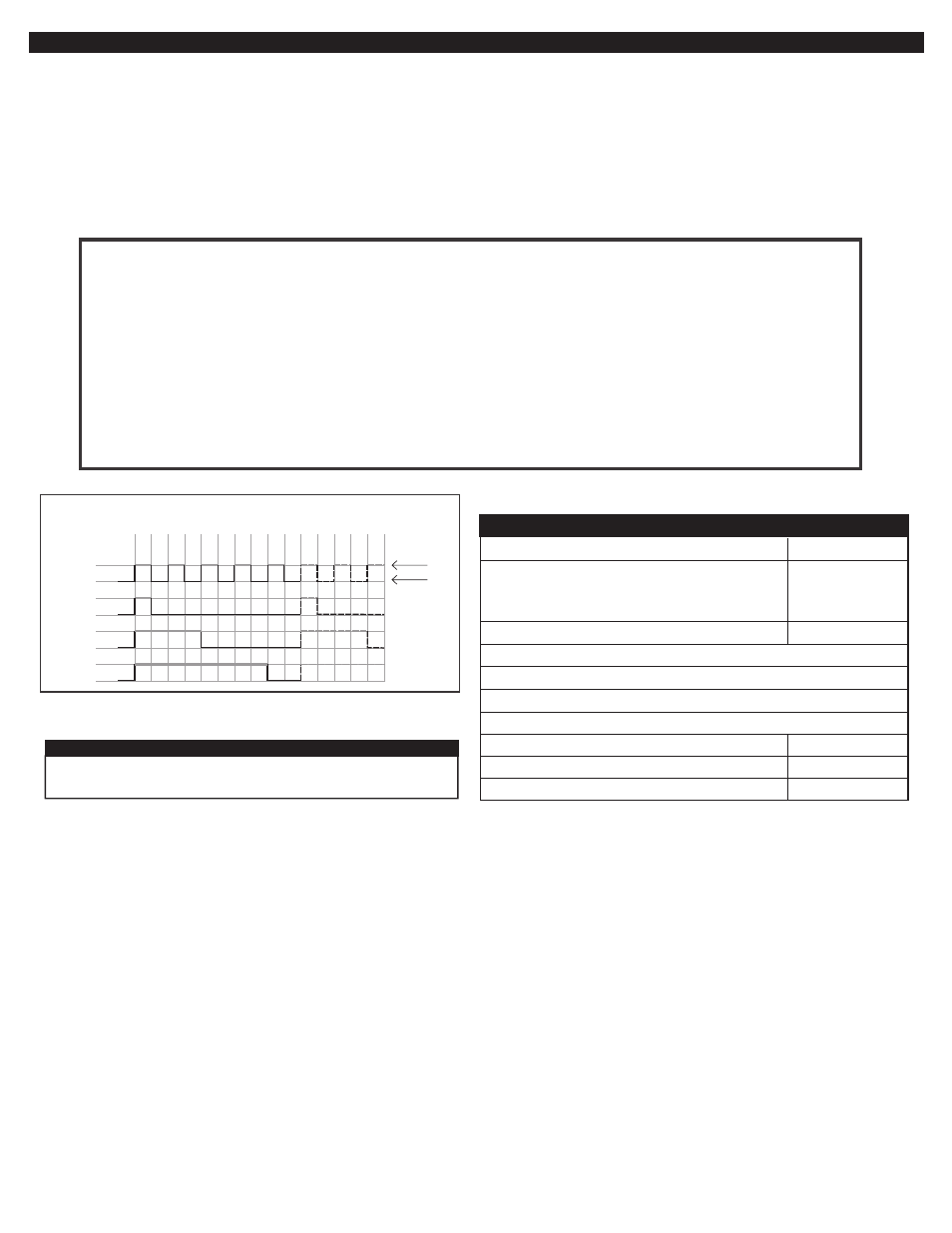

Programming Sequence
Low battery
Sleep mode
Short silencer
Long silencer
0 10
0
m
s
20
0
m
s
30
0
m
s
40
0
m
s
50
0
m
s
60
0
m
s
70
0
m
s
80
0
m
s
90
0
m
s
1
s
1.
1
s
1.
2
s
1.
3
s
1.
4
s
LED Blinking Types
light
dark
LED Blinking Indication
One short flash
per second
Sleep mode spark is blocked
Unplug battery and
reconnect it again
Type Problem Solution
Changing the Ignition Timing
If using the battery test function
- Make sure plug cap is attached to the plug
- Turn on ignition and power up
- Wait about 90 seconds until sleep mode is active; LED will begin flashing once per second
- If battery test is enabled (jumper is plugged) remove the jumper from programming pins
- Wait about 3 seconds; a flashing sequence changes itself
- Unplug battery
- Plug jumper back (to enable battery test)
If not using the battery test function
- If battery test is disabled (jumper is removed), plug the jumper to programming pins
- Wait about 3 seconds until flashing sequence changes
- Unplug battery
- Unplug jumper back (to disable battery test)
To change silencer type, repeat the procedure again:
short muffler ➭ tuned pipe ➭ short muffler, etc.
