Evolution Engines 15GX 15cc - Manual (Page 6)

EN
6
1. Use a secure method to attach the
throttle linkage to the throttle arm on the
carburetor.
2. Power on the transmitter and receiver.
3. Move the throttle stick to the middle stick
position.
4. Adjust the throttle arm so the arm is 90
degrees to the throttle pushrod.
5. Center the throttle servo. Install a servo arm
with a hole 11mm (7/16 in) from the center
of the arm.
6. Use a clevis to attach the throttle linkage to
the servo arm.
11mm
1.5mm

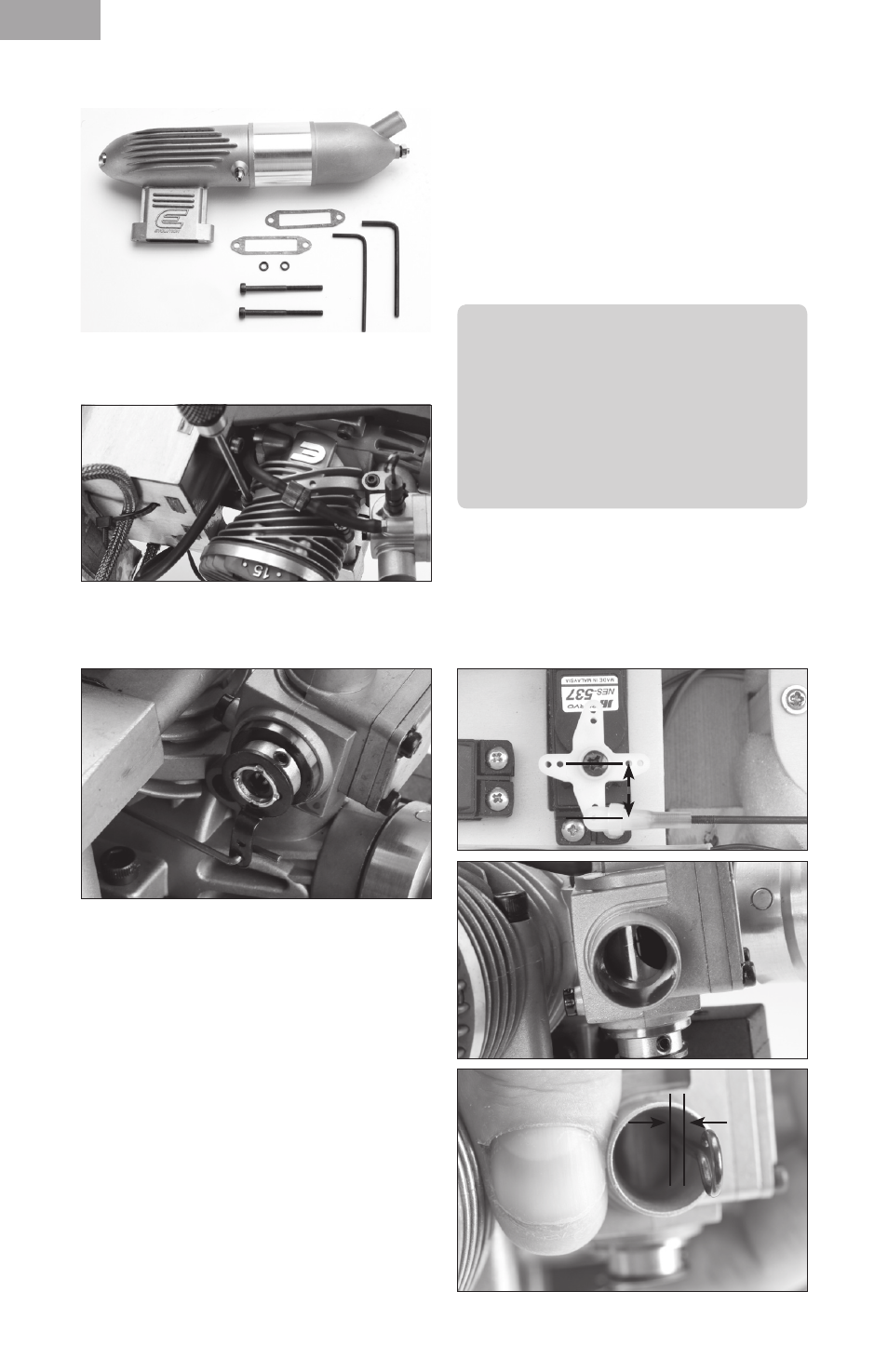

Installing the Muffler
The muffler mounting accessory package
includes mounting screws (2), lock washers
(2), muffler gaskets (2) and L- wrenches (2).
1. Put a lock washer on each of the muffler
screws. Push the muffler screws through
the cylinder head.
2. Place the muffler gasket over the engine
mounting screws.
3. Align the muffler gasket with the exhaust
opening and the muffler mounting screws.
4. Tighten the muffler screws.
IMpORTANT: Tighten the muffler screws after
five tanks of fuel. The muffler screws may
loosen from heat and vibration.
It is important that you tighten the muffler
through bolt after each of the first three,
full tank engine runs. The heat will cause
expansion of the through bolt and muffler
body parts. After the third tightening, no
further muffler loosening should occur.
To tighten the muffler through bolt:
1. Loosen the muffler lock nut.
2. Tighten the muffler through bolt screw.
3. Tighten the muffler lock nut.
Connecting the Throttle Linkage
