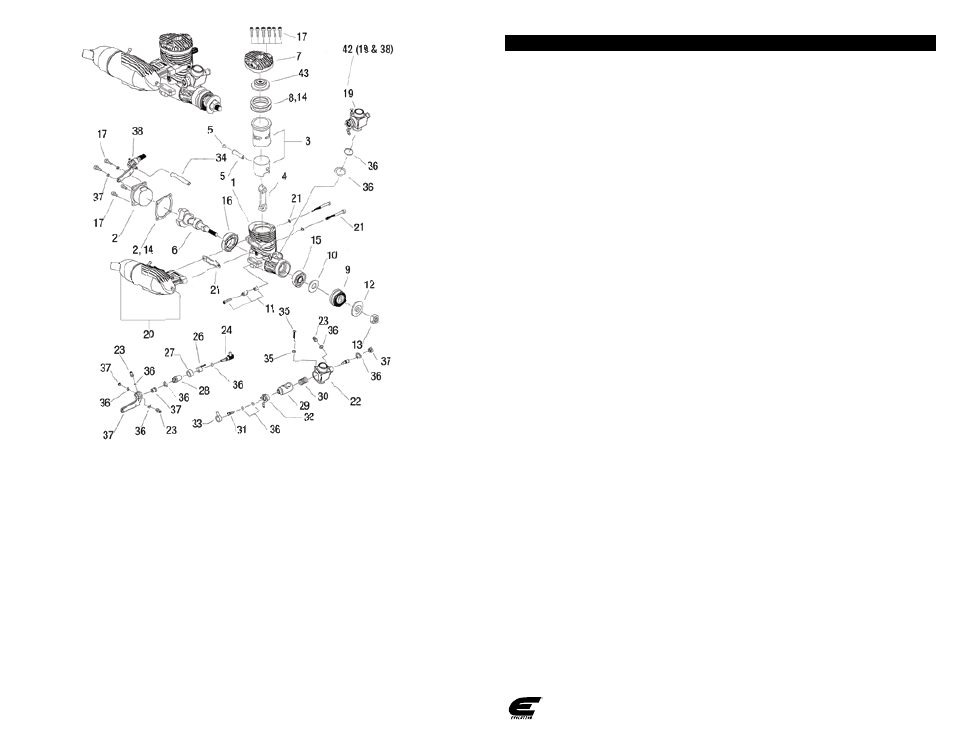

Cross-Reference of Evolution .46 NX Part Numbers
10
No. Description
1 Crankcase
2 Rear Cover with Gasket
3 Piston & Liner Set (ABC)
4 Connecting Rod (Dual Bushing)
5 Wrist Pin w/Clips (Teflon)
6 Crankshaft (1/4 X 28)
7 Head Clamp
8 Cylinder Head Shim
9 Prop Driver
10 Spacer Washer
11 Carburetor Retainer (Drawbar)
12 Prop Washer
13 Prop Nut (1/4 X 28)
14 Gasket Set, Engine
15 Ball Bearing, Front (Rubber Seal)
16 Ball Bearing, Rear (Open Race)
17 Screw Set, Engine
18 Flywheel (Evo-Alpha)
19 Carburetor, Complete
20 Muffler
21 Muffler Mounting Screwset
22 Carburetor Body
23 Fuel Nipple
24 High-Speed Needle Valve
25 Spraybar Bracket (Remote)
26 High-Speed Needle Valve Ratchet
27 Collar w/Setscrew
28 Spraybar (Remote)
29 Throttle Barrel
30 Throttle Barrel Spring
31 Idle Needle
32 Throttle Arm
33 Idle Needle Limit Collar
34 45mm Fuel Tube
35 Idle Needle Stop Screw w/Nut
36 Carburetor Gasket, O-Ring Set
37 Small Parts Set, Carburetor
38 Needle Valve Assembly
43 Head Button
No. Description
1 Crankcase EVO046101
2 Rear Cover w/Gasket EVO100E46D
3 Piston & Liner Set (ABC) EVO046203
4 Connecting Rod Set (Dual Bushing) EVO100204
5 Wrist Pin w/Clips (Teflon) EVO040213
6 Crankshaft EVO046210
7 Head Clamp EVO046103B
8 Cylinder Head Shim EVO040112
9 Prop Driver EVO040219
10 Spacer Washer EVO100219B
11 Carburetor Retainer (Drawbar) EVO100129
12 Prop Washer EVO100220
13 Prop Nut EVO100221
14 Gasket Set, Engine EVO100416
15 Ball Bearing, Front (Rubber seal) EVO100109
16 Ball Bearing, Rear (Open Race) EVO100110
17 Screw Set, Engine EVO100901
18 Flywheel (Evolution) N/A
19 Carburetor Complete EVO100801A
20 Muffler EVO100601
21 Muffl er Mounting Screw Set w/Gasket EVO100E46A
22 Carburetor Body (w/Spraybar) EVO100863
23 Fuel Nipple & Gasket EVO100114
24 High-Speed Needle Valve EVO100829A
25 Spraybar Bracket (Remote) EVO100870A
26 High-Speed Needle Valve Ratchet EVO100833
27 Collar w/Setscrew EVO100834A
28 Spraybar, Remote EVO100830
29 Throttle Barrel EVO100813
30 Spring, Throttle Barrel EVO100814A
31 Idle Needle EVO100844A
32 Throttle Arm EVO100864A
33 Idle Needle Limit Collar EVO100850A
34 45mm Fuel Tube EVO100878A
35 Idle Stop Screw w/Nut EVO100825F
36 Carburetor Gasket/O-Ring Set EVO100E46B
37 Small Parts Set, Carburetor EVO100E46C
38 Needle Valve Assembly EVO046874A
39 Drive Key N/A
40 Sleeve Index Pin N/A
41 Propeller Washer & Nut Set EVO040228
42 Carburetor w/Remote NV Assembly N/A
43 Head Button EVO046128
