How to tell if your glow plug is bad
The glow plugs on the market today are designed
to provide good service to the user and may last a long
time or a short time, all dependent upon the way you
choose to operate your engine.
Physical indications that you might need to
change the glow plug are:
1. Twisted or mangled glow plug element (usually
caused by too high a compression ratio).
2. Small “bumps” are attached to the glow plug
element. This will generally be most noticeable
during the break-in process. These are actually
tiny pieces of aluminum that have attached to the
element and these will severely hinder the operation
of the glow plug.
3. The glow plug element is no longer shiny but is dull,
almost a white powder color. (This just comes with
age and is a by-product of the catalytic reaction.
The shinier the wire, the better the catalytic reaction
can be).
Operating indications that you need to change
your glow plug are:
1. The glow element will not light with a charged glow
igniter. This indicates that there is a physical short
or breakage in the element wire itself.
2. Glow plug lights but the engine will not continue
running once the battery is disconnected. (This is
usually an indication of the microscopic particles
we discussed earlier).
3. Glow plug lights, engine runs but there is a
perceptible loss of rpm at full throttle when the
battery is disconnected. This is a typical indication
that the white powder residue is building to the
point that the catalytic reaction of the glow plug is
no longer anywhere close to being optimum.
Troubleshooting Guide
Engine Won’t Fire
• Glow starter not charged
- Charge glow starter
• Glow plug burnt out
- Replace glow plug
• No fuel is getting to the carburetor
- Check tank, fuel lines reversed
• The starter is reversed
- Reverse the polarity on the starter cables
Engine Quits Repeatedly
• Needles need adjusting
- See adjustment procedure
• Bad or old fuel
- Replace with fresh fuel
• Worn out glow plug
- Replace with new HAN3006 super plug
Engine Runs Inconsistently
• Hole in fuel line
- Replace fuel line
• Bad or old fuel
- Replace with fresh fuel
Maintenance
After each flying session:
1. Fully drain the fuel from the tank.
2. Start the engine and run it until the fuel is
completely run out of the engine.
3. Try starting the engine three more times or until
it will no longer fire. This gets all the fuel out of
the engine.
If the engine will not be used within 10 days, several
drops (about 10) of after run oil (Evolution Engine's
Blue Block Rust Inhibitor) should be applied into the
carburetor and the engine should be turned over for
a few seconds with the starter. This will prevent rust
and corrosion.
If you need additional help or have any questions, please call
Horizon’s Service Center. Horizon has trained technicians who
are qualified to answer your engine questions.
Evolution/Horizon Service Center
4105 Fieldstone Road
Champaign, IL 61822
877-504-0233
Disp Bore Stroke Weight
Crank K
Items
(c.i.) (mm) (mm)
(oz)
(ISO)
Cylinder Propeller
EVOE0360
.354" .806"
.695"
10.3
1/4X28
ABC
9X6
EVOE100
.455" .867"
.771"
16.32
1/4X28
ABC
EVOE100P
EVOE0400
.392" .805"
.771"
14.08
1/4X28
ABC
10X6
EVOE0460
.467" .864"
.797"
13.76
1/4X28
ABC
11X6
EVOE0520
.520" .882"
.847"
14.72
1/4x28
ABC
11X6
EVOE0610
.608" .944"
.862"
20.1
5/16 X 24
ABC
12X6
EVOE1100
1.005" 1.14"
.985"
23.2
5/16X24
ABC
14X6

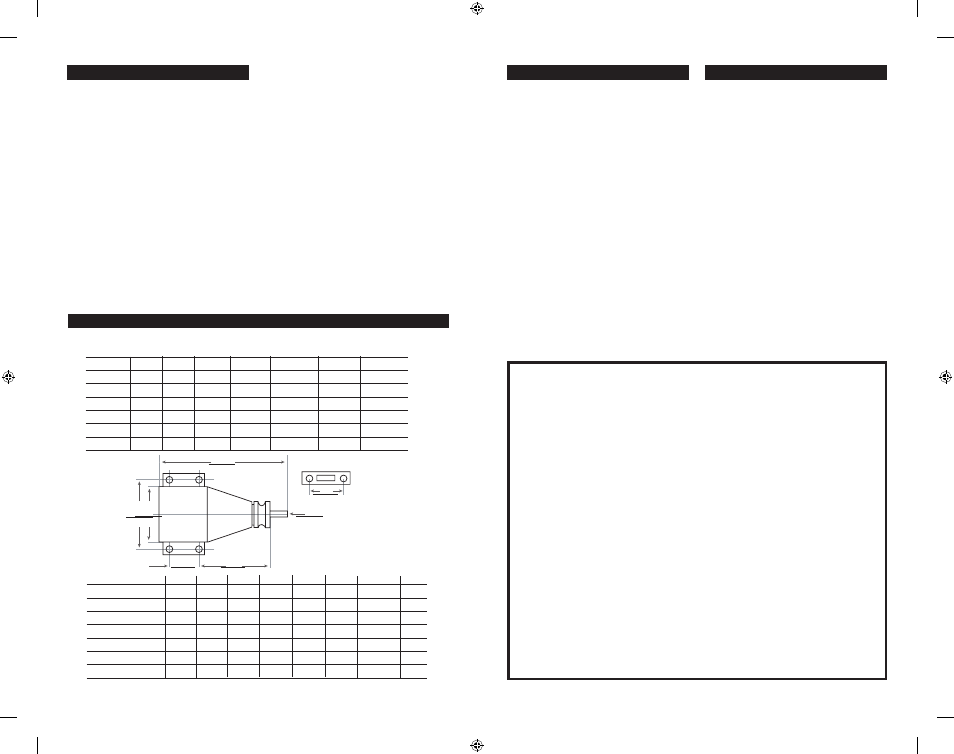

NT/NX Evolution
®
Engines Specifications
Dimensions(mm)
A
B
C
D
E
F
G
H
EVOE0360
30
38
15
47
78
108
1/4X28
37
EVOE100
36
44
17.5
52.5
90.5
108
1/4X28
37
EVOE0400
36
44
17.5
52.5
90.5
108
1/4X28
37
EVOE0460
36
44
17.5
52.5
90.5
108
1/4X28
37
EVOE0520
36
44
17.5
52.5
94
110
1/4X28
37
EVOE0610
42
55
25
55
100
133
5/16x24
42
EVOE1100
44
52
25
64.6
92
139.7
5/16x24
42
F
H
G
A
D
C
E = height
F = length
G = crankshaft thread size
H = muffler bolt spacing
B
Evolution
®
Engines 2-Year Warranty
This Evolution Engines product is guaranteed to be
free from defects in materials and workmanship
for a period of 2 years from the date of purchase by
the original owner. This warranty is not transferable.
Horizon Hobby reserves the right to inspect any and
all equipment involved in a warranty claim. Repair or
replacement decisions are also determined by Horizon
Hobby, Inc. Collateral damage of any type is not
covered under this warranty.
This warranty does not cover any component parts
damaged or changed by modification. In no case shall
Horizon Hobby or Evolution Engines liability exceed the
original cost of the engine.
This warranty does not apply to wear from normal use;
damage or defects resulting from misuse, neglect or
abuse; damage caused by customer disassembly,
use of substandard fuel, use of incorrect accessories
(spark plug, propeller, etc.); or damage resulting
from a crash, or any use of this engine other than for
which it is specifically intended. Any of the above will
automatically void the warranty of the engine.
In that Horizon Hobby has no control over the final
installation and use of this product, the materials used
in installation, or the product in which this engine is
installed, no liability shall be assumed nor accepted for
any damage resulting in the use of this product once it
is installed. By the act of using the installed product,
the user accepts all resulting liability. If the buyer is
not prepared to accept the liability associated with
the installation and/or use of this product, the buyer is
advised to return the engine immediately in new and
unused condition to the place of purchase.
Should your engine require warranty or non-warranty
repair service, please package it carefully and return it
to the address below, along with a copy of the original
invoice or receipt and a detailed letter explaining the
problems. Write your name, address and daytime
phone number clearly on the letter and return it via
FedEx, UPS or insured Parcel Post (Evolution Engines
will not be responsible for product lost en route).
For repairs not covered under warranty, please specify
in your letter whether you want an estimate of the
repair charges prior to performing the service (which
may cause a slight delay). Payment for non-warranty
repairs should be made by credit card or money order.
If you have any questions concerning this or other
Evolution products please contact the Horizon Product
Support Team at 877-504-0233.
Evolution/Horizon Service Center
4105 Fieldstone Road, Champaign, IL 61822
877-504-0233
