Mounting Instructions MODEL 3110B BICONICAL ANTENNA
2 © EMC TEST SYSTEMS, L.P. – MARCH 2002
REV F – PN 399108
Step 3. Repeat Steps 1 and 2 with the other washer and biconical
element .
Now you are ready to mount the antenna on a tripod for
testing.

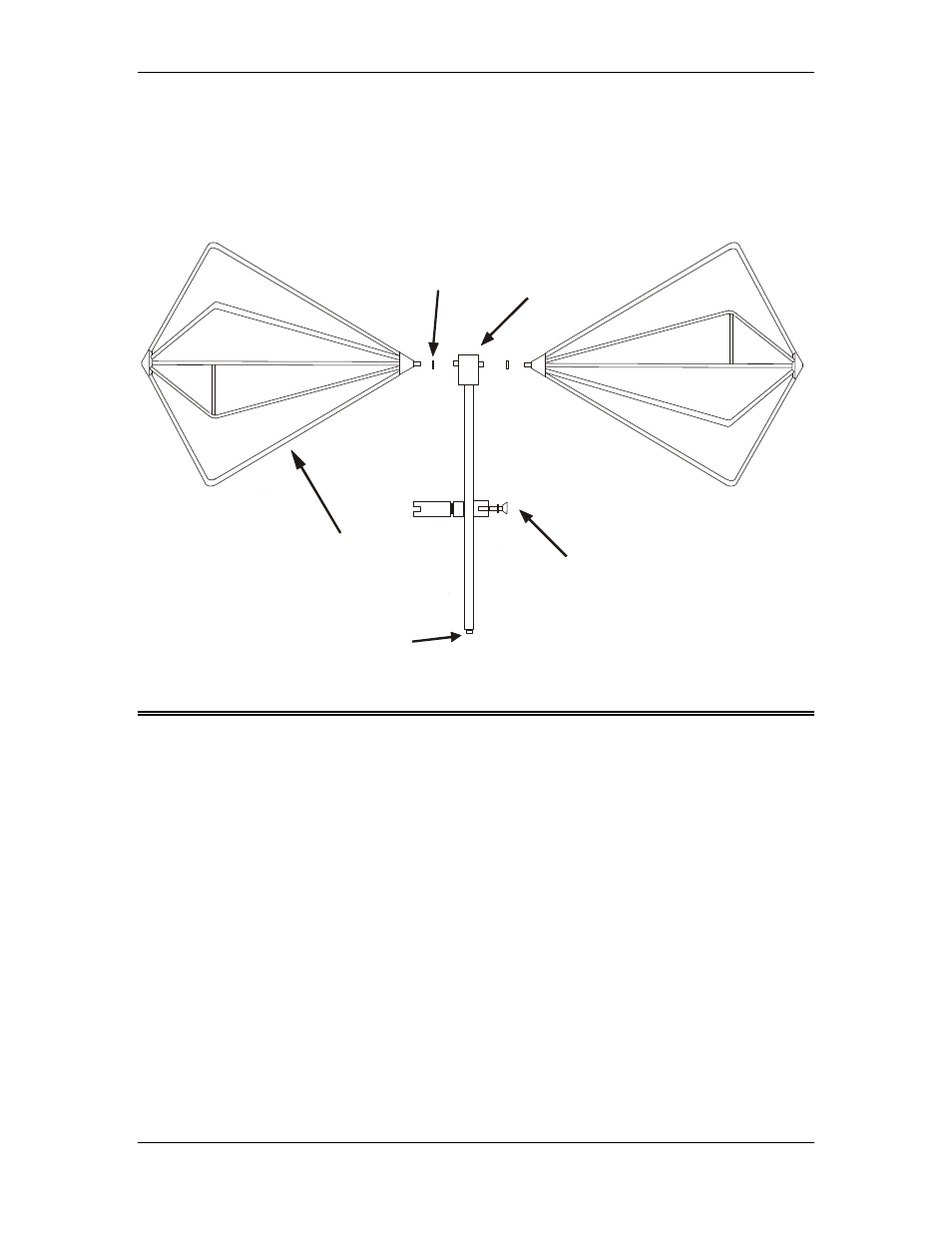

Belleville Washer
Balun
Clamp (Open Position)
Biconical Element
Output Connector
MOUNTING INSTRUCTIONS
The mounting clamp of the Model 3110B uses standard
7/8x14 threads and comes with a 1/4x20 thread adapter for
versatility when connecting to an ETS tripod or most other
tripods for support.
After the mounting clamp is attached to a tripod, unscrew
the latch and open the clamp. Insert the balun of the 3110B
into the clamp and close the top over the balun. Move the
screw latch to the closed position and tighten, so the balun
is held securely. The cable can now be attached to the
output connector.
