ETS-Lindgren 3103 Conical Log Spiral Antenna - Manual (Page 17)

www.ets-lindgren.com Mounting Instructions 17
M ODEL 3102
To use the included adapters to mount the Model 3101 to a 4-TR Tripod, a
7-TR Tripod, or a mast:
Do not cross thread any connections or permanent could occur.

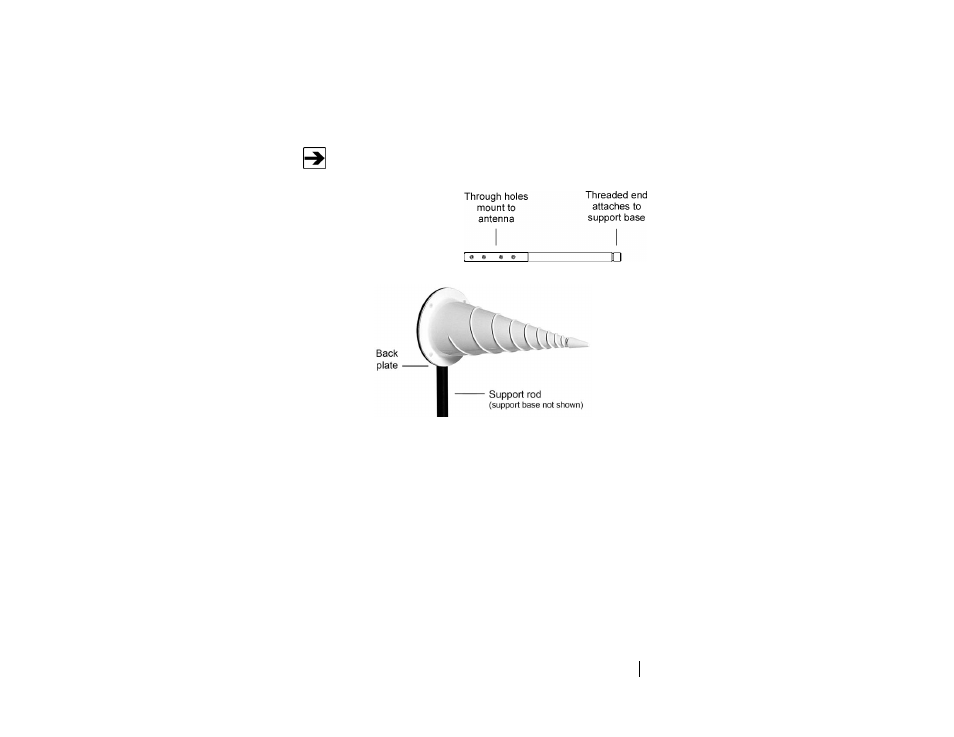

1. Align the through holes
on the support rod with
the back plate of the
antenna.
2. Insert the mounting screws (included) into the through holes and back plate.
Tighten to secure the rod into place. Do not over tighten.
3. Attach the support base to the 4-TR, 7-TR, or mast.
