EFCO CORPORATION 6/8/2012 PART NO. YW42 Page 9 of 13
TERRASTILE DOOR INSTALLATION INSTRUCTIONS

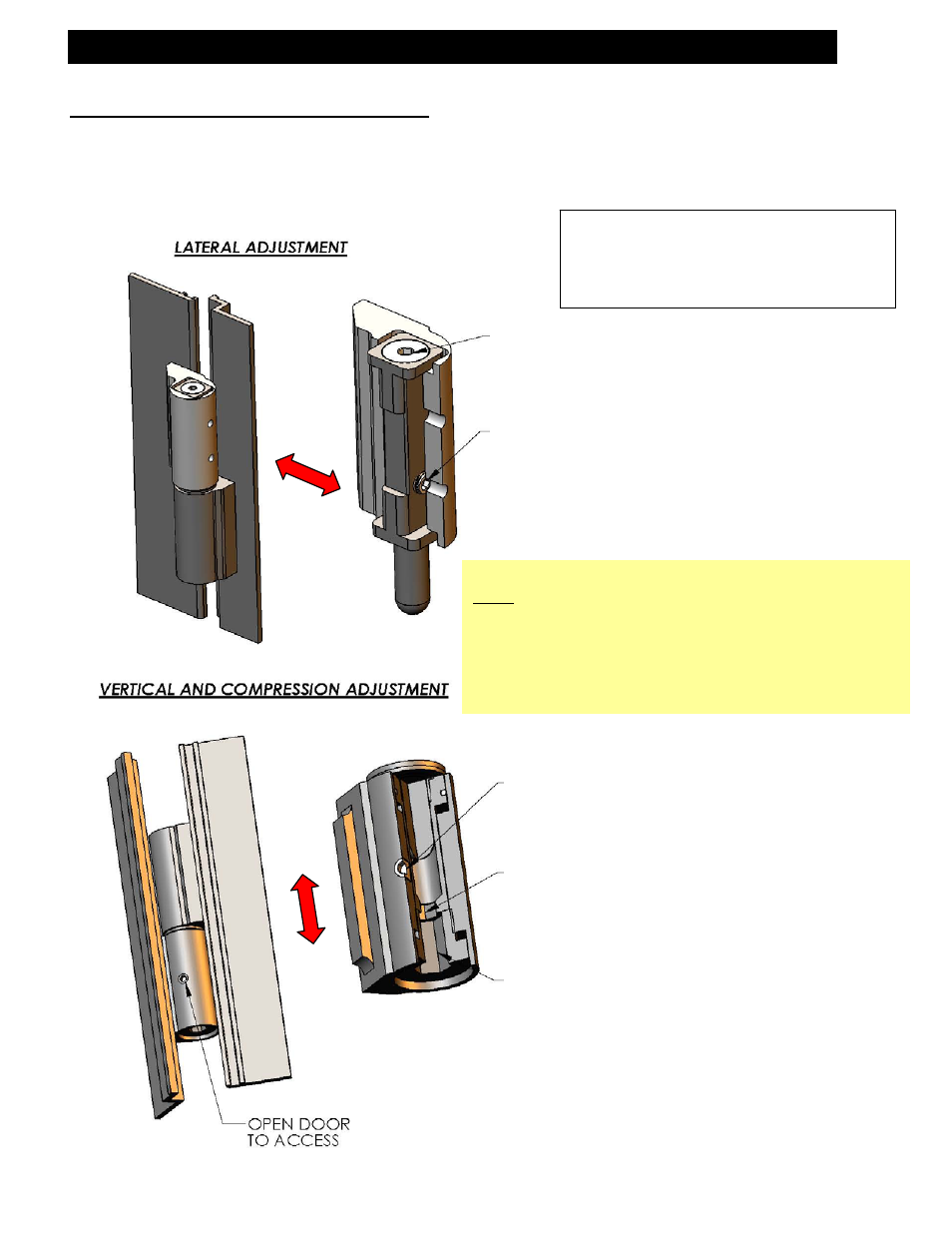

SECTION II: Hinge Adjustment
Instructions for TerraStile
®
doors if equipped with adjustable hinges. Adjustments to the door leaf can be
made in all directions (lateral, vertical, and compression).
Vertical and Compression Adjustment:
1) Open door to access and using 1/8” hex
wrench, loosen collar lock screw.
(1 turn max.)
2) Using 1/4" hex wrench up inside, adjust
hinge collar assembly to desired
compression by rotating off centered cam.
(+/- .020 possible adjustment)
3) Using 3/8” hex wrench, adjust collar screw
to desired vertical location. (+/-.093
possible adjustment)
4) Retighten collar lock screw.
Note: When making vertical and compression
adjustments, you must loosen the collar locking screws
on all hinges prior to adjusting, and make sure all collar
screws are snug prior to tightening the collar lock screw.
Lateral adjustments can be made individually.
1) Using a 5/32” hex wrench,
break free this pin screw.
Do not loosen the pin screw.
2) Using a 1/8” hex wrench, adjust the set
screw to the desired lateral location (+/-
.070 possible adjustment.
3) Retighten the pin screw that
was broke free in Step 1.
Adjustment
+/- .070
Adjustment
+/- .093
Lateral Adjustment: Side to Side
Vertical Adjustment: Up and Down
Compression Adjustment: The amount of
compression on the weatherstrip.
