SERIES 5600 CENTER TONGUE SUNSHADE CLIP INSTALLATION MANUAL 6/2012
EFCO CORPORATION
PART #YWSS Page 15 of 19
SECTION IX: SUNSHADE ATTACHMENT
This particular sunshade is designed to attach one sunshade at a time. Continue with the sunshade attachment
down the sunshade run.
There will be six sunshade arm attachment holes in the sunshade clip. Be sure that the three holes in the
sunshade arm are in the correct location with the sunshade clip for proper alignment of the sunshade arms.

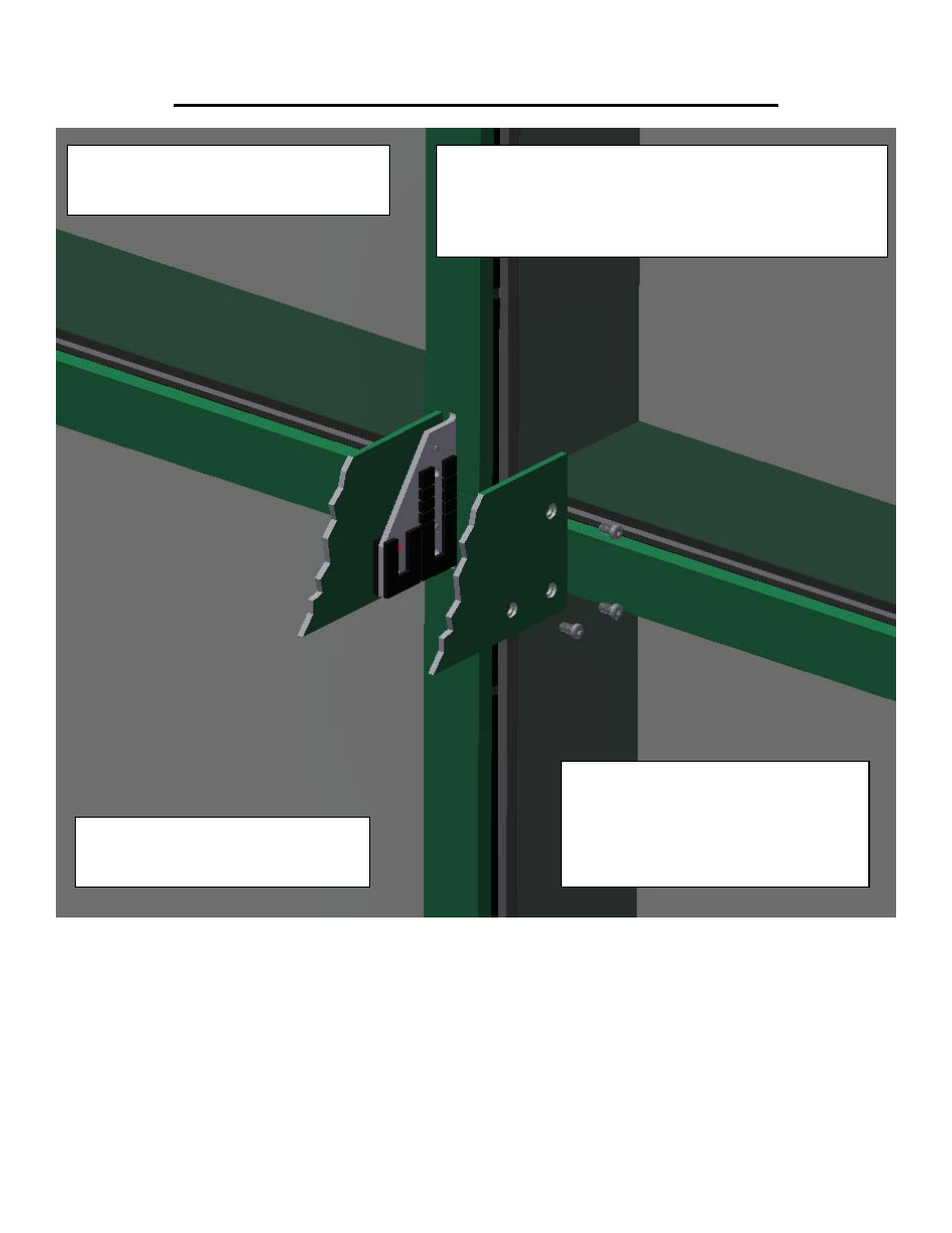

“SANDWICH” THE SUNSHADE
CLIP WITH A PAIR OF SUNSHADE
ASSEMBLIES.
CONTINUE WITH SUNSHADE
ATTACHMENTS DOWN THE LENGTH
OF THE SUNSHADE RUN.
EFCO DESIGNS THE SUNSHADE
ATTACHMENT TO REQUIRE
MINIMAL SHIMS. HOWEVER, POLY-
SHIMS WILL NEED TO BE INSERTED
AS REQUIRED BETWEEN THE CLIP
& THE SUNSHADE ARM.
LOOSELY TIGHTEN THE ATTACHMENT BOLTS UNTIL
THE FULL RUN IS IN PLACE. ALIGNMENT OF THE
SUNSHADE “LADDER” SECTION MUST BE COMPLETED
ONE SECTION AT A TIME BEFORE THE BOLTS ARE
TIGHTENED TO A NOMINAL 80 IN-pounds.
