Channel Vision IR-5000 - Manual

Be sure the emitter is attached directly over the component’s IR receiver.
To locate the IR receiver, shine a flashlight into the unit and look for the
sensor.
How IR repeating works
A B -5 00
T x B at t
R ew < <
P la y>
F F > >
L ea rn
S to p
P au se
1
2
3
4
5
6
7
8
9
0
P o w er
-/ --
C h
Vo l
L ea rn E rr o r
A ll O ff
O ff
S el ec t
Tu n er
C D
S at
V C R
D V D
T V
Channe
l Vis io n TM
Point an
IR remote control
at the IR receiver
The IR receiver is wired to
the IR hub which routes the
signal to IR emitters
CD player
And the emitter
repeats the IR signal
in front of the component.
Specifications
Specifications: (typical)
Power Supply Voltage:
IR Freq. range supported:
IR pickup range:
IR receiver head dimensions:
IR emitter outputs:
Color:
8 - 12 VDC
30 kHz - 60 kHz
40 ft. @ 38kHz, 25 ft. @ 56kHz
0.65” x 0.35” x 0.25”
4
Black
Specifications subject to change without notice.
CHANNEL VISION
Limited Warranty
Channel Vision Technology will repair or replace any defect in material or
workmanship which occurs during normal use of this product with new or rebuilt
parts, free of charge in the USA, for two years from the date of original purchase.
This is a no hassle warranty with no mail in warranty card needed. This warranty
does not cover damages in shipment, failures caused by other products not
supplied by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only to the
original purchaser, and a purchase receipt, invoice, or other proof of original
purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-
0288 toll free. A Return Authorization number must be obtained in advance and
can be marked on the outside of the shipping carton.
This warranty gives you specific legal rights and you may have other rights
(which vary from state to state). If a problem with this product develops during or
after the warranty period, please contact Channel Vision Technology, your dealer
or any factory-authorized service center.

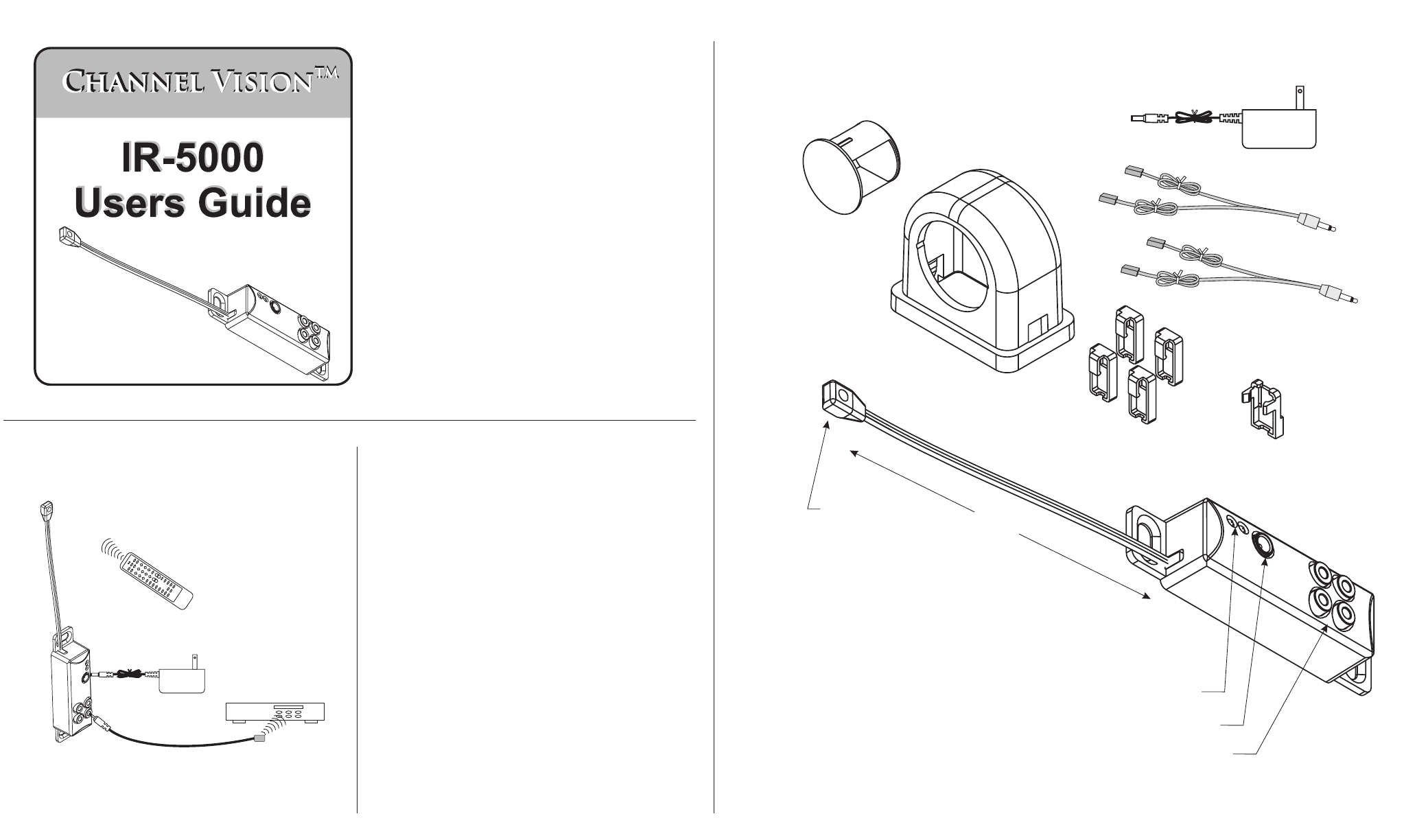

The IR-5000 includes these items:
500-149 rev B
LED Status indicators:
Power and IR data
4 - IR emitter holsters
2 - IR-3002 emitters
Power supply
1 - IR receiver holster
1 - hole mount
1 - tabletop mount
IR receiver head
4 IR emitter outputs
DC Power input
36”
Features:
!
!
!
!
Plasma Proof IR receiver
4 IR emitters
Status LEDs for power and IR signal indication
Versatile mounting accessories included
