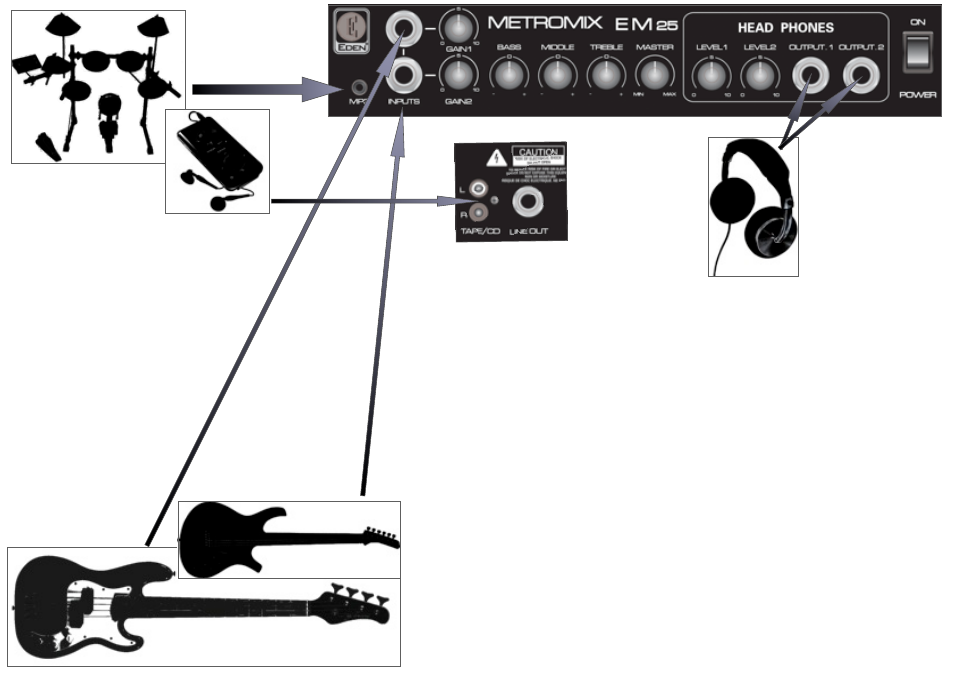

STEREO MEDIA -or
Electronic DRUM
- insert into 1/8” Stereo
Media Input or Stereo
RCA Jacks via Tape/CD
input on rear of unit.
- Blend sound and control
volume of these inputs
with the onboard output
volume of the Media
Player/Audio Device -or-
1/4”
INSTRUMENT
INPUTS with
separate volume.
(2) 1/4” Stereo
Headphone
Jacks with
separate
volumes
1. Instrument One Volume/Gain control - Turn to the right to increase volume of
Instrument One Input.
2. Instrument Two Volume/Gain control - Turn to the right to increase volume of
Instrument Two Input.
3. Bass Equalization knob - controls low frequency response for both Gain 1 & Gain
2 inputs.
4. Middle Equalization knob- controls midrange frequency response for both Gain 1
& Gain 2 inputs.
5. Treble Equalization knob- controls high frequency response for both Gain 1 &
Gain 2 inputs.
6. Master Volume- Controls output/volume emanating from internal speaker *turn this
to the left/off when using headphones for silent operation*
7. Headphone Level 1 - Controls headphone volume for Headphone Output .1
8. Headphone Level 2 - Controls headphone volume for Headphone Output .2
9. Power Switch - on/off
10. Tape/CD - Stereo RCA jack inputs for consumer level audio devices - *input/mix
volume must be controlled by outboard media device*
11. Line Out - Stereo 1/4” output - *overall mixed signal of all inputs*
REAR PANEL
