Code 3 LFAMP - Manual (Page 5)

5

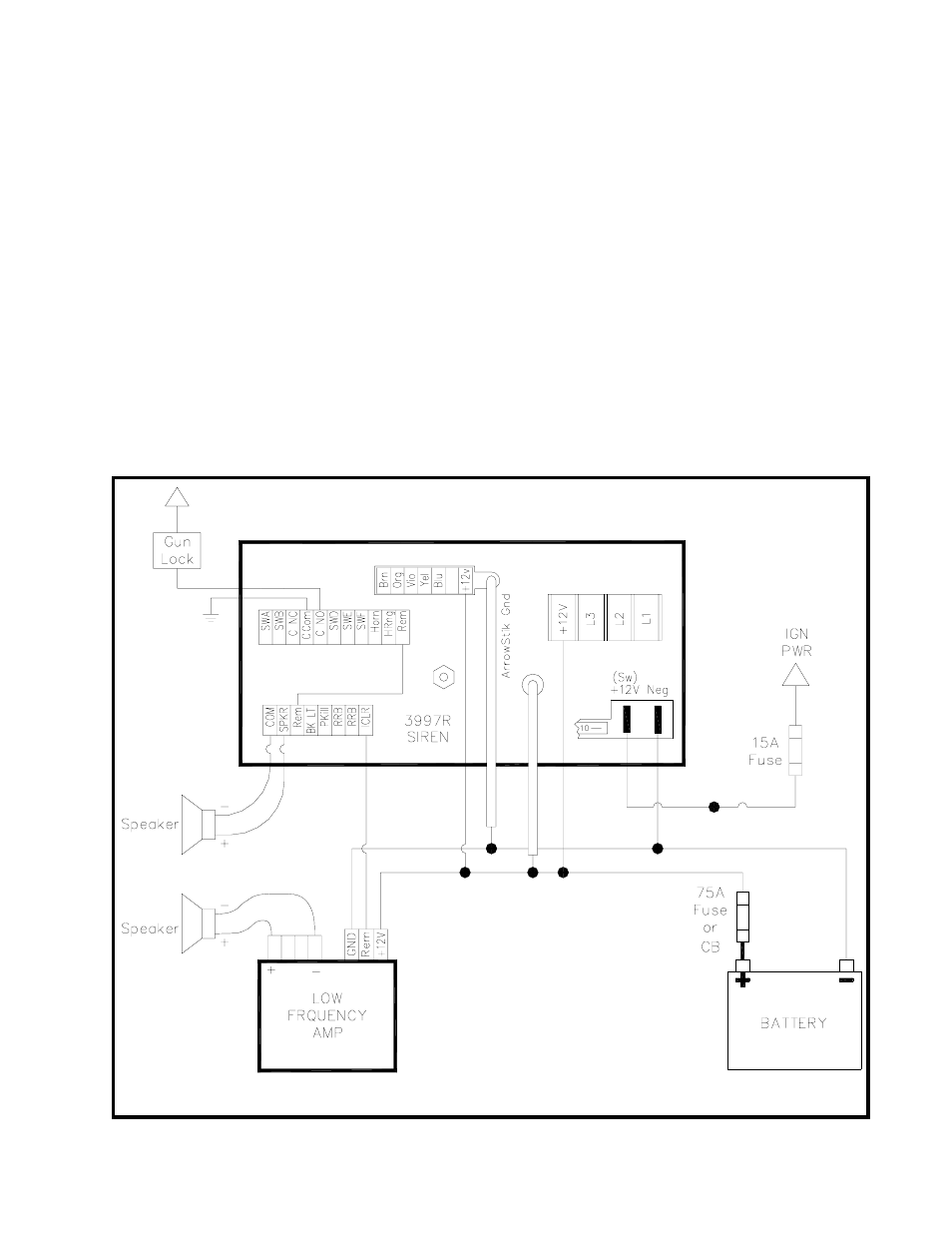

Figure 2, Wiring Diagram, Typical Connections
for RLS Amplifier Shown
Specifications
Input Voltage - 10.5 to 16 VDC, negative ground (earth)
Operating Current 100W: 15A Peak @ 13.6V with one 11-ohm load*
Power: 100W / 200W Peak (1 or 2 C3100 Speakers)*
Duty Cycle: 50% (Max continuous on time - 60 seconds).
Voltage Output ( approx. ) 64 V peak-to-peak
Weight: 4.4 lbs (2 Kg)
Size: - 10.5" L x 6.0" W x 2.5" H
Temperature: -22°F - +149°F (-30°C - +65°C) SAE Equipment Type EVS1
* The LFAMP requires the use of special
Code 3 ® C3100LF speakers. Do not use standard siren speakers.
