RZR 900 Control Box Installation
Page 2 of 4
4/25/13 www.boondockers.com

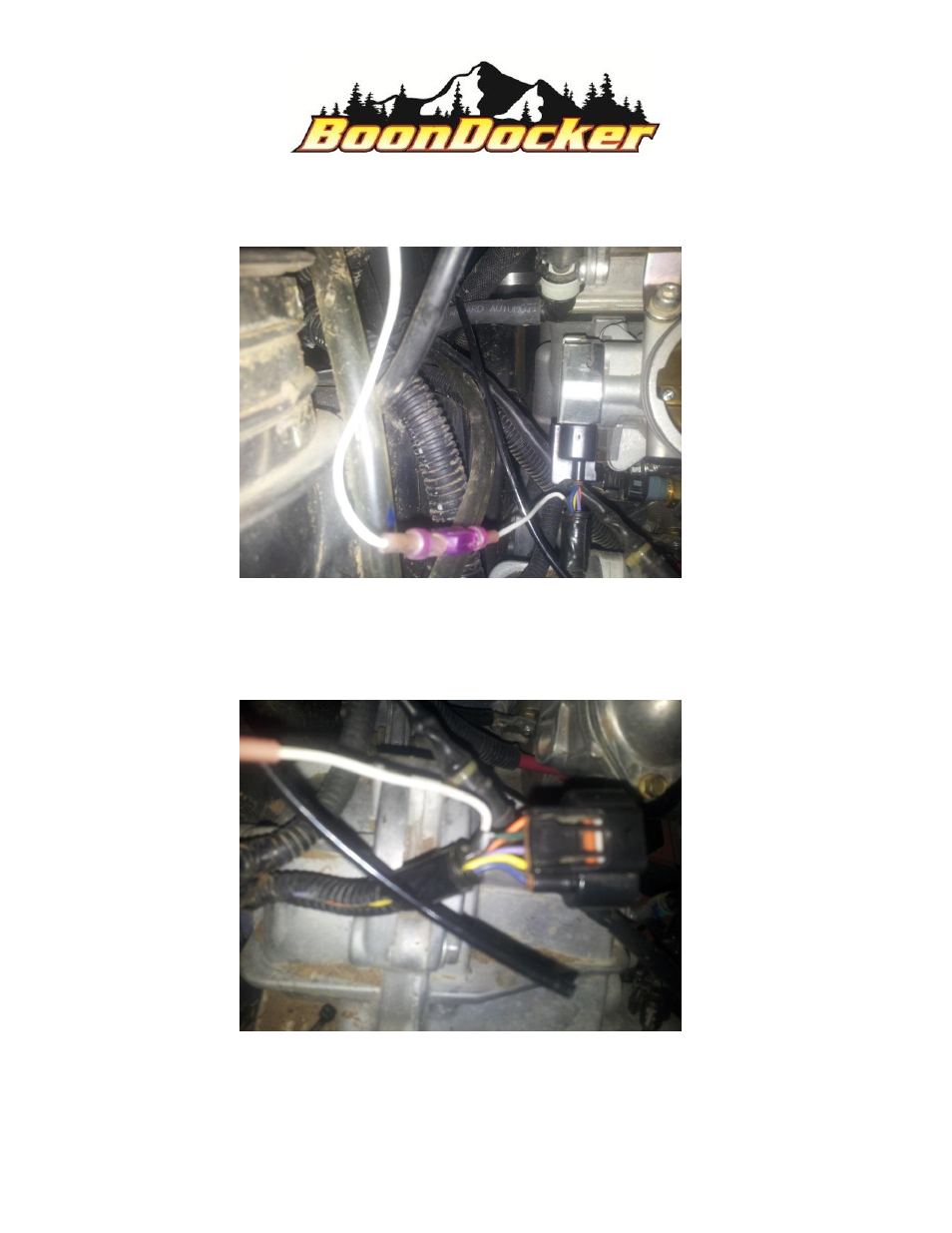

1. Locate the Throttle Position Sensor Connector.
2. It is a 5 position connector located on the Clutch side of the Throttle Body.
3. Tap the White wire to the Green Wire on TPS connector using supplied Heat Shrink Butt
Connector. Shrink the ends using a heat gun.
