PCIe passive adapter User’s Manual
Page 5
FAE2009PE4L_1.0 ©2009 Bplus Technology

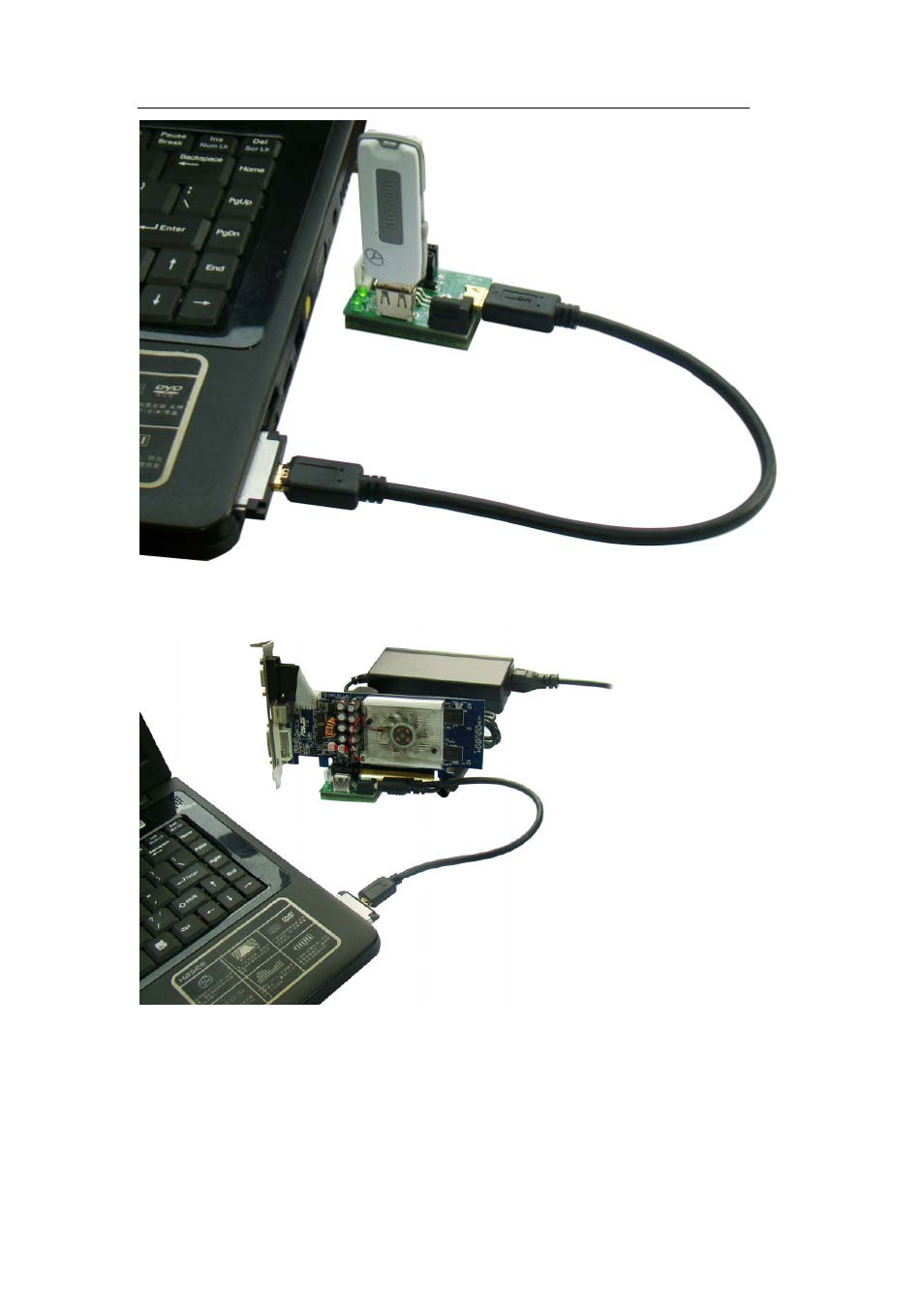

If PCIe card work needs 12V, please using 12V DC adapter, please refer to
below photo.
z
PE4L+EC2C using with PCIe_3.3V from external DC
JUMP state: JP3 close, JP4 open
First, use Flobby cable connected PE4L with external DC device.
