PCIe passive adapter User’s Manual
Page 3
FAE2009PE4H_1.1 ©2009 Bplus Technology
z

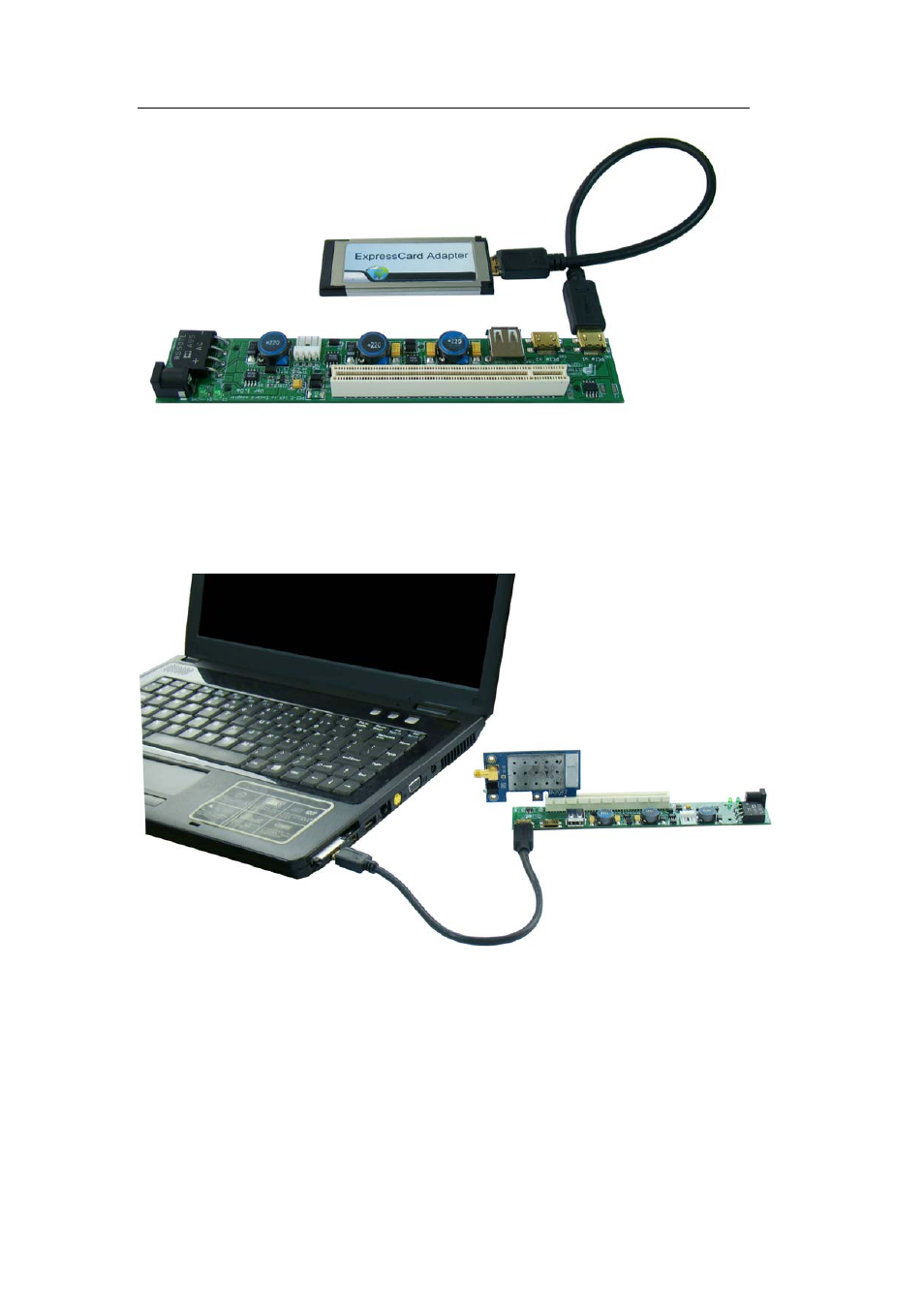

PE4H+EC2C using with PCIe_3.3V from
PC
1. plug PCIe 1X card into PCIe slot
2. Plug EC2C into PC Expresscard slot.
z
PE4H+EC2C using with PCIe_3.3V from external DC
1.
External DC with 15V~20V adapter
