6
Hardware Installation and I/O Pin Assignment
1. Connect a power adapter and IP camera to PC or local network.
2. 3-Axis Gimbals Adjustments
Once the users open the case, the gimbals adjustment offers the convenience method to install on
the wall. The pan, tilt, and rotation are provided in this model. The users can adjust the
gimbals with Pan 175 degrees, tilt 75 degrees, and rotation 180 degrees respectively.

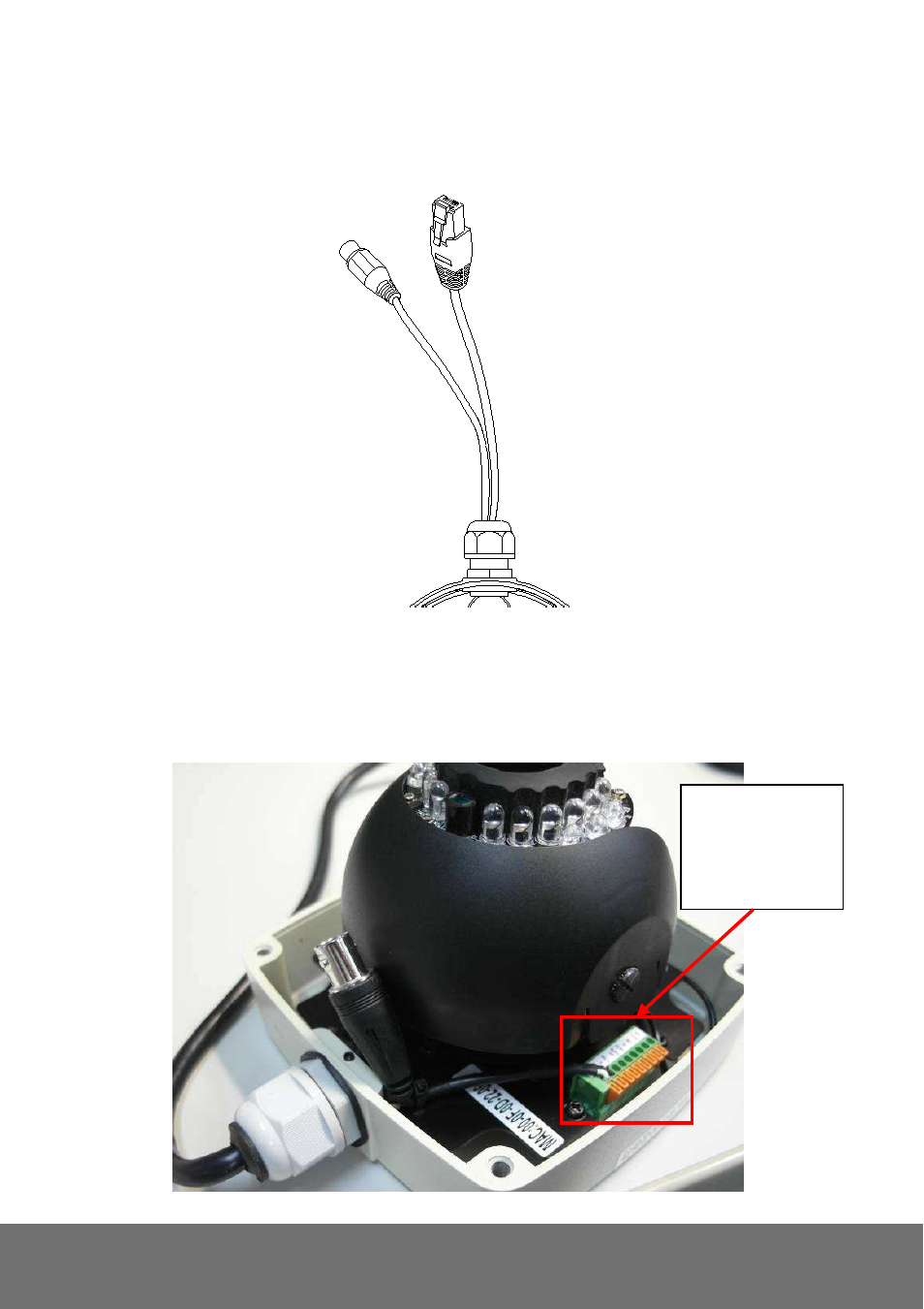

3. I/O Interface
DI/DO
Audio Output
MIC IN
Video Out (BNC)
