Hardware Installation and I/O Pin Assignment
1. Connect a power adapter and IP camera to PC or local network.
2. 3-Axis Gimbals Adjustments

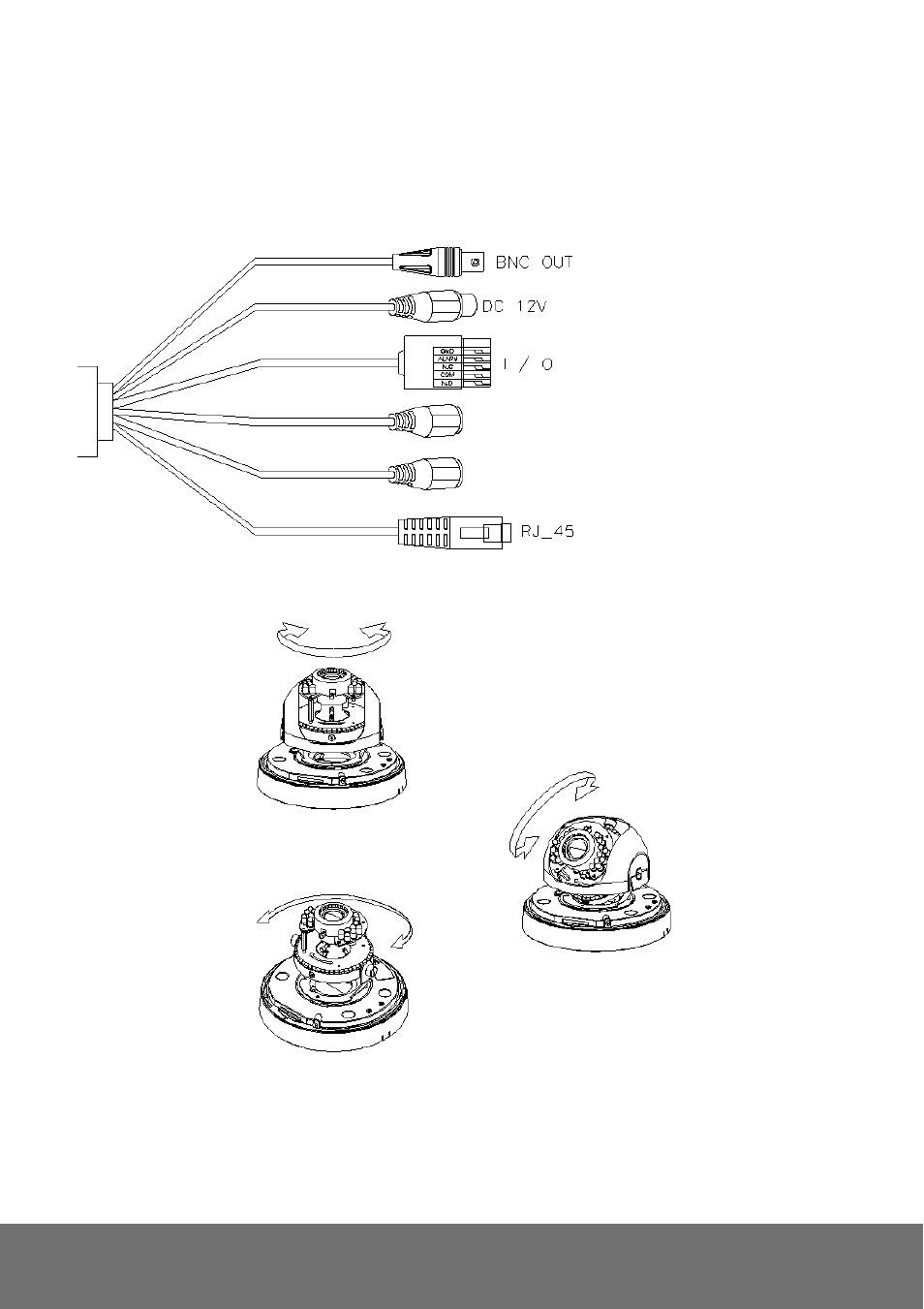

Once the users open the case, the gimbals adjustment offers the convenience method to install on
the wall. The pan, tilt, and rotation are provided in this model. The users can adjust the
gimbals with Pan 172 degrees, tilt 30~90 degrees, and rotation 180 degrees respectively.
3.5mm Phone Jack (Audio Input, Red)
3.5mm Phone Jack (Audio Output, Green)
Pan: 172°
Rotation: 180 °
Tilt: 30°~90°
