24

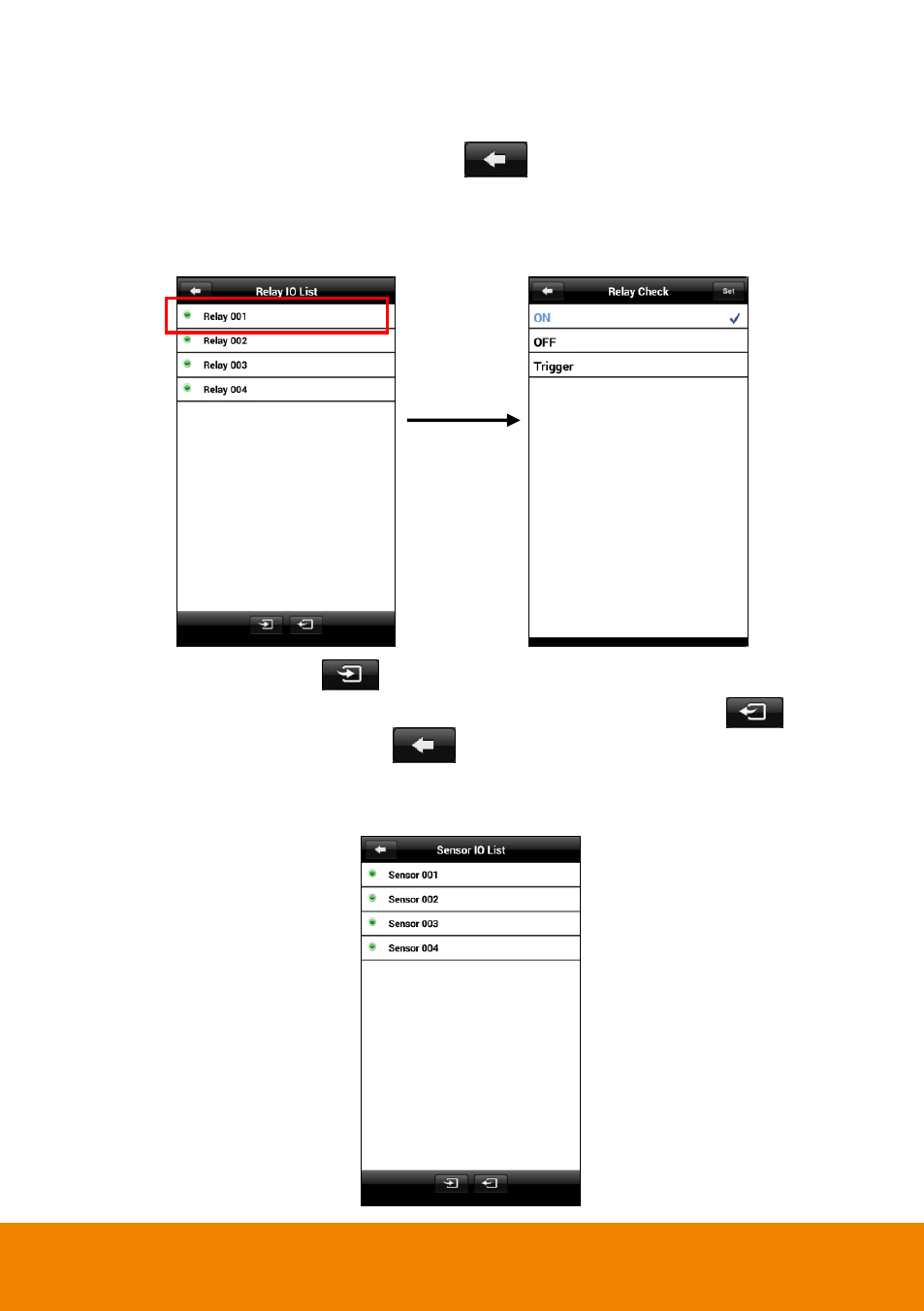

4. In Relay IO List page, user can select the relay and change relay status. In Relay Check page,
user can change relay status to ON, OFF, or Trigger. After select the status, select Set button to
confirm and back to Relay IO List page. Select button will return to Relay IO List page
and doesn ’t save the change.

Greed color: Relay status is OFF.

Red color: Relay status is ON or Trigger.
5. In Relay IO List page, select button can switch to Sensor IO List screen.
6. In Sensor IO List page, user can view the current sensors status only. Select the button to
switch to Relay IO List screen. Select button will return to Live mode.

Greed color: Sensor status is low.

Red color: Sensor status is high.
