AVer F50HD quick guide User Manual
Page 2

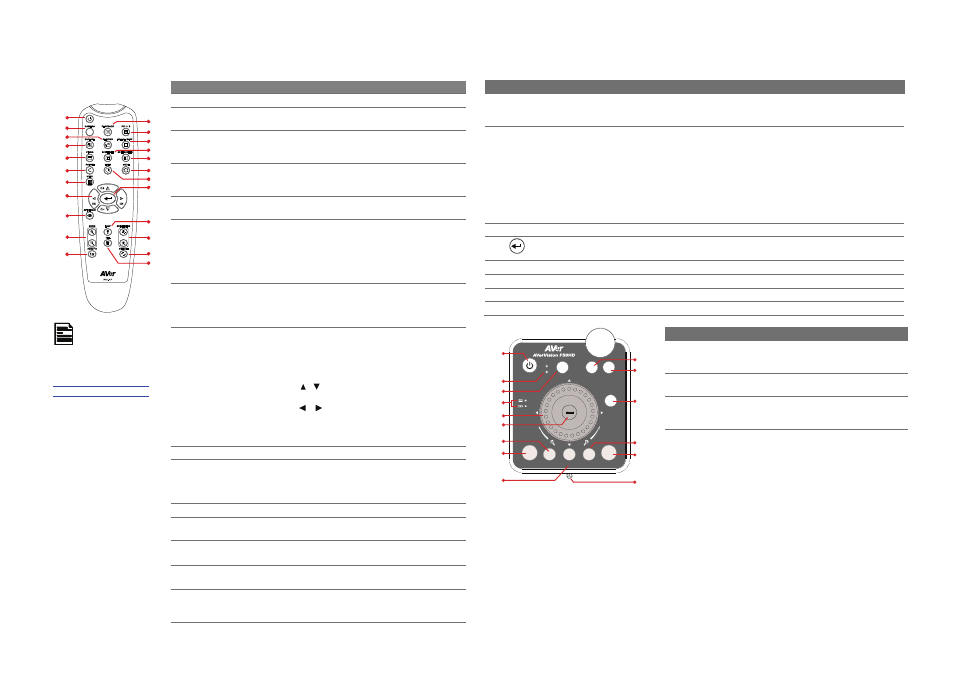

Remote Control
The remote control requires two (2) “AAA” size batteries (supplied), make sure batteries are installed
properly before use.
Name
Name
Function
A PDF version of our
Reference Manual is available
for download from the
following link:
http://www.averusa.com/
presentation/support.asp
(1) POWER
Turn the unit on/standby.
(2) CAMERA
Camera mode displays the video signal from
the built-in camera.
(3) RECORDING
Start/Stop audio & video recording. Video
recording can only be saved either in a SD
memory card or a USB flash drive.
(4) CAPTURE
Capture still image in Camera mode. In
continuous capture mode, press this button again
to stop.
(5) Visor
Cover part of the presentation screen and allow
presenter to reveal the material as desire.
(6) ROTATE
Rotate the image by 90° in Camera mode and
Playback mode.
Divide the screen into two. One side displays the
live image from the built-in camera and the other
side displays 8-thumbnail size picture/video from
the memory.
(7) MENU PIP
Open and exit the OSD menu.
Show a thumbnail size captured picture/video
from the memory at the corner of the screen in
Camera mode.
(8)
- Pan the image when image is above 10X zoom
in live mode or in playback captured image
mode.
- Move the selection in Playback mode and in
OSD menu.
- Use & to increase and decrease the video
playback volume.
- Use & to play the video backward and
forward.
- Move the Spotlight frame and Visor screen
cover.
(9) AUTO FOCUS
Adjust the focus automatically.
(10) ZOOM +/-
‐ Increase/decrease the image magnification in
camera and picture playback mode.
‐ Use to easily page up and page down 16-
thumbnail picture preview.
(11 ) ZOOM RESET
Reset zoom level to 100%.
(12) PLAYBACK
View the captured picture/video from the memory
in 16-thumbnail images.
(13) PC 1/2
PC mode displays the video signal from the RGB
INPUT port of F50HD.
(14) FREEZE / STOP - Freeze live images.
- Stop video playback.
(15) SPOTLIGHT
Call the Spotlight submenu. Spotlight overlays a
box frame on the presentation screen. You can
adjust the box size and move it around.
Name
Function
(16) SPLIT SCREEN
Divide the screen into two. One side displays the live image from the built-in
camera and the other side displays 8-thumbnail size picture/video from the
memory.
(17) MODE
Select from 6 type of modes:
Sharp - adjust the contrast along the edges making text appear more visible.
Graphics - adjust the gradient of image.
Motion - increase frame rate. Sufficient lighting is required when using this
mode.
Microscope - automatically adjust optical zoom for microscopic viewing.
*Macro - set to view when object is only 5 – 20 cm away from the camera.
*Infinite - set to view when subject is at least 55cm away from the camera.
(18) TIMER
Start/Pause/Stop the timer countdown and set the timer duration.
(19)
‐ Make a selection in Playback mode and OSD menu.
‐ Play/Pause video playback
(20) LAMP
Turn the overhead light on/off.
(21) BRIGHTNESS +/-
Adjust the brightness.
(22) DEFAULT
Reset at factory default setting.
(23) DEL
Delete the selected picture/video in Playback mode.
Name
Function
(24) OUTPUT LED
Indicate the TV-RGB switch
selection to which port the video
signal is sent out.
(25) USB Switch LED
Indicate the USB switch selection
to which USB port is activated.
(26) Built-in MIC
Record audio when recording
video clip. The recorded sound will
be in monophonic.
(18)
(14)
(11)
(7)
(8)
(5)
(2)
(1)
(22)
(13)
(4)
(3)
(15)
(12)
(17)
(23)
(20)
(19)
(9)
(6)
(16)
(10)
(21)
▲,▼,◄, & ►
OUTPUT
RGB
TV
MENU
FREEZE
ROTATE
CAP / DEL
LAMP
POWER
RECORDING
PLAYBACK
CAMERA / PC
AUTO FOCUS
(24)
(1)
(25)
(8/10)
(19)
(14)
(7)
(6)
(3)
(4/23)
(26)
(20)
(9)
(12)
(2)
P/N: 300AP0G7-DW4
