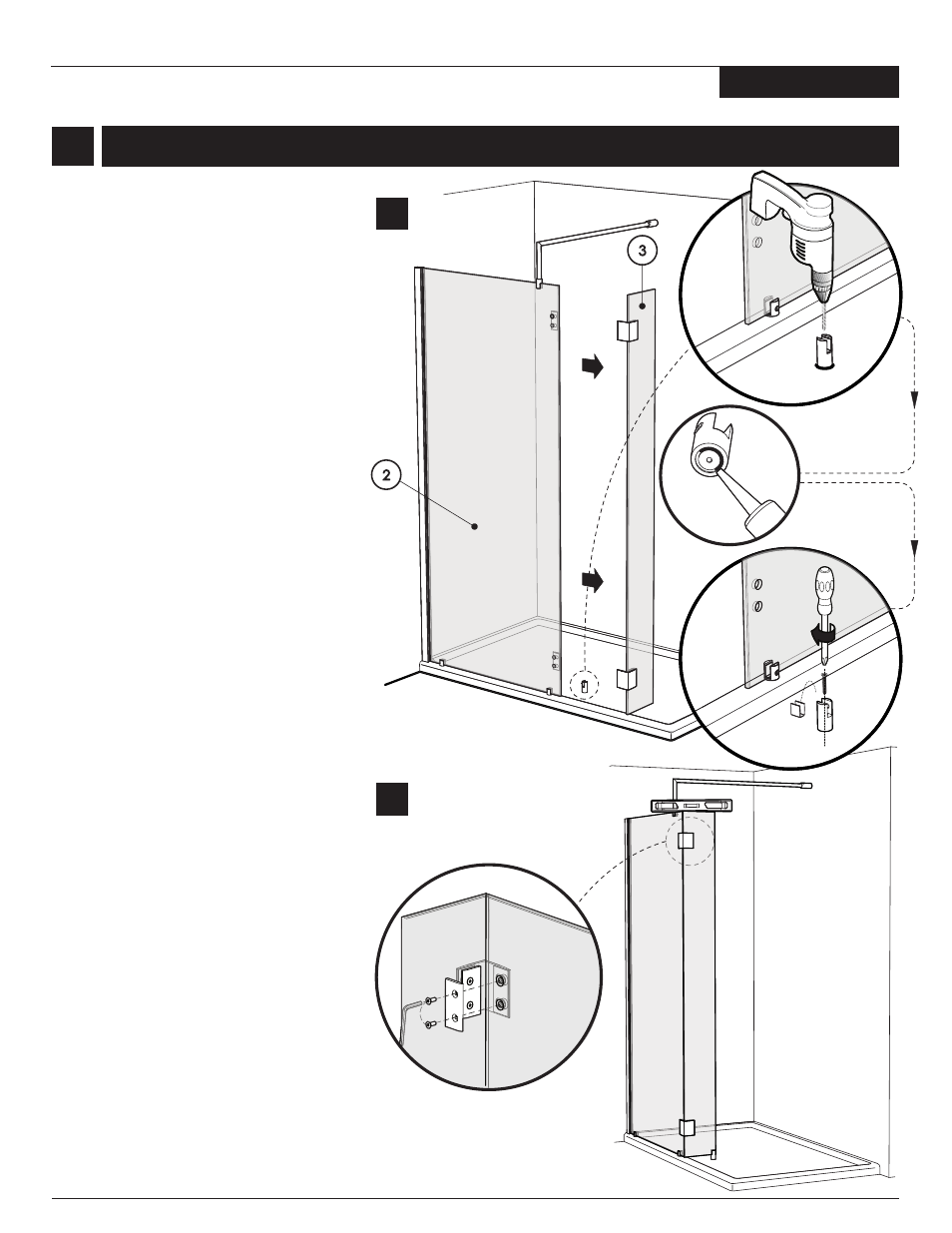

3c. Remove the small fixed panel (3) by
unscrewing the corner clip back plate.
On the marked positions drill the base
with a drill bit 1/8”.
Put silicone onto the bottom clip bottom
face groove and around the hole.
Fasten it to the base with screw #6-1”.
Install the provided gasket.
3c
CONTINUED
Insert small fixed panel back into
bottom clips slots and fasten the back
corner clip plate temporary until proper
leveling of panels is completed.
3d.
3d
12
2
3
