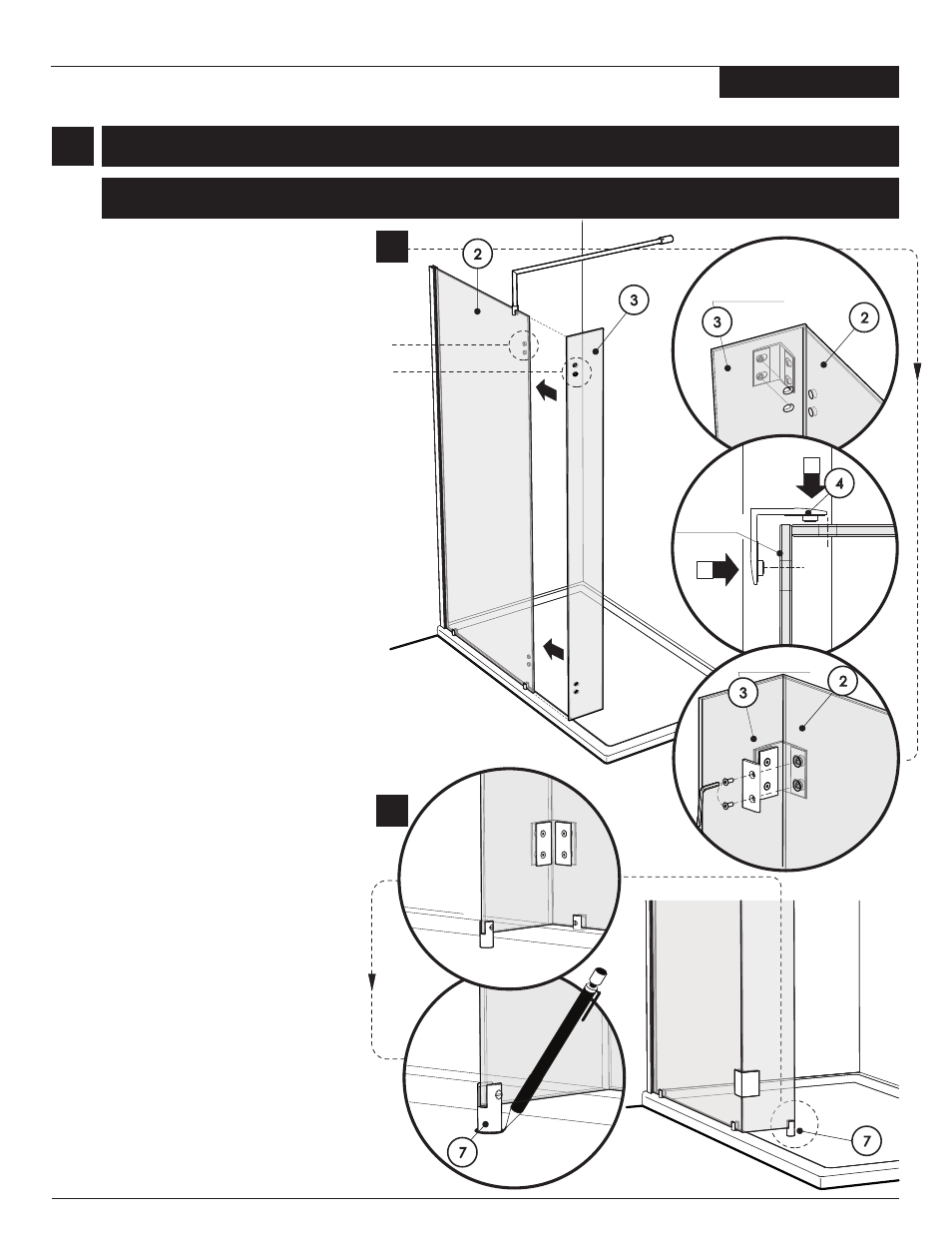

3a. Proceed to install the corner clips (4)
onto the glass panels (2) (3)temporary.
Located in front of the unit place the
small fixed panel inner face(3) onto the
edge of the front fixed panel (1) as
shown in the detail. Holding the glass
from the front install corner clip front
plate onto front panel slots. Slide the
corner clip until it meets the front panel
holes. Another person located inside
fastens the back plates.
At this step do necessary adjustment.
Level the small fixed panel (3) by
adjusting the corner clips.
INSTRUCTION MANUAL
3
BOTTOM CLIPS INSTALLATION
3a
CORNER CLIPS INSTALLATION
3b. Mark on the base the location of long
bottom clip (7).
slots
holes
11
2c
EDGE
3b
SIDE PANEL
3
2
SIDE PANEL
1
2
4
2
SIDE PANEL
3
2
3
7
7
203X, 313X, 313TBX
