INSTRUCTION MANUAL
CONTINUED
2

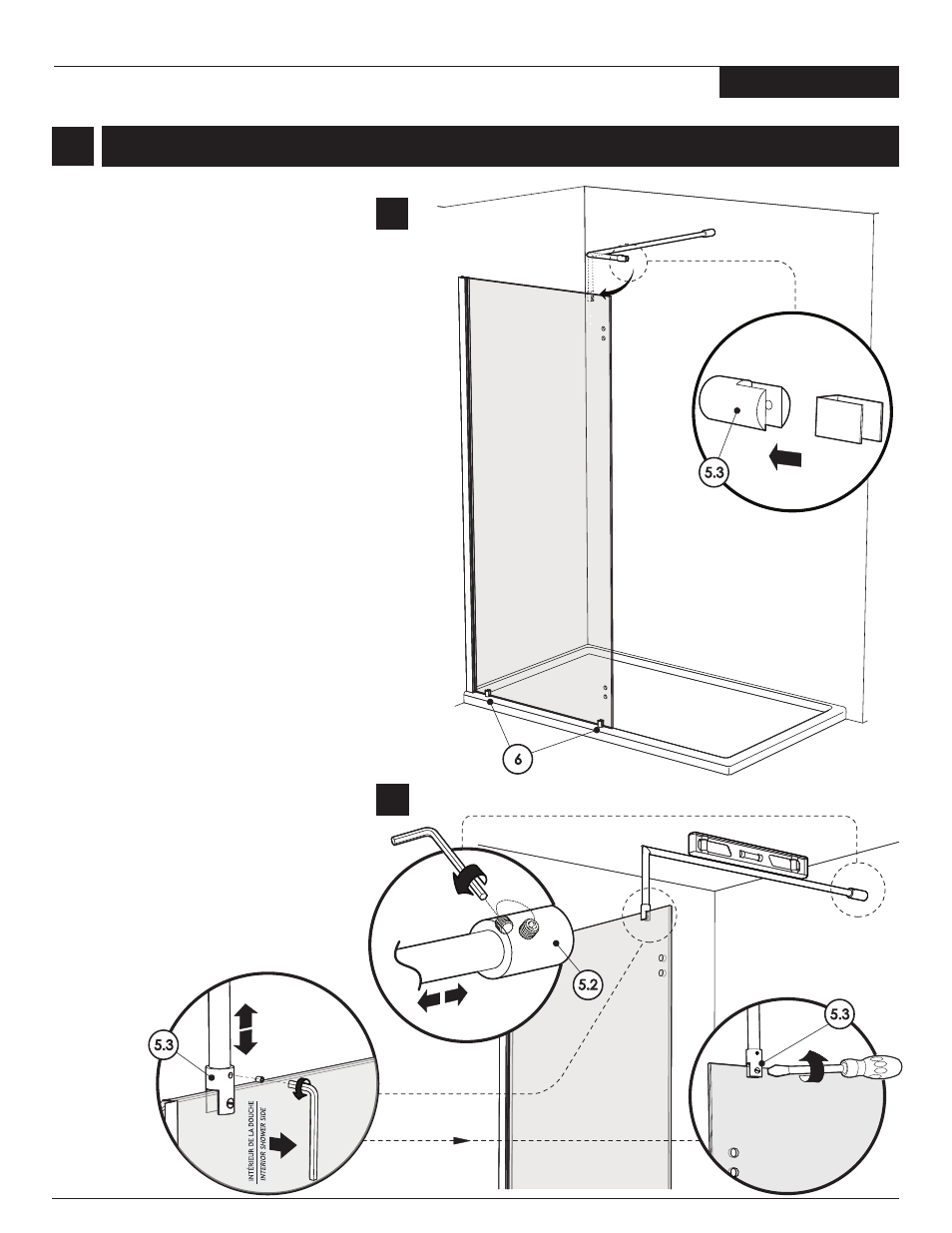

2f. Place the front fixed panel into the
bottom clips (6) attached to the base.
Loosen the support bar as necessary
to allow the bar to rotate and hold the
glass from the top. Put the gaskets as
shown in the detail and proceed to
rotate the bar until it meets the glass
panel.
2f
10
5.3
5.3
2g. Level support bar by loosening wall
end component set screw (5.2) and
glass holder set screw (5.3) adjusting
to the proper position.
Fasten securely all screws.
2g
5.3
5.2
6
203X, 313X, 313TBX
