INSTRUCTION MANUAL
1
CONTINUED
1f
1e

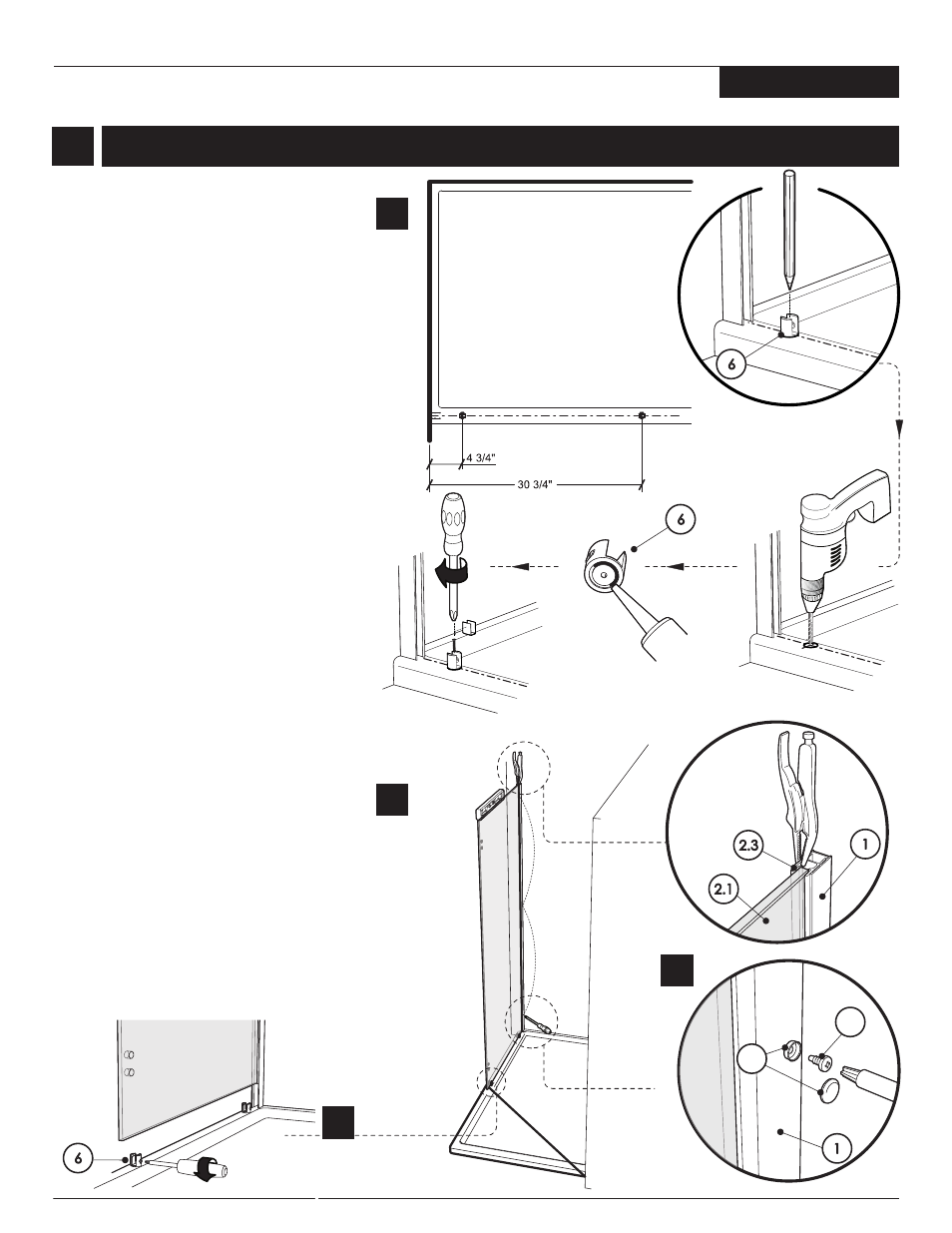

1e. Place the bottom clips (6) for return panel
on the line traced previously following
dimension shown on the plan view.
Mark the screw location.
Remove temporary the bottom clips to drill
the base using #1/8” drill bit.
Put silicone onto the bottom clip bottom face
groove and around the hole. Finally, fasten the
bottom clips to the base using the provided
screws.Place the gaskets into bottom clips
slots.
Slide the fixed front panel assembly into the
wall jamb (1) and through the bottom clips
slots.
Once the front fixed panel has been
adjusted, secure the expander (2.3) to the
wall jamb (1) by way of a clamp so as to
keep the return panel level.
By way of #8- 3/8 screws (10.2), as well as
screw caps (10.4), permanently secure the
wall jamb (1) to the expander (2.3).
Fasten tightly the bottom clips set
screws (6).
1f.
1g.
1h.
6
8
1
10.4
10.2
1h
1g
6
2.1
2.3 1
6
203X, 313X, 313TBX
