H
ARDWARE
I
NSTALLATION
1.
Turn computer off.
2. Disconnect your computer monitor from the PC.
3. Connect the WEB CABLE PLUS to the VGA connector on the rear of your computer.
4. Connect your computer monitor to the WEB CABLE PLUS.
5. Connect one of the WEB CABLE PLUS’ video output cables (S-Video or composite) to the
video input of your TV, VCR, or Projector.
Note: The S-Video connection is a newer video standard. This type of connection improves
color, clarity, and resolution. We recommend using the S-Video connection whenever
possible.
6. Connect the WEB CABLE PLUS PS/2 power connector to the 5V power adapter. You may
optionally connect the PS/2 power connector to your PC’s PS/2 keyboard port. If your
computer has the older AT style keyboard port, you may use the PS/2-to-AT adapter.
Note: For the best possible image quality, we recommend using the included 5 Volt AC
power adapter.
7. Turn on computer and TV. If necessary, adjust the range of VGA resolution and frequency.
The supported resolutions are: 640x480 @ 60-85 Hz, 800x600 @ 60-85 Hz, and 1024x768
@ 60-70 Hz.

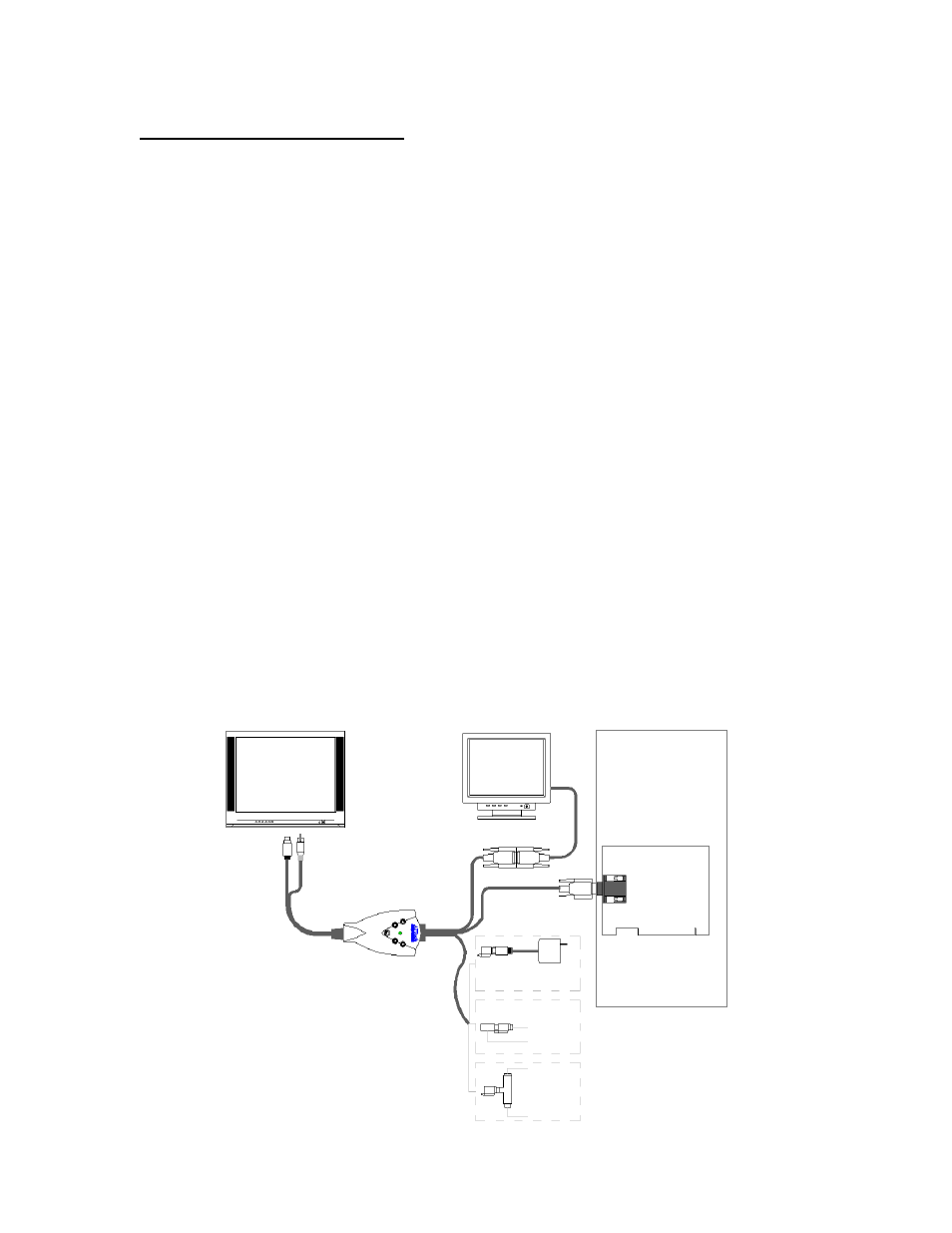

TV
Monitor
VGA card
AC Power Adapter
Computer
S-Video RCA
Composite Video
PS/2 to AT
Adapter
PS/2 Keyboard
Connector
VGA-IN
VGA-OUT
3
