DOOR AND DRAWER REMOVAL (CON t .)
DOOR REMOVAL (CONT.)
INSTALLATION

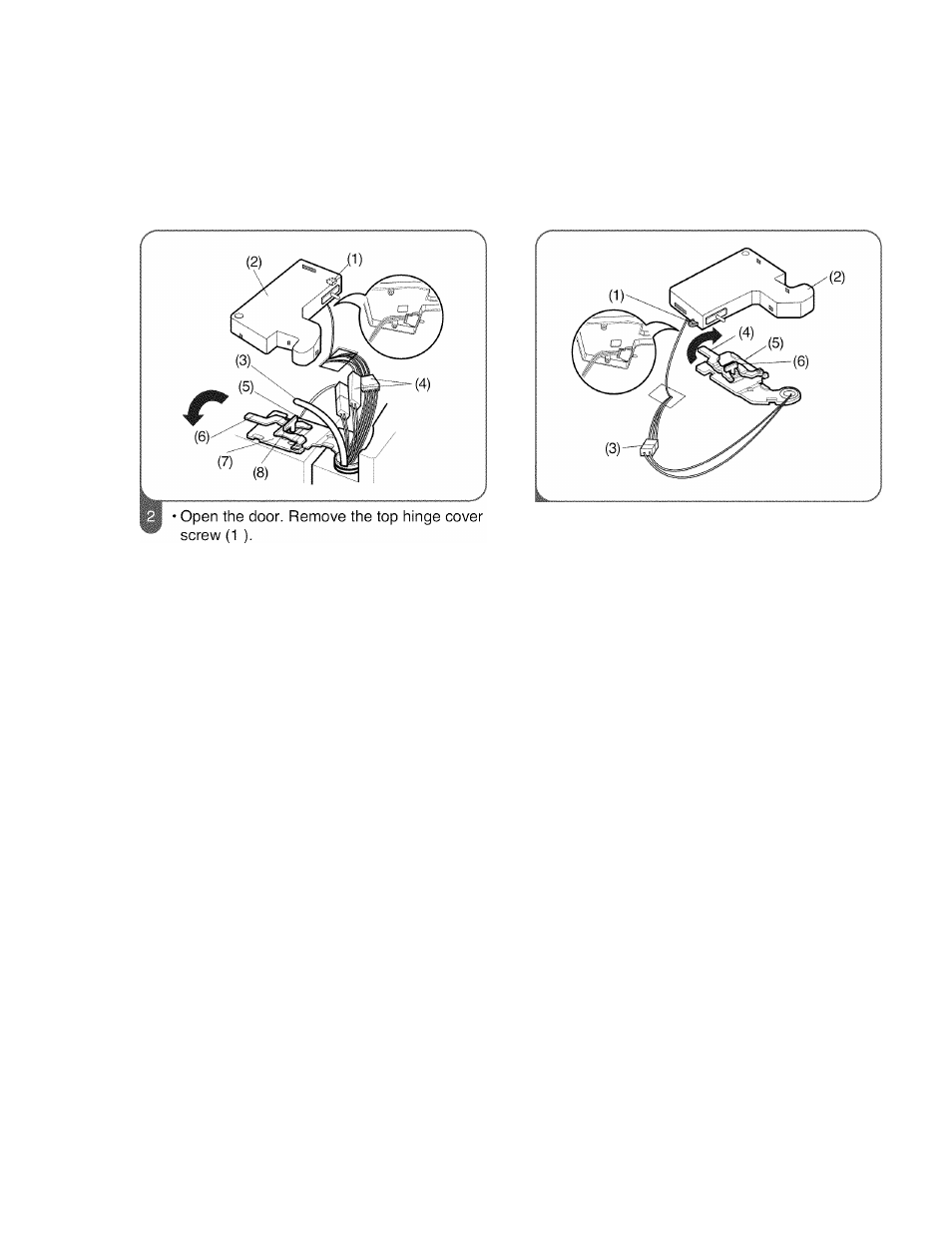

• Use a flat-head screwdriver to pry back the
hooks (not shown) on the front underside of
the cover (2). Lift up the cover.
• Remove the cover. Pull out the tube (3).
• Disconnect all the wire harnesses (4).
• Remove the grounding screw(5).
• Rotate hinge lever (6) counterclockwise.
Lift the top hinge (7) free of the hinge lever
latch (8).
IMPORTANT: When lifting the hinge free of
the latch, be careful that the door does not fall
forward.
• Lift the door from the middle hinge pin and
remove the door.
• Place the door, inside facing up, on a non­
scratching surface.
To remove the right refrigerator door:
• Open the door. Remove the top hinge cover
screw (1 ). Lift up the cover (2).
• Remove the cover.
• Disconnect the wire harness (3).
• Rotate the hinge lever (4) clockwise.
Lift the top hinge (5) free of the hinge lever
latch (6).
IMPORTANT: When lifting the hinge free of
the latch, be careful that the door does not fall
forward.
• Lift the door from the middle hinge pin and
remove the door.
• Place the door, inside facing up, on a non­
scratching surface.
11
