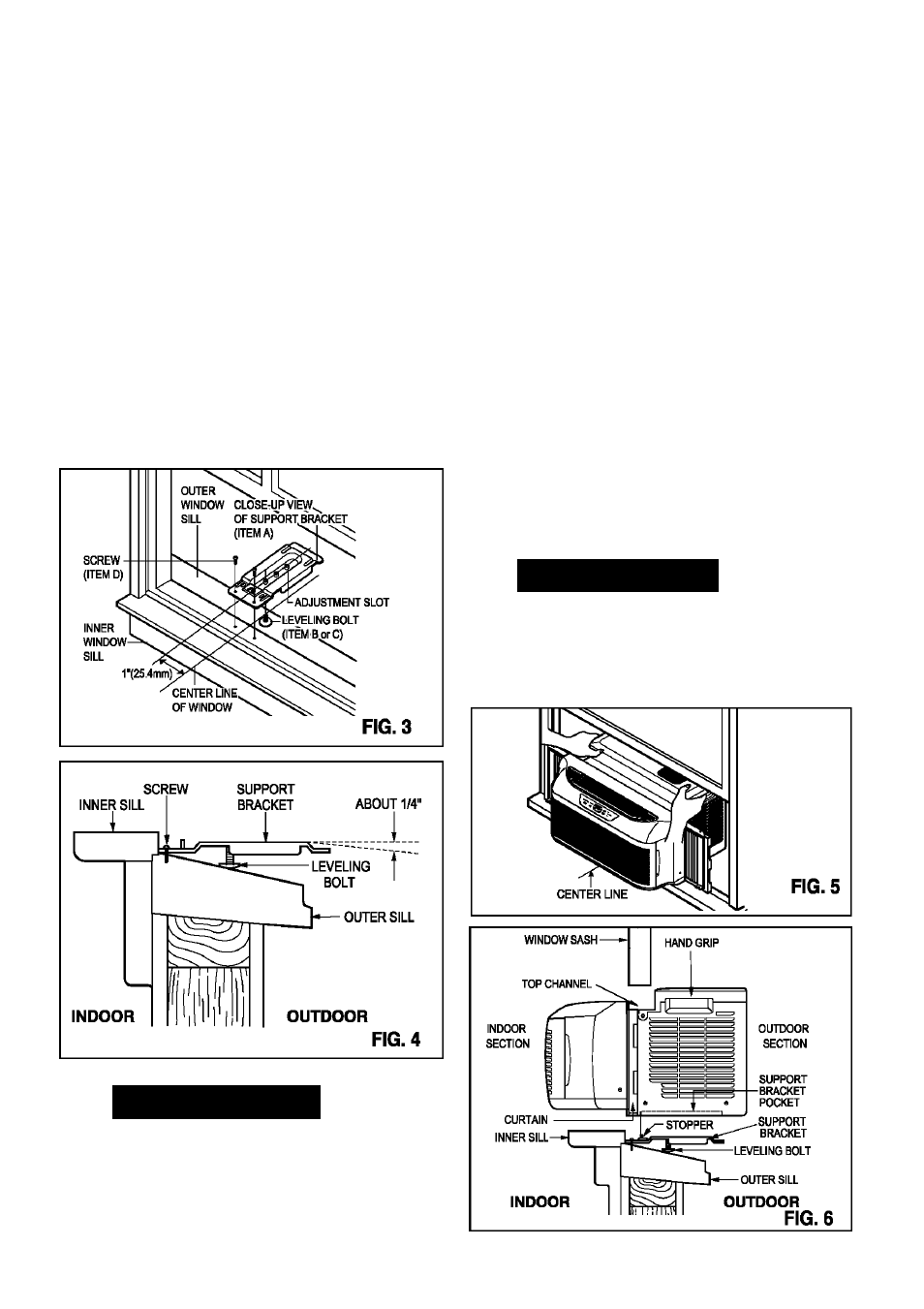

^ Install support bracket on window. See FIG. 3.
Install leveling bolt up through bottom side of support
bracket. You can choose a short bolt (ITEM C) or a
long one (ITEM B) according to window type. Aiso,
you should select the position of hole on bracket.
Position bracket on sill 1 inch (25.4mm) to left of
center line of window (See FiG. 3).
Fasten bracket looseiy to siil with screws (ITEM D)
provided.
Adjust leveling bolt so that the air conditioner wili be
instailed with a very slight tiit (about 1/4") downward
toward the outside for proper drainage. Tighten
bracket screws.
A CAUTION
Failure to securely install support bracket may
result in unit falling from window if window sash is
raised after unit is installed. This could result in
personal Injury.
4) INSTALL THE AIR CONDITIONER IN
THE WINDOW
• Carefully lift the air conditioner and slide it Into the
open window. Be careful not to hurt waist in this
operation.
'
• Use the two hand grips on top sides of unit to lift
unit.
• Make sure that support bracket is inserted in the
pocket under base fan, and that curtain frame guide
is stopped by stopper on the support bracket as
shown in FIG.6.
NOTE: When unit is properly centered and pushed
outward to correct bracket location, you will feel unit
drop securely in place on the support bracket. Hold
unit firmly during this procedure.
• Lower top window sash all the way down so that
sash sits firmly in top channel of unit and
expandable curtain frames.
A CAUTION
During the following step, hold unit firmly until
window sash is lowered to top channel behind
curtain frames. Personal injury or property damage
may result If unit falls from window.
