INSTALLATION
DOOR AND DRAWER REMOVAL
(CONTJ
DOOR REINSTALLATION
shown.

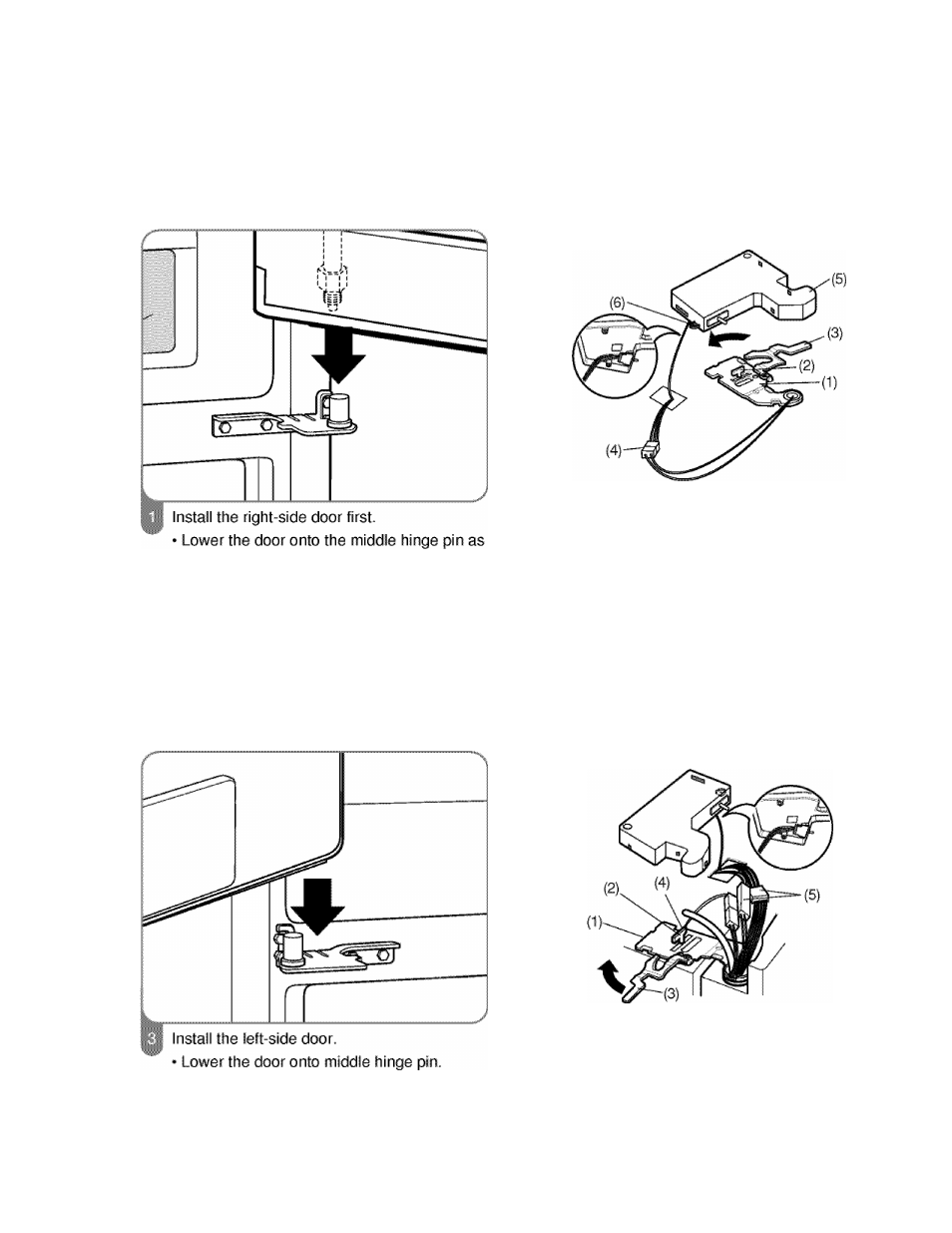

^ Make sure the plasic sleeve is inserted in
the bottom of the door.
^ Fit the top hinge (1) over the hinge lever
latch (2) and into place. Rotate the lever |3)
counterclockwise to secure the hinge.
^ Connect the wire harness (4).
^ Hook the tab on the door-switch side of the
cover (5) under the edge of the wire opening
in the cabinet top. Posiion the cover into
place. Insert and ttghten the cover screw |6).
Fit the top hinge (1) over the hinge lever
latch (2) and into place. Rotate the lever (3)
clockwise to secure the hinge.
Install the grounding screw (4) and connect
all the wire harnesses (5).
@ 1 2
