Mounting your Extractor
The extractor can be mounted in one of two ways:
1. Mark out the dimensions of the cut-out based on your
hood; the dimensions required are as follows: -

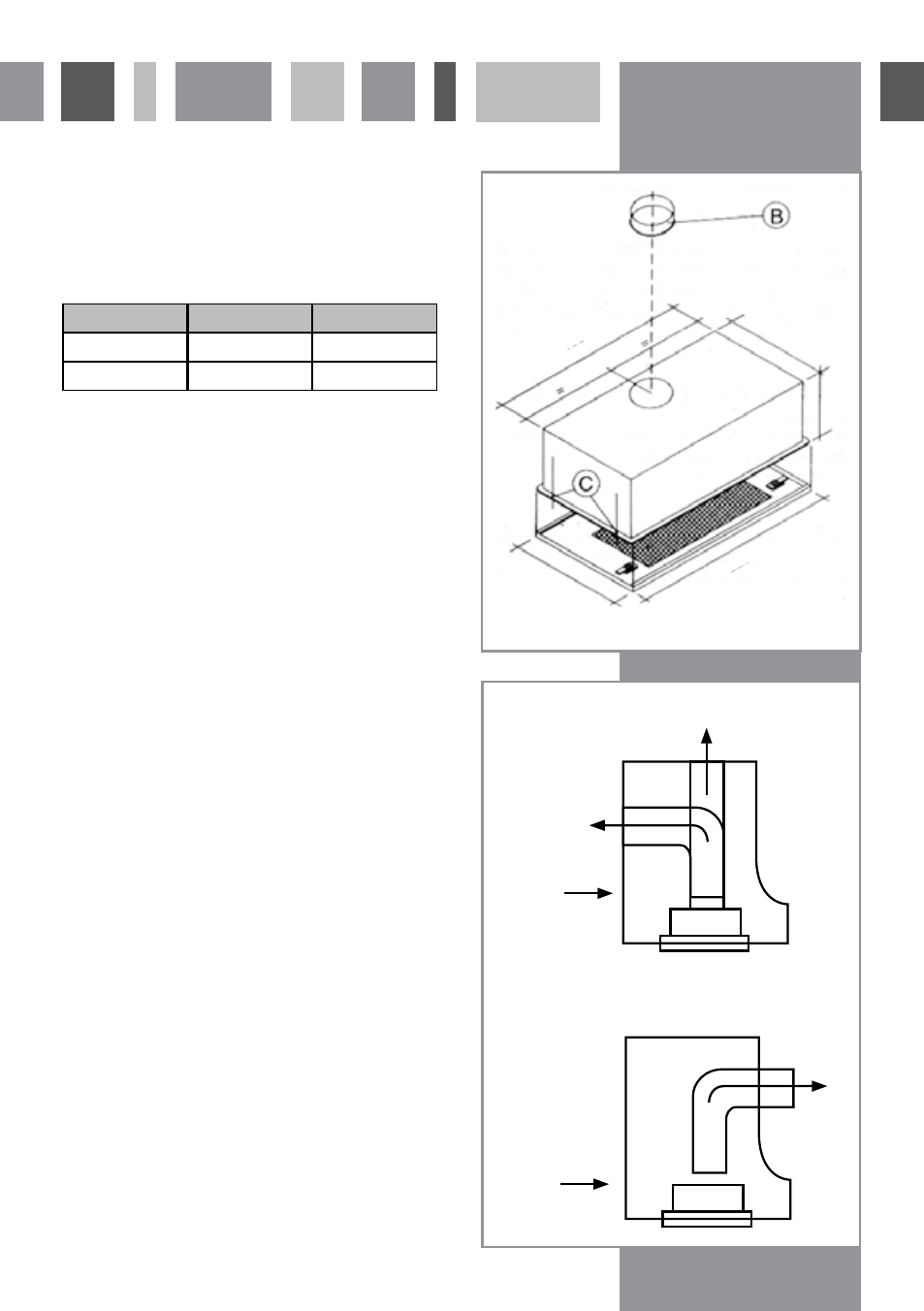

2. Hold the extractor in the housing and secure to the
canopy using 4 wood screws, located in the corner of
the extractor, as shown as C in figure 3. We
recommend that you seek the help of another individual
when carrying out this task.
3. Connect the exhaust pipe to the duct adapter (B in
figure 2.) and locate on the extractor, as indicated. We
recommend the use of 120mm (5”) ducting, although
100mm can be used with the use of a 120-100mm
converter; Note that this will affect performance.
Figure 3 shows how the extractor should be vented: -
Fig. 3
Fig. 4
CANOPY
CANOPY
External Exhaustion
Internal Recirculation
495 or 695
527 or 707 284
257
14
8
Version Cut-out Width Cut-out Depth
CCA5 495 257
CCA7 695 257
