CRAFTSMAN 22" - 5H.P. SNOW THROWER 536.886140

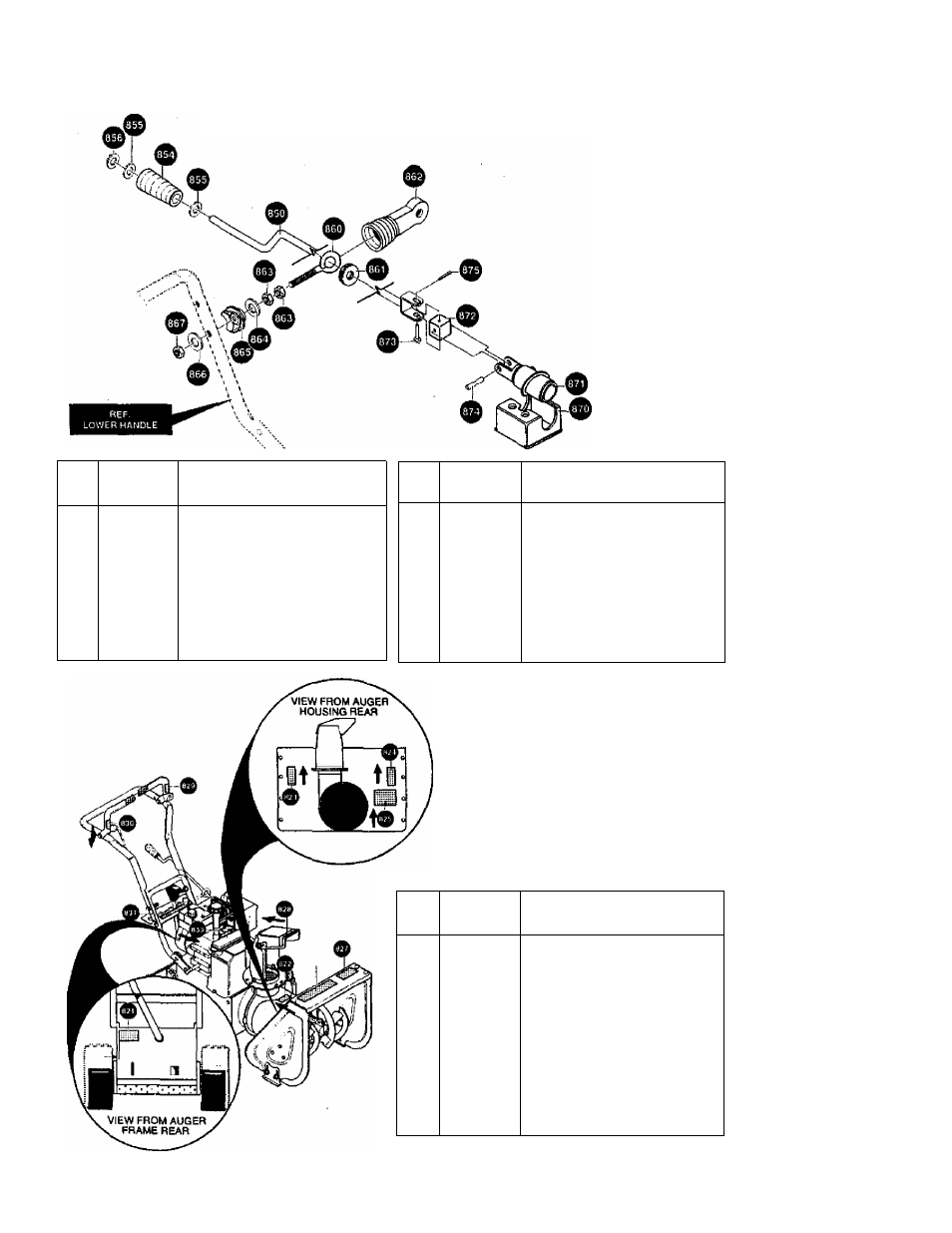

CHUTE CONTROL ROD ASSEMBLY
REF.
NO.
PART NO. PART NAME
850 585426 Crank Assy, W/yoke
854 307399 Chute Crank Handle
855 309312 Flatwasher, .39x.70x.35
856 578159 Ring, Ret. E.
860 71457 Eye Bolt 3/8-16x5.00
861 148 Grommet Eye Bolt
862 308145 Boot, Eye Bolt Chute Crank
863 124829 Nut, 3/8-16 Hexjam
864 120394 Flatwasher ,406x.81x.065
334215C
REF.
NO. PART NO. PART NAME
865
866
867
870
871
872
873
874
875
309344
120394
71046
585195
585196
578063
578309
578060
579493
Adapter, Boot to Handle
Flatwasher .406x.81x.065
Nut, 3/8-16 Hexnyl
Bracket, Worm Mtg
Worm, Gear Chute Rot
Block Univ. Pivot
Clevis Pin
Pin, Univ. Joint
Cotter Pin .06X.50
DECALS
314005F
REF.
NO. PART NO. PART NAME
822
823
824
825
826
827
828
829
830
831
833
760971
313892
70141*
302922
760972
760963
761079
3902
3903
340047
760983
Decal, 9* Impeller
Decal, Danger Chute
Decal, Danger Auger
Decal, Danger English
Decal, Craftsman
Decal, El Start 5/22
Decal, Danger Chute
Decal, Traction Dr. Engage
Decal, Gear Selector
Decal, Gear Selector
Decal, Toolbox
