OPERATION

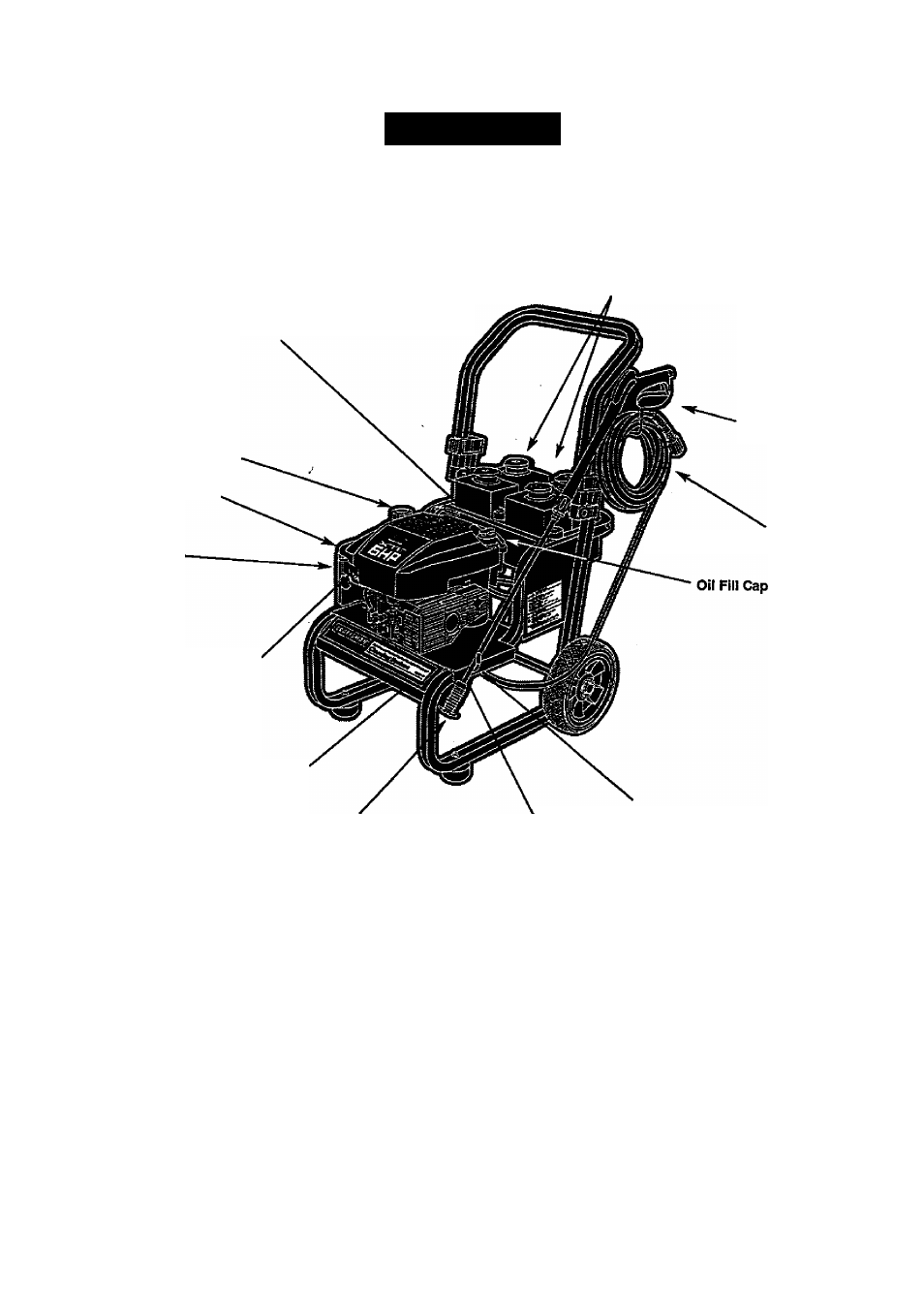

KNOW YOUR HIGH PRESSURE WASHER
Read this owner’s manual and safety rules before operating your cleaning system. Ctompare the
illustrations with your cleaning system to familiarize yourself with the locations of various controls and
adjustments.
System Rinse, Detergent and
Chemical Reservoirs with
Intemai Filter and Baffle
Dial-A-Cieaner''*'
Selector Knob
Gas Cap
Throttle Control
Air Filter
Spray Gun
High Pressure Hose
Choke Lever
Water Inlet
Adjustable Nozzle
Pump
High Pressure Outlet
Adjustable Nozzle - Adjust for high or low pressure;
narrow or fan spray.
Air Filter - Dry type filter element limits the amount of
dirt and dust that gets in the engine. *
Choke Lever - Used to start a cold engine.
Dial-A-Cleaner™ Selector Knob - Selects any one
of three chemicals or the clean water system rinse.
Gas Cap - Rll engine with regular unleaded gasoline
here.
High Pressure Hose - Connect one end to the spray
gun and the other to the high pressure outlet.
High Pressure Outlet - Connection for'high pressure
hose.
Oil Fill Cap - Fill engine with oil here. See page 7 for
oil recommendations.
Pump - Develops high pressure water.
Spray Gun - Controls the application of water onto
cleaning surface with trigger device. Includes safety
latch.
System Rinse, Detergent and Chemical Reservoirs
with Internal Filter and Baffle - Used to provide
detergent or other chemicals to the low pressure water
stream.
Throttle Control - Use to set the engine in starting
mode. Stops a running engine.
Water Inlet - Connection for garden hose.
