REPAID PARTS
12.5 HP 38” TRACTOR - - MODEL NUMBER 917.256930

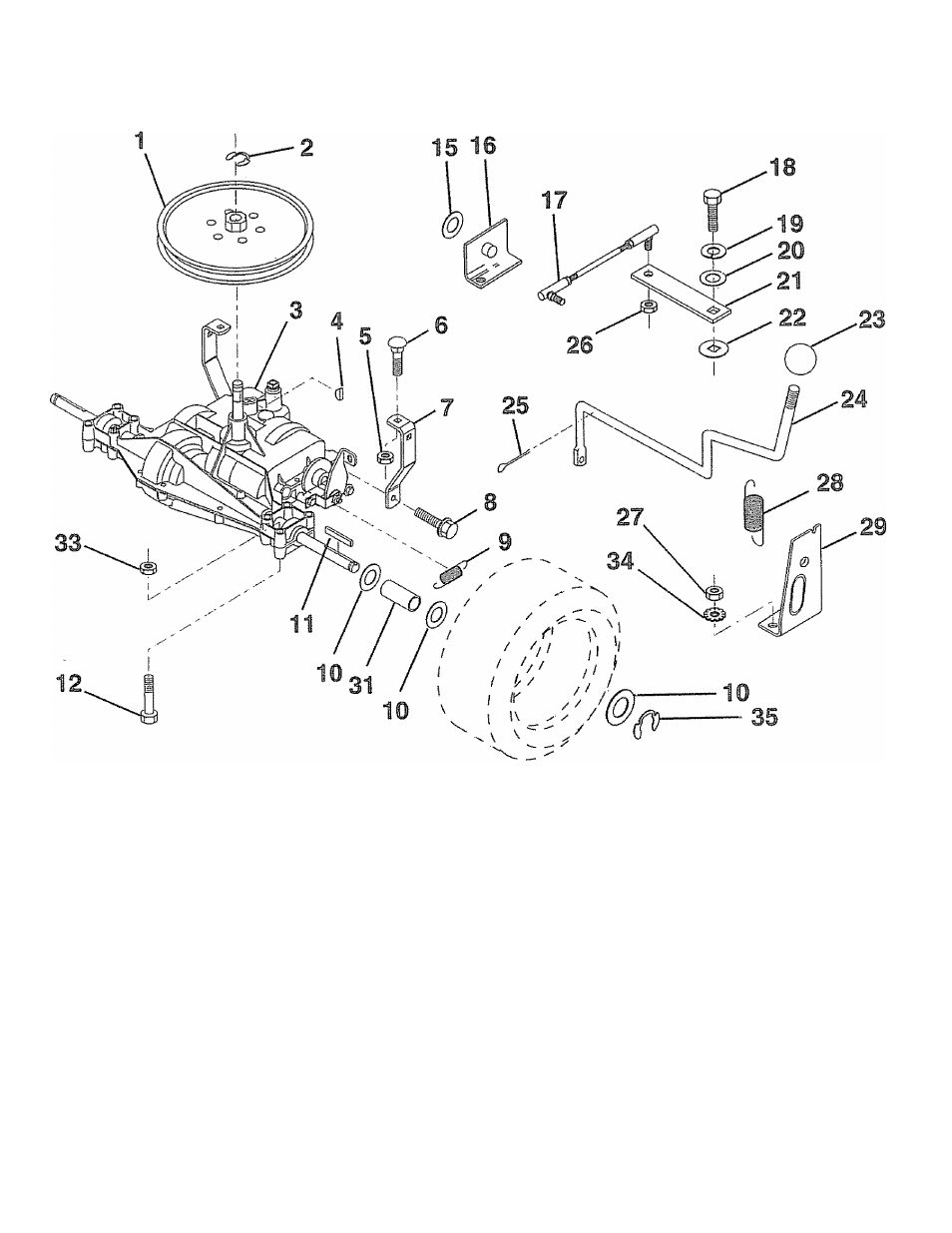

TRANSAXLE
KEY PART
NO. NO.
1 123385X
2 12000028
3 137365
4 2228M
5 STD541431
6 STD533107
7 123378X
8 17490512
9 110422X
10 121749X
11 123583X
12 STD523727
15 STD551050
16 124600X
17 123632X
18 71040412
DESCRIPTSON
Pulley
Ring, Retainer
Transaxle, Dana, 5 Speed,
Model Number 4360-50
Key, Woodruff #9
Nut, Crownlock 5/16-18
Bolt, Carriage 5/16-18 UNC x 3/4
Strap, Torque
Screw, Hex Head, Thd., Roil.
5/16-18x3/4
Spring, Brake
Washer 25/32 x 1-1/4 x 16 Gauge
Key, Square
Bolt. Hex Head 3/8-16 x 2-3/4
Washer 17/32 x 1 x 16 Gauge
Support, Shift Handle, LH.
Link, Shift
Bolt, Hex Head, Fin.
1/4-28
X 3/4 Grade 8
KEY PART
NO. NO.
19 STD551125
20 19091210
21 123484X
22
105701X
23 130564
24 130714
25 STD561210-
26 STD541531
27
STD541431
28 128085
29 128084
31 123409X
33 STD541437
34 11050500
35 STD581075
DESCRäPTiON
Washer, Lock 1/4
Washer 9/32 x 3/4 x 10 Gauge
Arm, Shift
Washer, Shift Plate
Knob
Rod. Shift
Pin, Cotter 1/8 x 1
Nut, Hex, Nylon 5/16-24
Nut, Hex, Keps 5/16-18
Spring, Extension
Support, Shift Handle, R.H.
Spacer
Nut, Crownlock 3/8-16
Washer, Lock, External Tooth 5/16
E-Ring
NOTE: All component dimensions given in U.S, inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTiFICATlON
