OPERATION

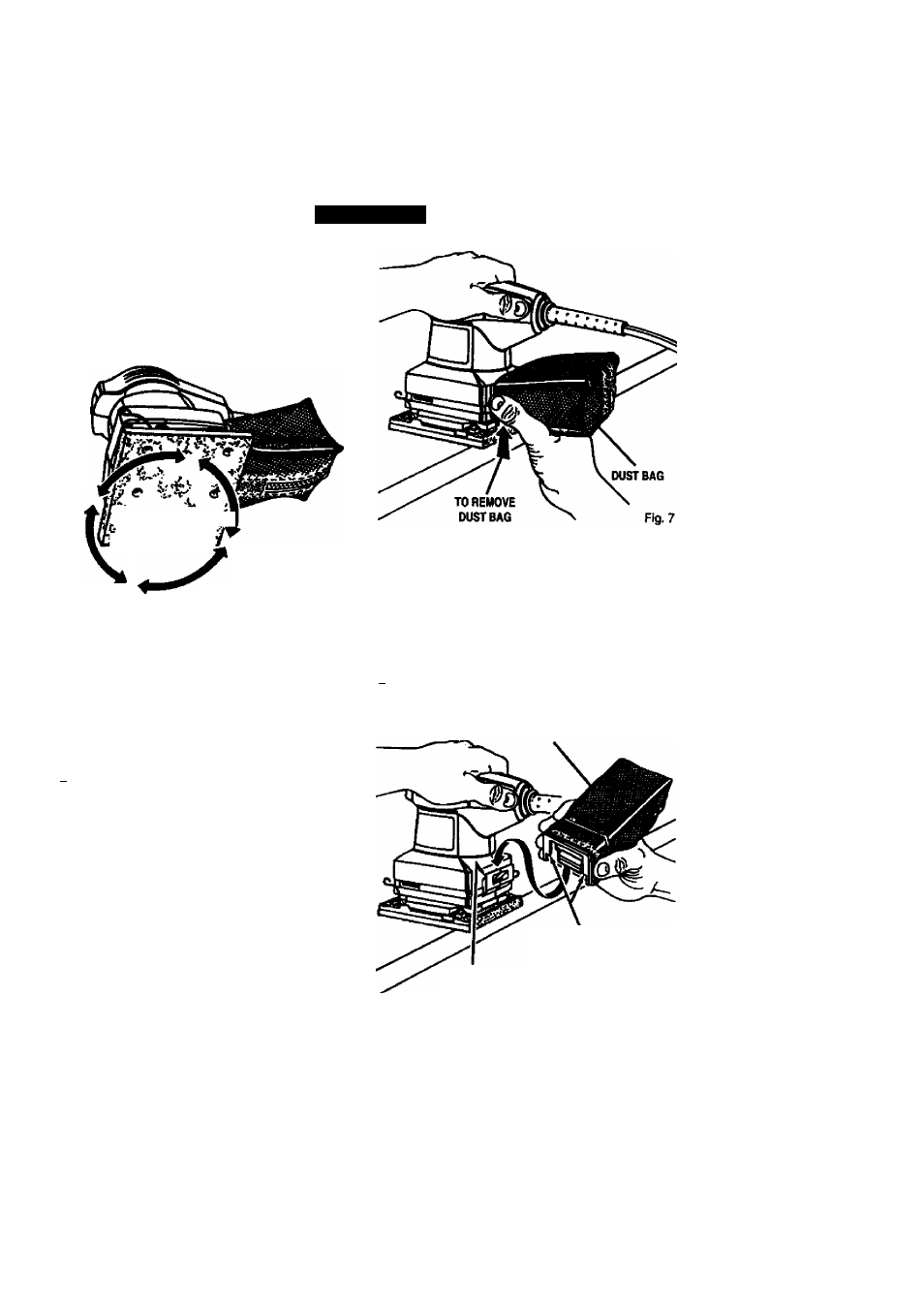

ORBITAL MOTION
Orbitat motion is ideal for fast cutting action when
removing old finishes, smoothing rough wood, cutting
stock down to required dimensions, or for finishing
surfaces to be painted. As shown in figure 6, the
sandpaper moves in tiny circles at a very high speed,
aliowing the sander to move easily.
ORBITAL MOTION -yj
ifcf. trftrttiif. ..I., iiw
Fig. 6
DUSTLESS SANDING
The dust bag located on the rear of your sander
provides a dust collection system for your sander.
Sanding dust is drawn up through the holes of the
cushion and collects in the dost bag during sanding
operation. For more efficient operation, empty dust
bag when half full.
TO EMPTY DUST BAG
■ Unplug your sander.
^ WARNING: Failure to unplug your sander could
result in accidental starting causing possible
serious personal injury.
■ Unzip dust bag.
■ Shake dust bag to empty.
■ djust bag up after emptying.
TO REMOVE DUST BAG FOR EMPTYING OR
CLEANING
See Figure 7.
■ Unplug your sander.
WARNING: Failure to unplug your sander could
result in accidental starting causing possible
serious personal injury.
■ Slide dust bag retainer from sander as shown by
the arrow in figure 7. Note: Grooves on dust bag
retainer align with grooves on your sander.
■ Empty dust bag.
TO INSTALL DUST BAG
See Figure 8.
■ Unplug your sander.
^ WARNING: Failure to unplug your sander could
result in accidental starting causing possible
serious personal injury.
DUSTBAG
DUSTBAG
RETAINER GROOVES
GROOVES
ON SANDER Fig. 8
Realign grooves on dust bag retainer with
grooves on your sander.
Slide dust bag assembly into place as shown by
the arrow in figure 8.
