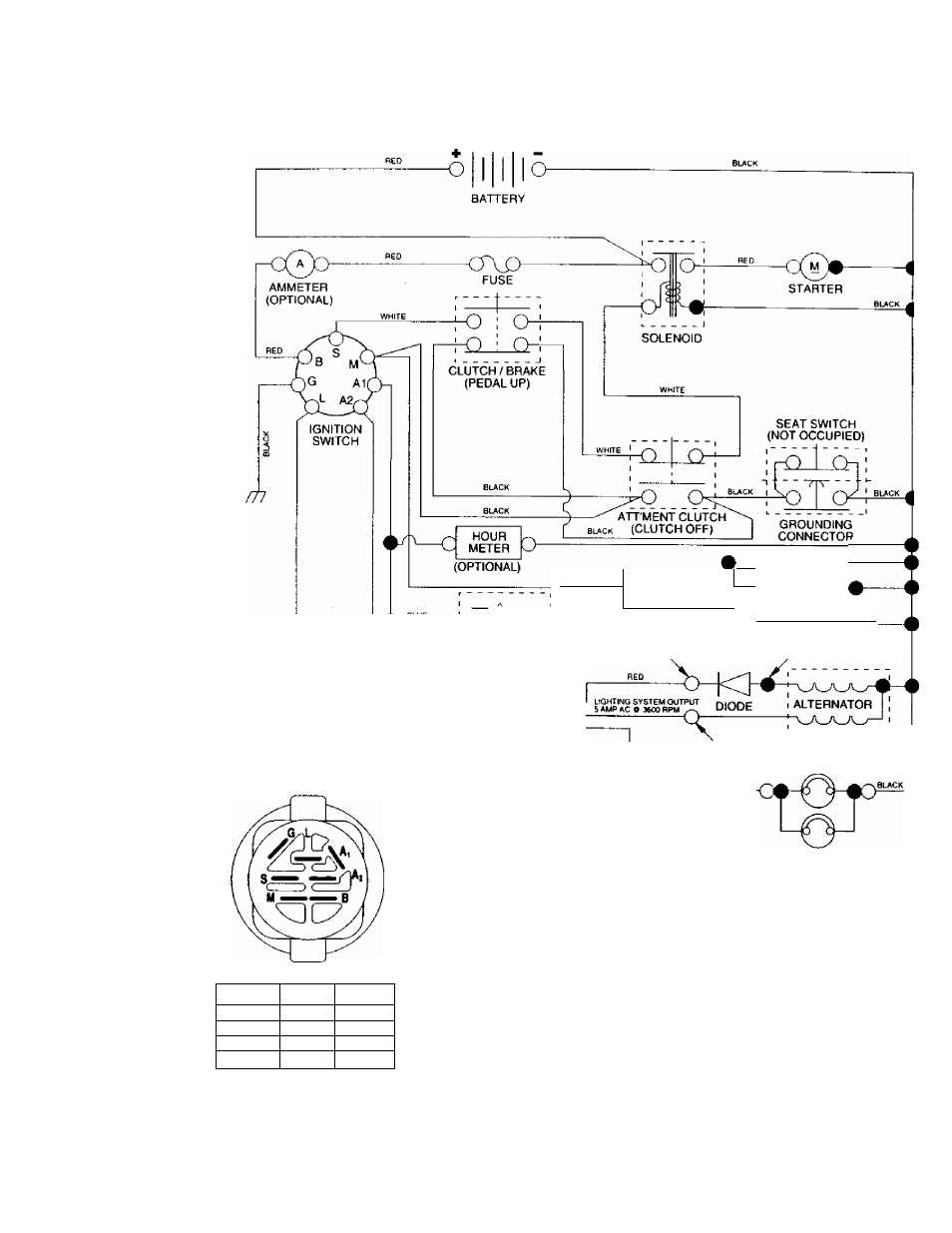

TRACTOR - MODEL NUMBER 917.271815
SCHLIViAriC
^ fuel :
BLAC K I G N I T I O N
— Ü
UNIT
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
L^U-
CHAflaiNG SYSTEM OUTPUT
3 AMP OC 9 XOO RPM 2s VOLTS AC MIN e 3600 rph
ICHAHGING SYSTEM DISCONNECTED)
FUEL SHUT-OFF SOLENOID
{IF SO EQUIPPED)
■ H VOLTS AC MIN 0 3600 RPM ILIGMTS OFF)
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY. BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
HEADLIGHTS
NON-REMOVABLE
CONNECTIONS
rti
IGNITION SWITCH
POSITION CIRCUIT ■MAKE"
OFF M+G+A1 NONE
RUN/LIGHT B+A1 A2+L
RUN B+A1 NONE
START B + S + A1 NONE
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
