TRACTOR - - MODEL NUMBER 917.275400

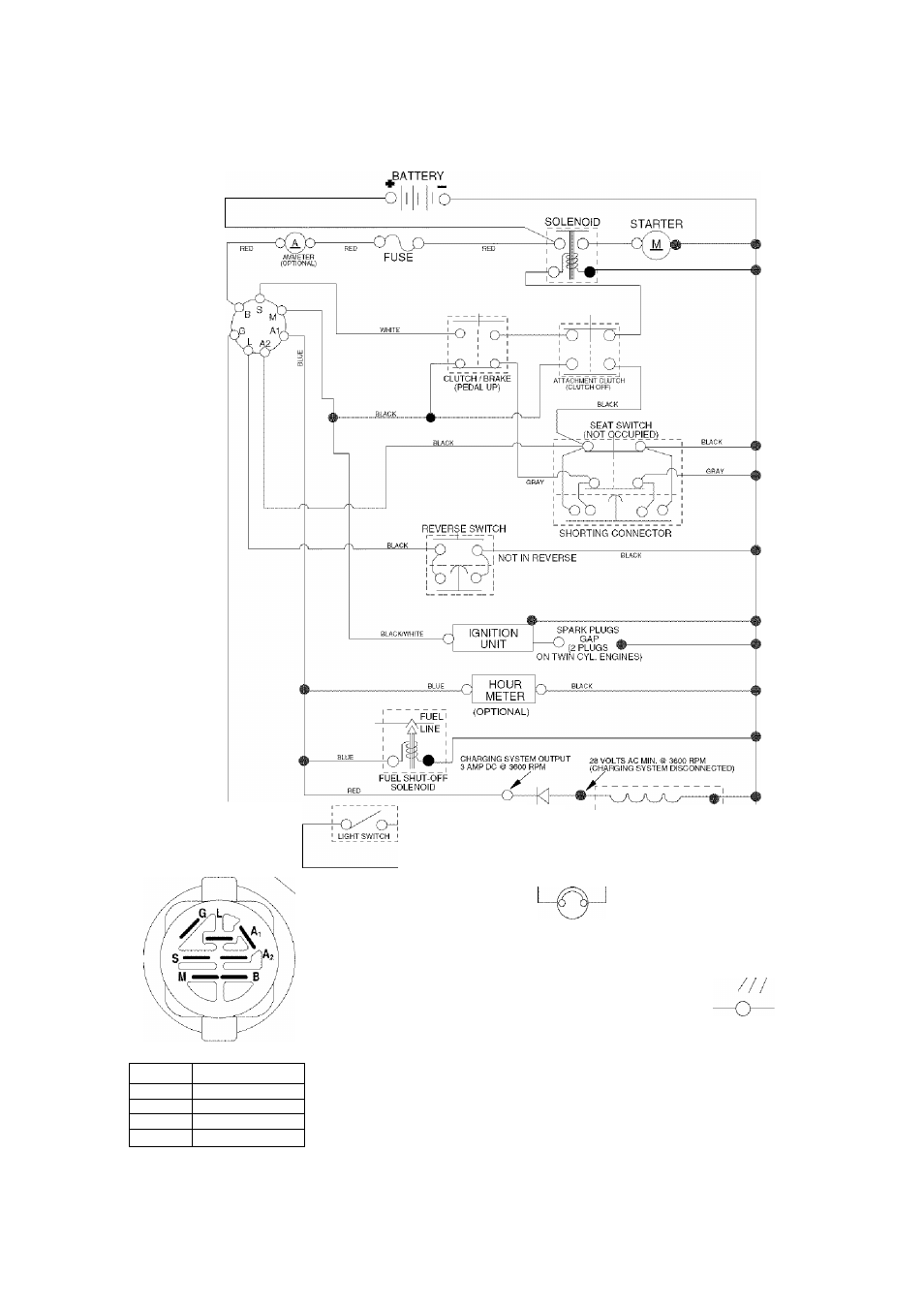

SCHEMATIC

02831 193372

IGNITION SWITCH

POSITION CIRCUIT ‘MAKE”

OFF

M+G+A1

RUN/OVERRIDE

B+A1

RUN

B+A1 L+A2

START

B + S + A1

LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 R PM

DIODE

ORANGE

ALTERNATOR

_ _

-----------

^14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

HEADLIGHTS

NOTE

YOUR TRACTOR IS

...

EOUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY. BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS

WERE REMOVED FOR SERVICING OF

UNIT, THEY SHOULD BE REPLACED

TO PROPERLY SECURE YOUR WIRING.

02831
