CONNECTING TO EXTERNAL EQUIPMENT
E-130
Attaching an External Flash Unit
Always make sure that the external flash unit is turned off
before attaching it to detaching it from the camera. Leaving
the flash unit on can cause it to fire unexpectedly.
1. Point the lens of the camera straight forward,
so it matches the optical axis of the external
flash.
2. Attach the external flash unit to its bracket,
and affix the bracket to the camera’s tripod
hole.
• If you are using a grip type flash unit, affix the flash
unit directly to the camera’s tripod hole.
3. Remove the terminal cap and attach the flash
unit’s sync cable to the external flash sync ter-
minal.

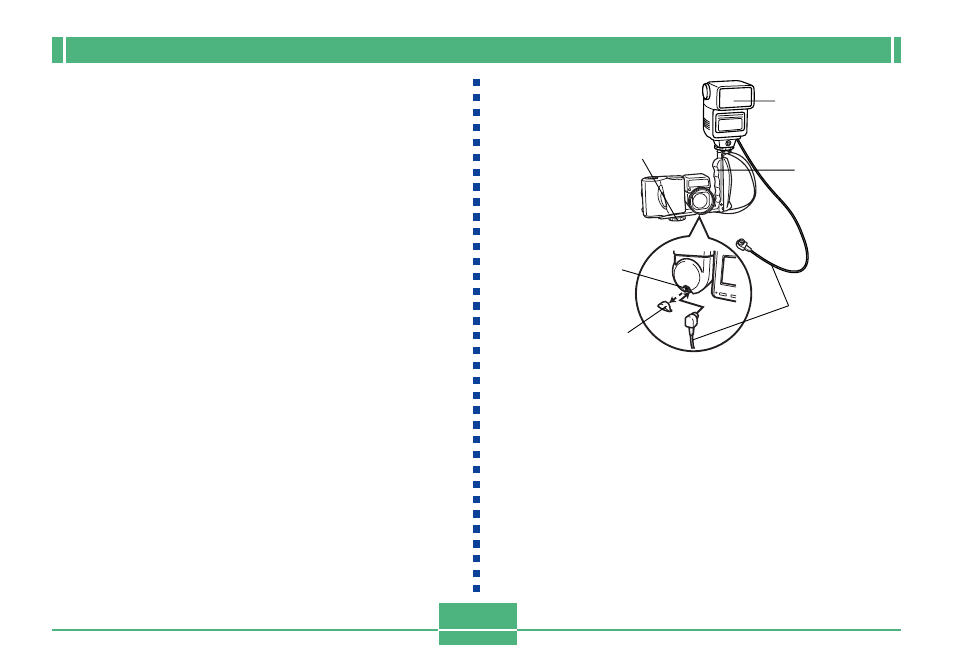

Sync cable
Terminal cap
External flash
sync terminal
External
flash unit
• Make sure you do not misplace the terminal cap. Al-
ways keep the terminal covered when an external
flash unit is not connected.
Bracket
Tripod hole
