OPERATION
BIT STORAGE

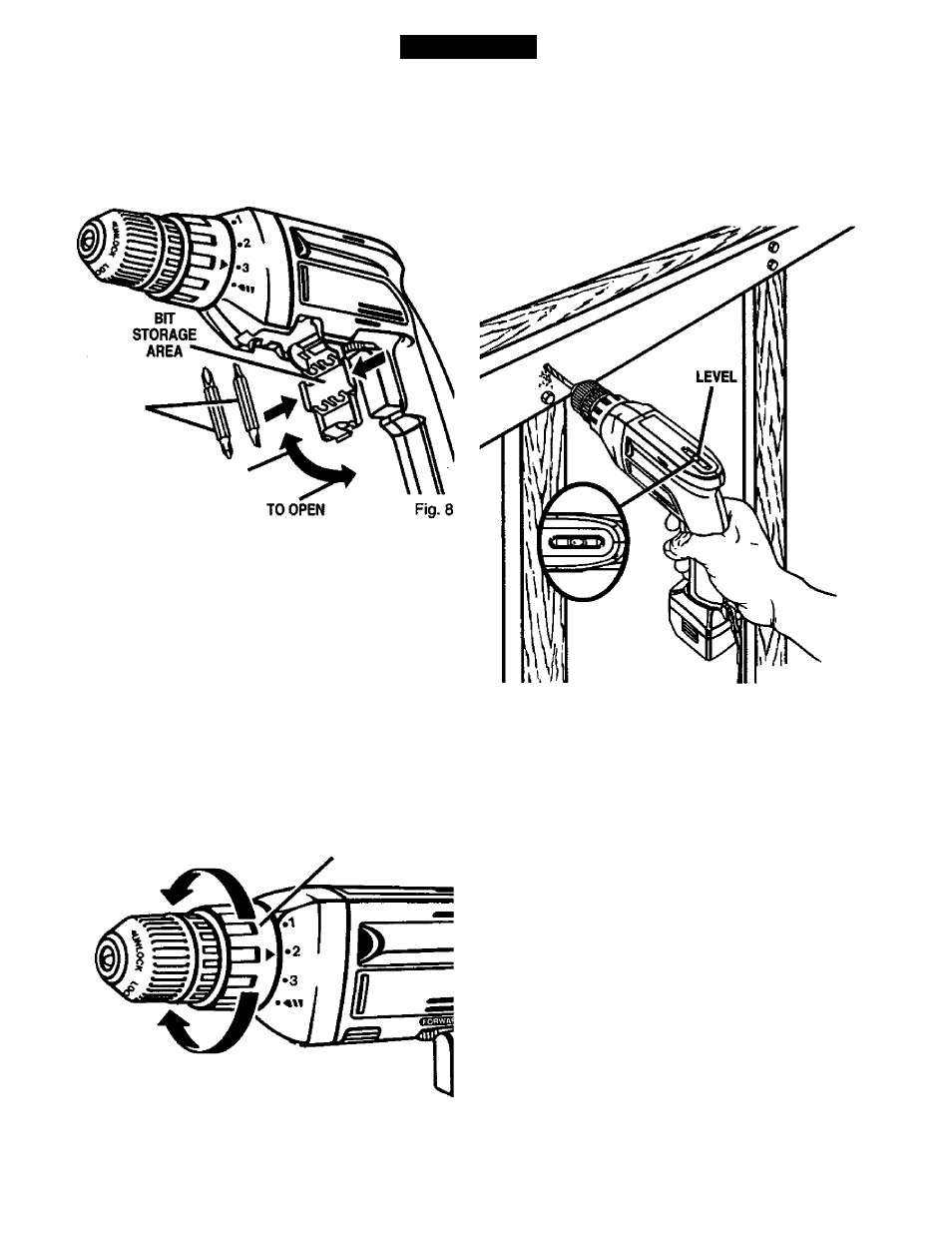

See Figure 8.
When not in use, bits provided with your drill can be
placed in the storage area located on the bottom of
your drill as shown in figure 8.
LEVEL DRILLING
See Figure 10.
A convenient new feature provided with your drill is a
level. It is recessed in the motor housing on top of
your drill. It can be used to keep drill bits level during
drilling operations.
SCREWDRIVER
BITS
TO CLOSE
ADJUSTABLE TORQUE CLUTCH
Your drill is equipped with an adjustable torque clutch
for driving different types of screws into different
materials. The proper setting depends on the type of
material and the size of screw you are using.
TO ADJUST TORQUE
■ Identify the four torque indicator settings
located on the front of your drill. See Figure 9.
■
Rotate adjusting ring to the desired setting.
A
\
i
Fig.
10
1
2
3
<11
For driving small screws.
For driving screws into soft material.
For driving screws in hard wood.
For powerful screw driving or drilling.
TO DECREASE
TORQUE
ADJUSTING
RING
TO INCREASE
TORQUE
