Craftsman 917.292394 - Manual (Page 20)

TILLER - - MODEL NUMBER 917.292394

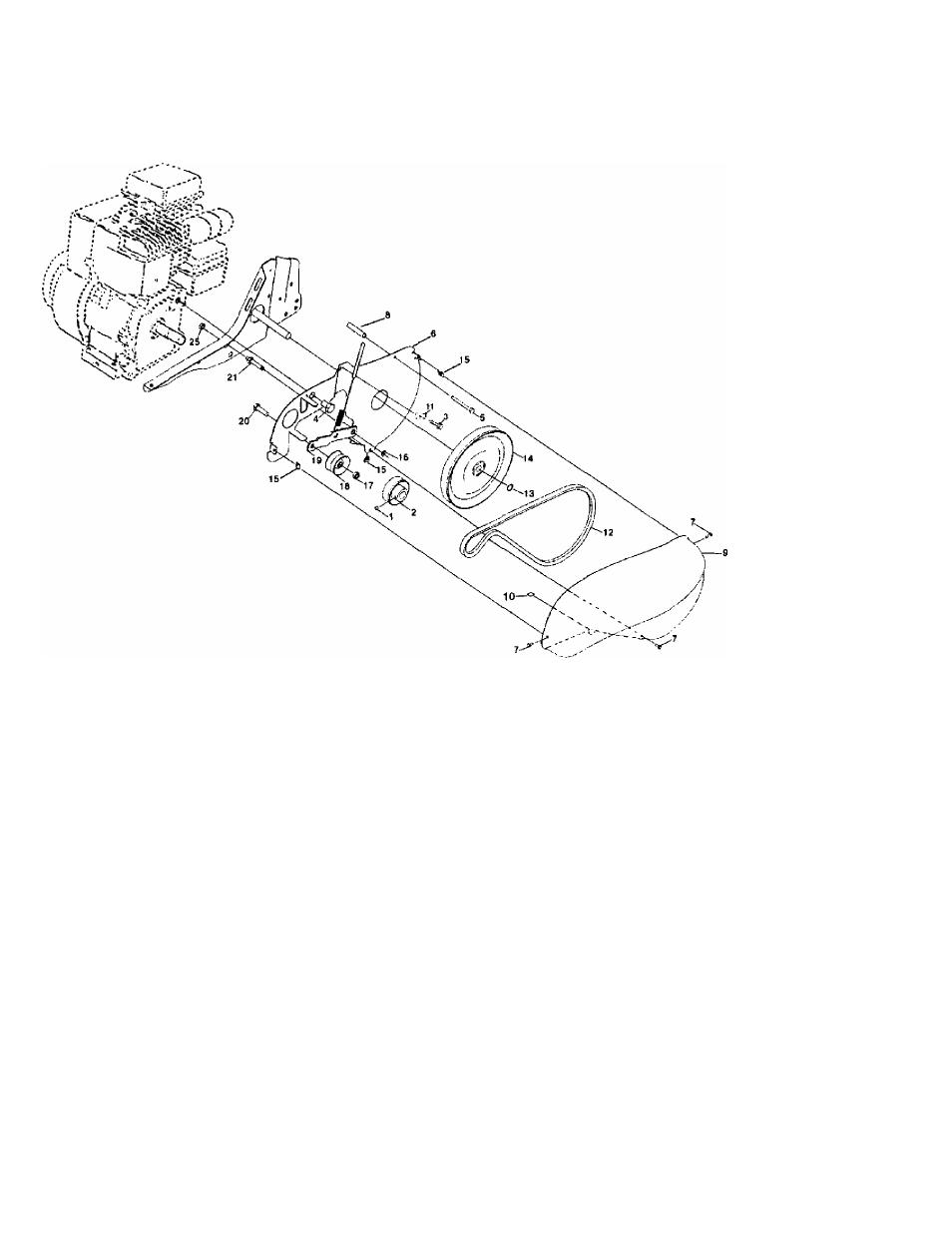

BELT GUARD AND PULLEY ASSEMBLY
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 23230506 Screw Set 5/16-18 x 3/8 Patch 13 12000028 Ring, Retainer
2 130812 Sheave, Engine 14 151223 Sheave, Transmisison
3 17211006 Screw, Tap Hex Head 15 165504 Nut J Clip #8
4 74610812 Bolt, Hex Head 1 / 2-20 x 3/4 16 12000036 Ring, Klip
5 17490440 Boll,Thd RolleM/4-20x2-1/2 17 STD541237 Nut. Hex, Jam 3/8-16
6 165770 Shield, Inner Belt Guard 18 161806 Pulley, Idler
7 165503 Screw Hex Wsh Hd #8-18x1/2 19 162290 Arm, Idler
8 139155 Spacer Split 20 STD523712 Bolt, Hex Head 3/8-16 X 1-1/4
9 165768X558 Guard, Belt 21 106968X Shalt, Idler Arm
10 109227X Pad, Idler 25 73350500 Nut, Hex, Jam 5/16-18
11
12
9484R
9180R
Clip, Cable
V-Belt
NOTE:
All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
37
