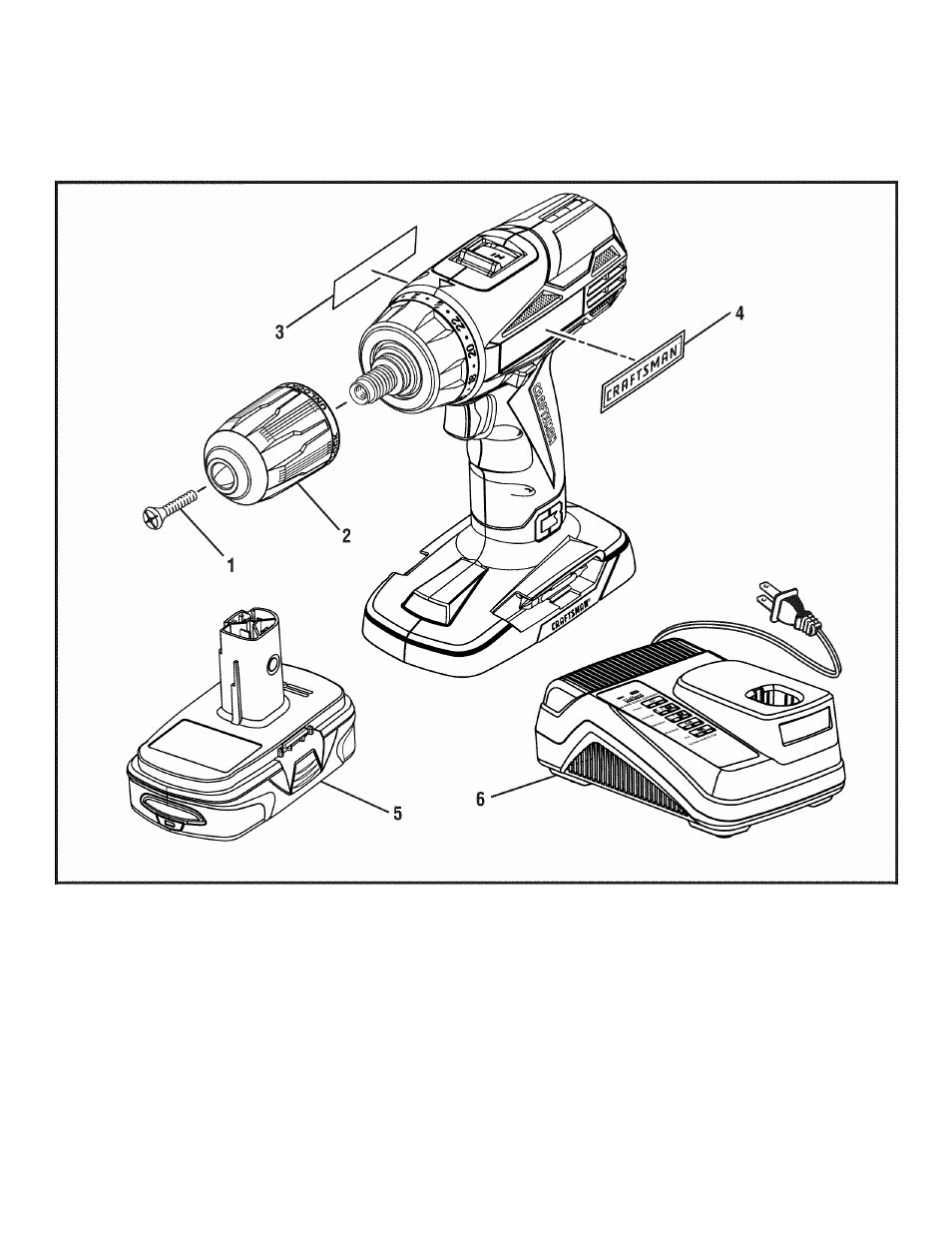

CRAFTSMAN 19.2 VOLT DRILL-DRIVER - MODEL NUMBER 315.119100
The model number will be found on a plate attached to the motor housing. Always mention the model
number in all correspondence regarding your DRILL-DRIVER or when ordering repair parts.
SEE BACK PAGE FOR PARTS
ORDERING
INSTRUCTIONS
Key
Part
PARTS LIST
No.
Number
Description
Qty.
1
6613402
Screw (Special)....................................................................... ........................... 1
2
690033096
Chuck...................................................................................... ........................... 1
3
940203021
Data Label............................................................................... ........................... 1
4
940237078
Logo Label............................................................................... ........................... 1
5
130156001
Battery Pack (Item No. 911371).............................................. ........................... 1
6
140351001
Charger (Item No. 925926)..................................................... ........................... 1
7
670824005
Double-ended Bit, Flat Head (Not Shown).............................. ........................... 1
8
670821006
Double-ended Bit, Phillips Head (Not Shown)........................ ........................... 1
987000419
Operator's Manual
V.
17
