— 5 —
P75
SECTION 1
GENERAL
The instructions given here are partial abstracts from the Operating Instruction
Manual. The page numbers shown reflect those of the Operating Instruction Manual.
English 1-5

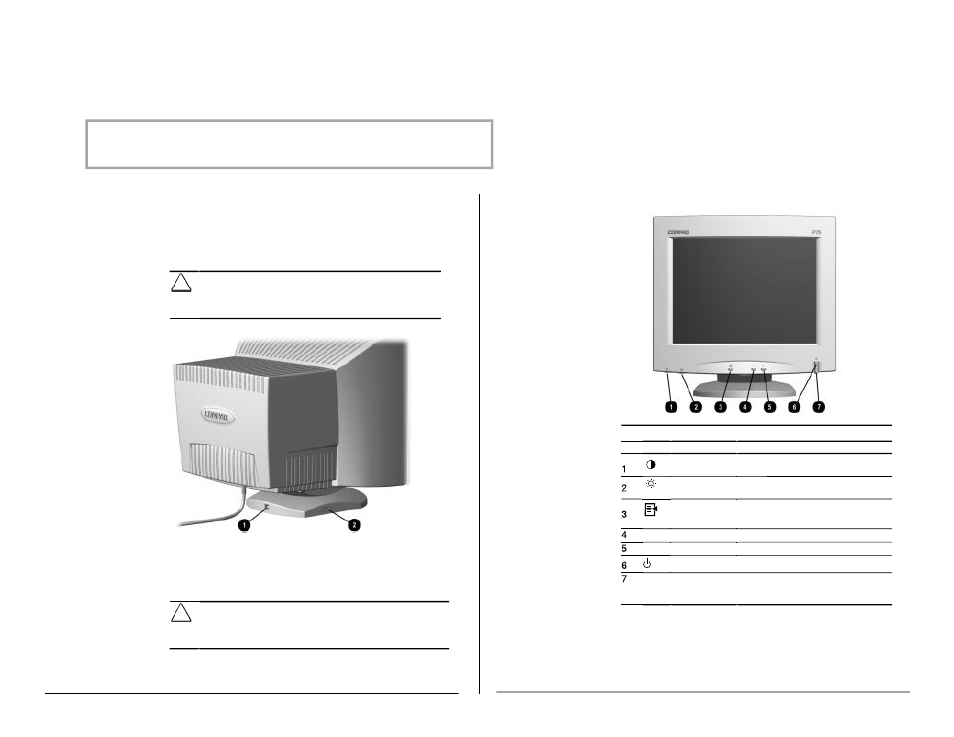

USB Connectors
The base of the monitor has two Universal Serial Bus (USB)
connectors. Use USB connector ❶ to connect the USB signal
cable
∗
to the computer. Use USB Connector ❷ to connect USB
compatible plug and play devices such as a keyboard, mouse, or
joystick if supported by your computer. This feature provides
USB pass-through and does not support USB host requirements.
CAUTION: This USB connector is not designed for use with high
speed USB devices such as a video camera, scanner, etc.
Compaq recommends connecting high speed devices directly to
the computer
.
✎
These USB connectors operate as a pass-through system. Your
computer must have a USB host controller installed for any
USB-connected devices to operate.
CAUTION: To prevent deterioration of signal transfer or
malfunction of USB devices, USB cables should not exceed the
combined length of 9.75 feet (3 meters). This length includes both
the USB signal cable and the USB peripheral cable.
∗
A USB signal cable is not supplied with this monitor.
1-6 English
Operating the
Monitor
Front Control Panel
No./ Icon Control Function
Contrast Adjusts contrast by turning control to left or
right.
Brightness Adjusts brightness by turning control to left or
right.
Select button 1. Launches on-screen display.
2. Selects function adjustments.
3. Exits menus and on-screen display.
−
Minus button Selects and adjusts the functions.
+
Plus button Selects and adjusts the functions.
Power switch Turns the monitor on and off.
Power LED 1. Green indicates monitor is turned on.
2. Yellow indicates suspend mode.
3. Amber indicates sleep mode.
