10 in. TABLE SAW MODEL N0.137.218030

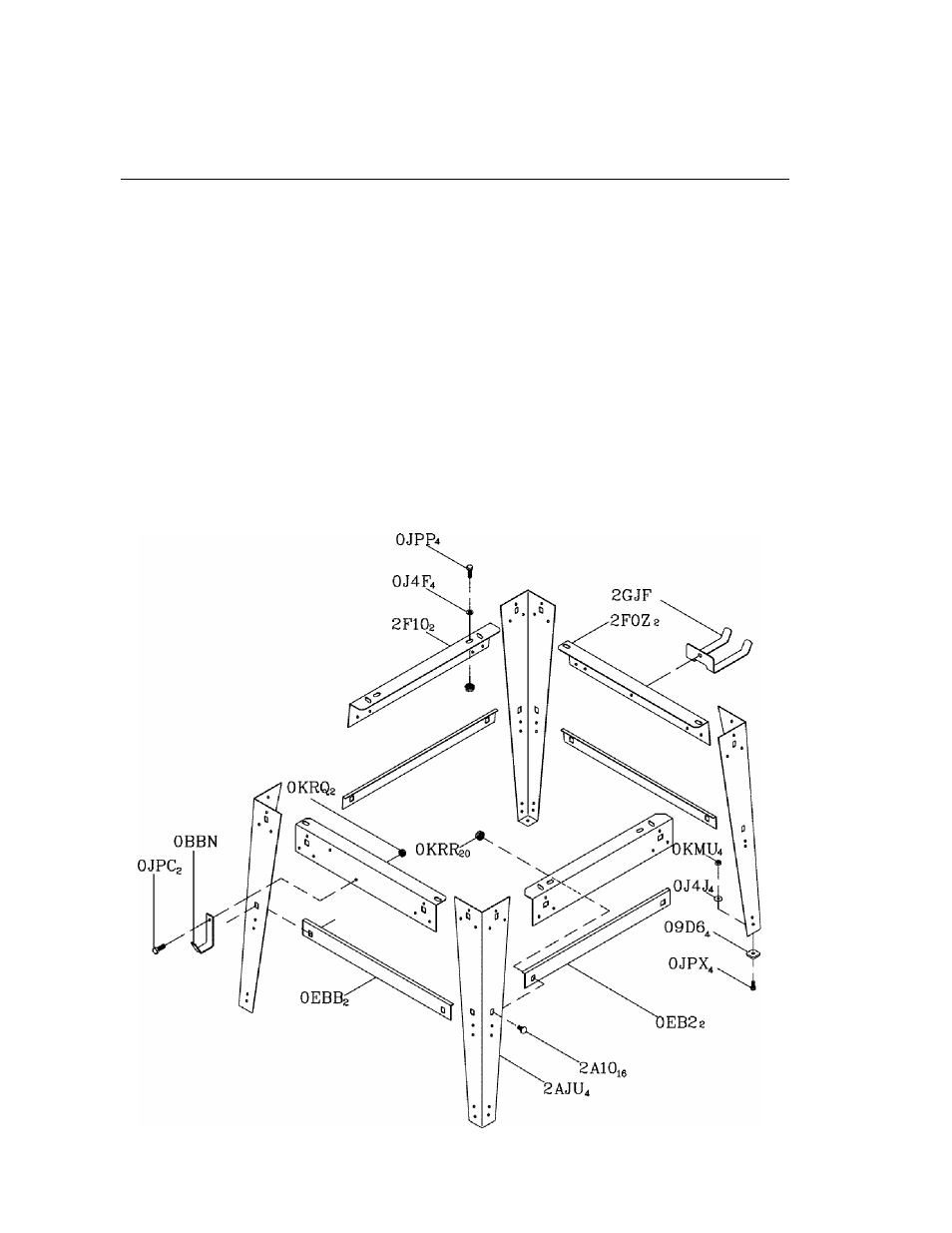

PARTS LIST AND SCHEMATIC FOR STAND
1. D. NO. Description Size Qfy
09D6 FOOT PAD 4
OBBN HOOK 1
0EB2 LONG BOTTOM SUPPORT BRACKET #06 2
OEBB SHORT BOTTOM SUPPORT BRACKET #06 2
0J4F FLAT WASHER cp8X 16-2,5 4
0J4J FLAT WASHER cp 10X20-2 4
OJPC HEX. HD. BOLT M6G.0-12 2
OJPP HEX. HD. BOLT M8* 1.25-30 4
OJPX HEX. HD. BOLT M 10*1.5-20 4
OKMU HEX. NUT M10*1.5T=8 4
OKRQ SERRATED TOOTHED HEXAGON FLANGE NUT M6*1.0T=6 2
OKRR SERRATED TOOTHED HEXAGON FLANGE NUT M8*1.25T=7.5 20
2A10 CAP HD. SQ.NECK BOLT MS* 1.25-12 16
2AJU LEG #06 4
2F0Z SHORT UPPER SUPPORT #06 2
2F10 LONG UPPER SUPPORT #06 2
2FD3 HARDWARE BAG ASS'Y 1
2GJF HOOK 1
27
