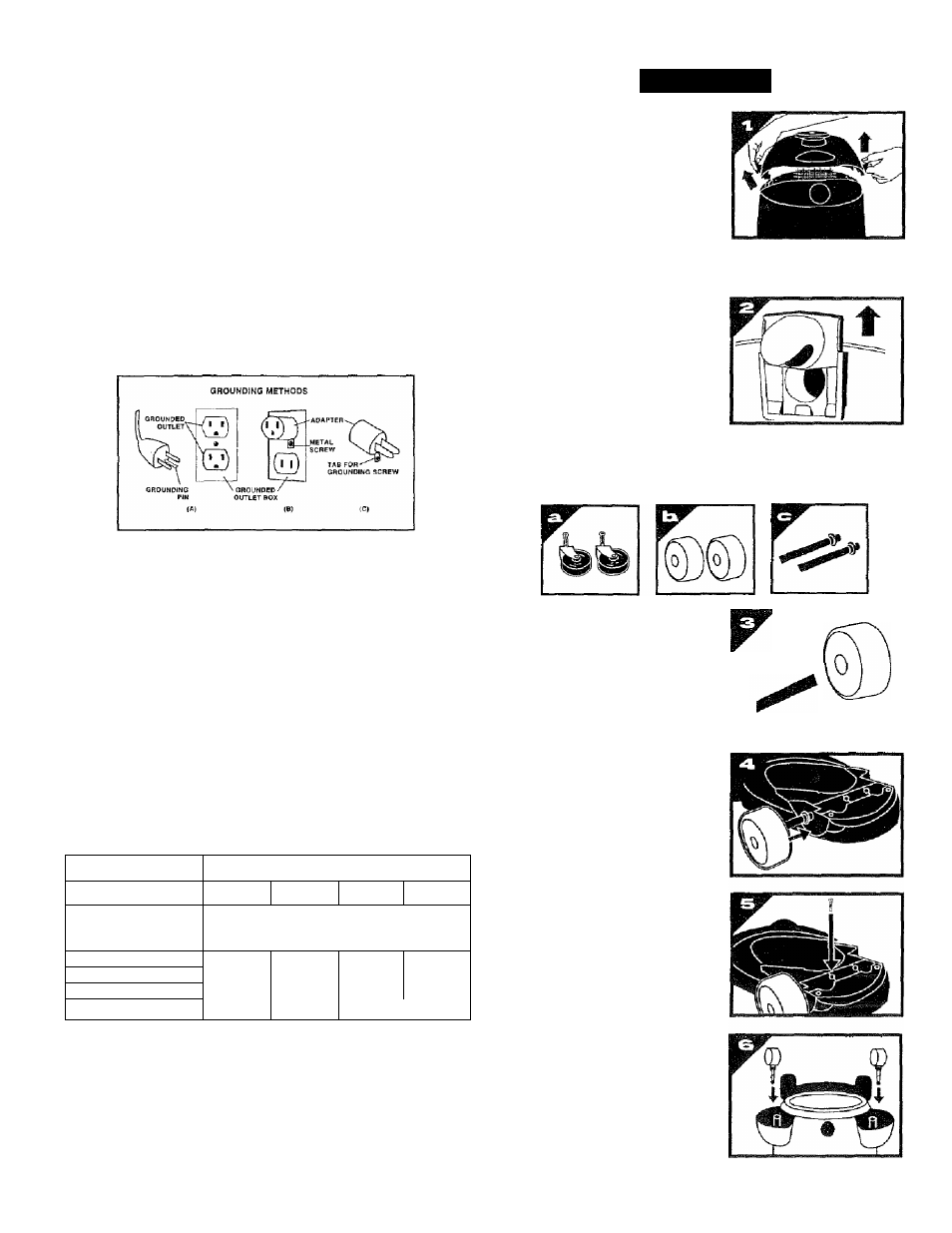

This vacuum cleaner is for use on a nominal 120-volt cir
cuit, and has a grounded plug that looks like the plug illus
trated in sketch A. A temporary Adapter that looks like the
adapter illustrated in sketches B and C may be used to con
nect this plug to a 2-pole receptacle as shown in sketch B if
a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet
(sketch A)
can be installed by a qualified electrician. The
green colored rigid ear, lug or the like extending from the
adapter must be connected to a permanent ground such as
a properly grounded outlet box cover. Whenever the
adapter is used, it must be held in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electrical code.
EXTENSION CORDS
When using the vacuum cleaner at a distance where an
extension cord becomes necessary, a 3-conductor ground
ing cord of adequate size must be used for safety, and to
prevent loss of power and overheating. Use the table below
to determine A.W.G. wire size required. To determine
ampere rating of your vacuum, refer to nameplate located
on rear of motor cover.
Before using vacuum cleaner, inspect power cord for loose
or exposed wires and damaged insulation. Make any need
ed repairs or replacements before using your vacuum
cleaner. Use only three-wire outdoor extension cords which
have three-prong grounding-type plugs and three-pole
receptacles which accept the extension cord’s plug. When
vacuuming liquids, be sure the extension cord connection
does not come in contact with the liquid.
Volts
Total length of cord in feet
120V
25
50
100
150
Ampere Rating
More Not More
AWG
Than Than
0.................. 6
18
16
16
14
6.................10
18
16
14
12
10.............. 12
16
16
14
12
12.............. 16
14
12
Not recommended
NOTE: Static shocks are common in dry areas or when
the relative humidity of the air is low. This is only tempo
rary and does not affect the use of the appliance. To
reduce the frequency of static shocks in your home, the
best remedy is to add moisture to the air with a console or
installed humidifier.
1
.
2
.
3.
4.
ASSEMBLY
Puli tank cover latches in an
outward motion and remove
tank cover and any acces
sories which may have been
shipped in the tank. (Figure 1)
Before replacing tank cover,
refer to Dry Pick-Up or Wet
Pick-Up Operation in this manual to ensure you have
the proper filters installed and inlet deflector is posi
tioned correctly for your cleaning operation.
Your vacuum comes with the
filters already installed for dry
pick-up. For filters recom
mended for wet pick-up refer
to wet pick-up operation.
Be sure inlet deflector
(Figure 2
)
is in proper
position. Opening up for wet, down for dry vacuuming.
You will find two casters (a), two large wheels (b), two
axles (c), and six screws with your wet/dry pump vacuum.
6. With cord disconnected from
receptacle, remove tank
cover and invert tank so that
bottom is facing up.
7. Take one axle and insert it
into the center of the smooth
side of the wheel. (Figure 3)
8. Install the axle and wheel
assembly into the underside of;
the rear wheel dolly. (Figure
4) Apply pressure to the axle
and wheel assembly,
until the axle is tight against
the axle stop.
9. Secure the axle to the rear
wheel dolly with screw provid
ed, (Figure 5)
10. Repeat steps 8 and 9 to
attach the other side of the
wheel assembly.
11. Insert casters into the under
side of front caster supports.
(Figure 6)
12. Replace tank cover and apply
pressure with thumbs to
each latch until it snaps tightly
in place. Make sure both lid
latches are damped securely.
(Figure 7)
