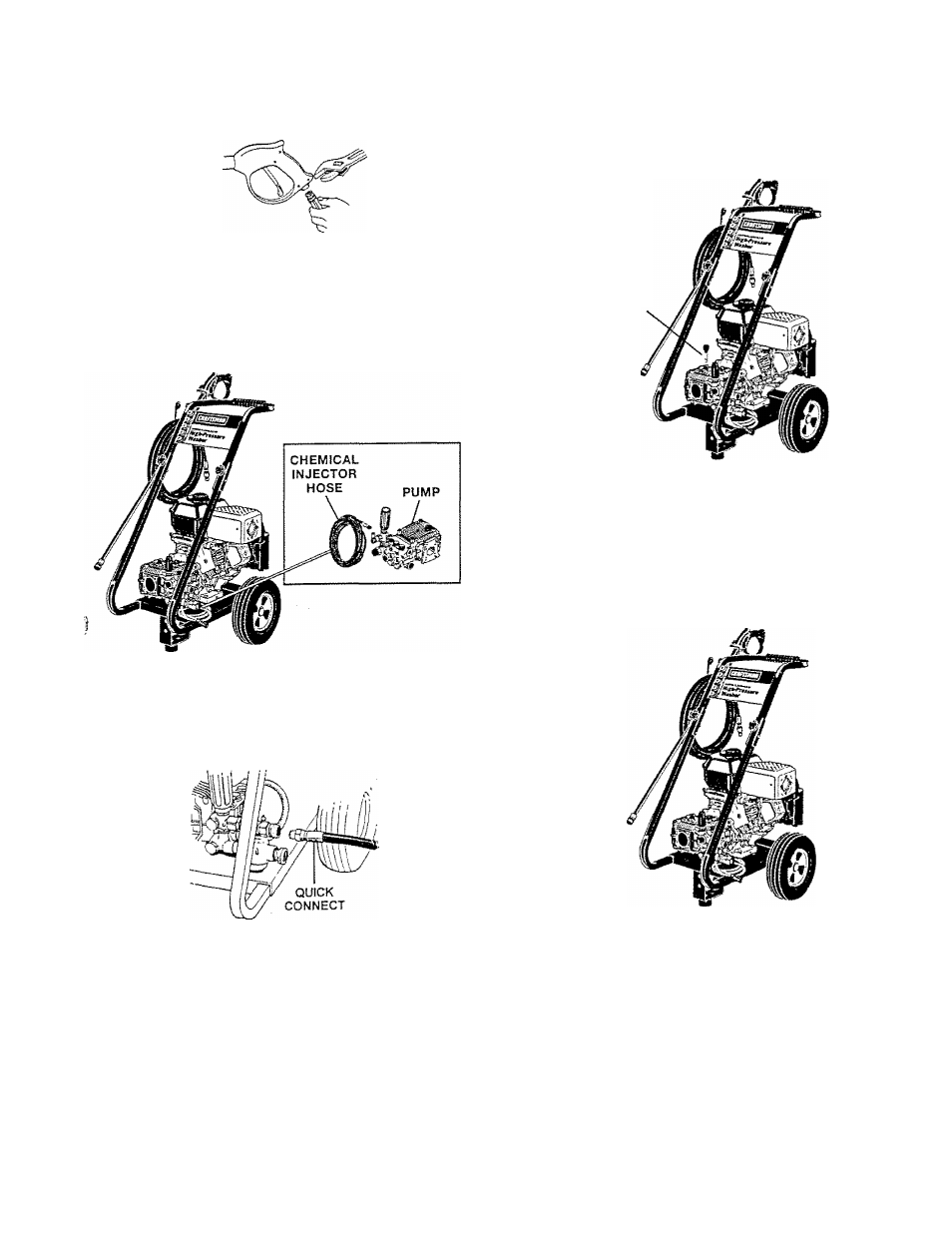

Cut tie wrap off of high pressure hose. Unwind
high pressure hose to attach the threaded end to
the gun. Tighten with adjustable wrench.

6. Connect chemical hose to the chemical injector

hose barb on pump.

Connect high pressure hose to the quick connect

outlet on pressure washer.

NOTE: Always keep hose away from engine

muffler.

Your units pump is shipped with a
temporary plug that must be replaced with a

breather cap. This plug is located over the
pump’s oil port. Unscrew and remove this plug.
Remove the breather cap from the bag attached
to the plug and install it in the pump’s oil port.

BREATHER

CAP

A CAUTION: Failure to replace the plug will result

in serious pump damage.

9. Place assembled gun and wand on pressure

handle bracket as shown.

Checklist

Before going any further please review the following:

• Be sure you have completed assembly instruction.
• Double check all fittings to be sure they are tight.

IMPORTANT: Before any attempt to start your pres
sure washer be sure to check engine oil {See Operation
under Engine Oil, page 9.)
