REPAIR PARTS
SNOW THROWER - - MODEL NUMBER 917.881064

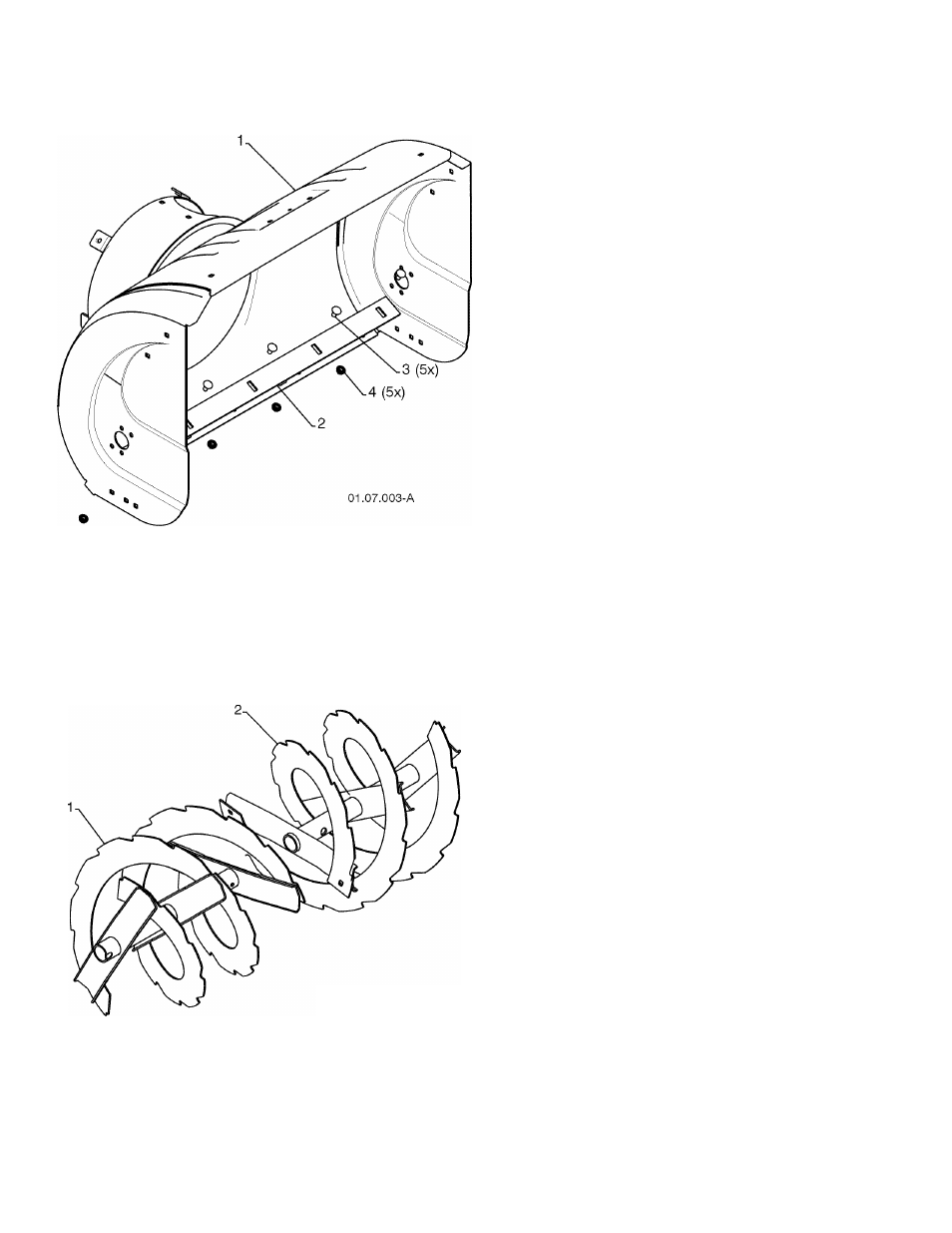

AUGER HOUSING / IMPELLER ASSEMBLY
KEY
PART
NO.
NO.
DESCRIPTION
1
404930X615
AUGER HOUSING
2
404933X479
SGRAPPER BAR
3
72270505
OARRIAGEBOLT5/16-18X.625
4
155377
NUT 5/16-18
KEY
PART
NO.
NO.
DESCRIPTION
1
420497X479
AUGER ASSEMBLY 30
LH
2
420498X479
AUGER ASSEMBLY 30
RH
01.07.019-A
NOTE:
All component dimensions given In U.S, Inches,
1
Inch = 25,4 mm
IMPORTANT:
Use only Original Equipment Manufacturer (0,E,M,) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty,
