TRACTOR - - MODEL NUMBER 917.273840

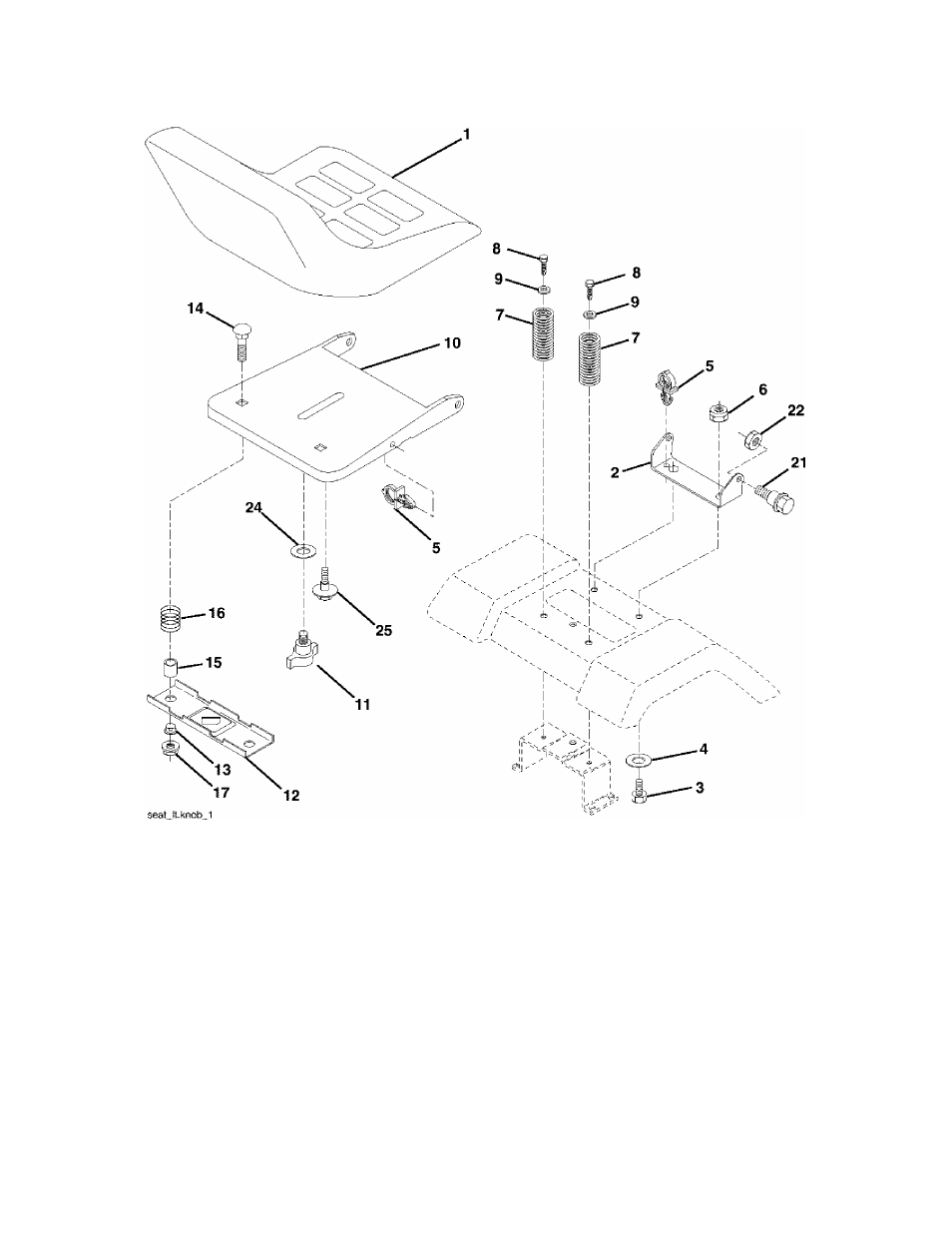

SEAT ASSEMBLY
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
188719
Seat
14
72050412
Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
2
140551
Bracket Pnt Pivot Seat
15
134300
Spacer Split 28 x 96 Zinc
3
71110616
Bolt Fin Hex 3/8-16 unc x 1
16
121250X
Spring Cprsn 1 27 Bik Pnt
4
19131610
Washer 13/32 X 3/4 X 10 Ga.
17
123976X
Nut Lock 1/4 Lge Fig Gr. 5 Zinc
5
145006
Ciip Push In Hinged
21
171852
Bolt Shoulder 5/16-18 unc-2A
6
STD541437 Nut Hex Lock w/lns 3/8-16 unc
22
STD541431 Nut Hex Lock w/lns 5/16-18
7
124181X
Spring Seat Cprsn 2 250 Bik Zi
24
19171912
Washer 17/32 x 1-3/16 x 12 Ga.
8
17000616
Screw 3/8-16 X 1.5 SMGML
25
127018X
Bolt Shulder5/16-18x .62
9
10
11
19131614
182493
166369
Washer 13/32 X 1 X 14 Ga.
Pan Pnt Seat
Knob Seat
NOTE:
All component dimensions given in U.S. inch«
12
13
121246X
121248X
Bracket Pnt Mounting Switch
Bushing Snap Bik Ny! 50 Id
1 inch = 25.4 mm
43
