REPAIR PARTS
TILLER - - MODEL NUMBER 917.292200

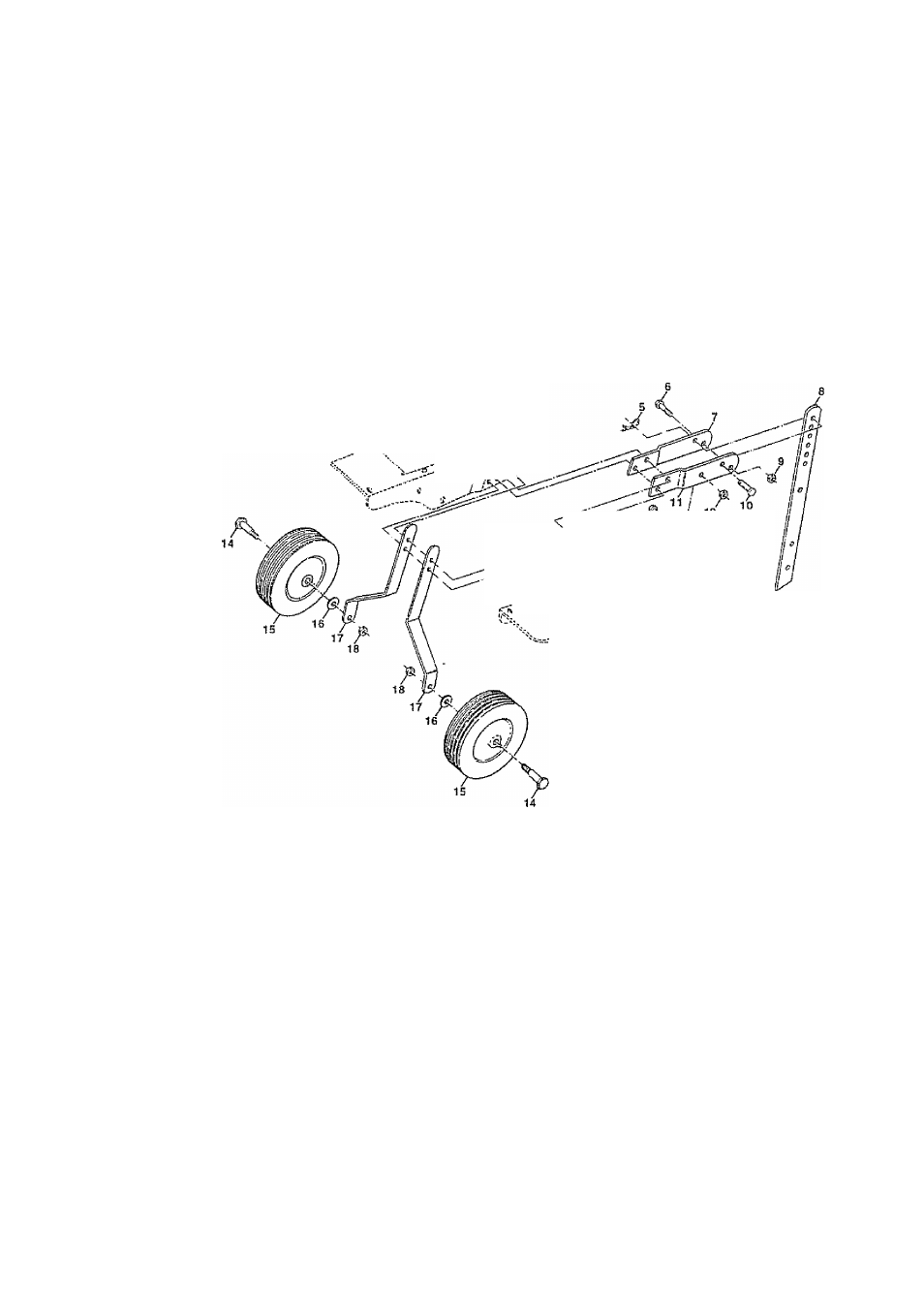

WHEEL AND DEPTH STAKE ASSEMBLY
NX
' ^ / r y
xV‘'/
f {
% // ')
'' 0/Li
7/
H
.
,'Pt
i?'' c «i. V ^
<4
KEY PART
DESCRIPTION
KEY PART
DESCRIPTION
NO. NO.
NO. NO.
1
74760520
-Bolt, Hex 5/16-18x1-1/4
13
325J
Spring, Depth Stake
2
73220500
•Nut, Hex 5/16-18
14
121117X
Bolt, Shoulder
3
10040500
•Washer, Lock 5/16
15
9186R
Wheel
4
19121414
•Washer 3/8 x 7/8 x 14 Ga.
16
19131311
•Washer 13/32 x 13/16 x 11 Ga
5
4921H
Clip, Hairpin
17
9189R
Bracket, Wheel
6
74780628
Bolt, Fin, Hex 3/8-16x1-3/4
18
73680600
*Nut, CrowniDck 3/8-16
7
318J
Support, Depth Slake, R.,H.
19
73800500
Locknut, W/insert 5/16-18
B
9193R
Depth Stake
20
74760524
Bolt, Hex 5/16-18X1-1/2
9
73800600
Locknut, W/lnsert 3/8-16
10
9551R
Pin, Clevis
* STANDARD HARDWARE - - PURCHASE LOCALLY
11
317J
Support, Depth Stake, L H
NOTErAII component dimensions given in U.S. inches
12
74760512
-Bolt, Hex 5/16-18x3/4
1 inch = 25.4 mm
