Carrier 48/50PG20-28 User Manual

Page 6

background image

6

C07178

Fig. 7

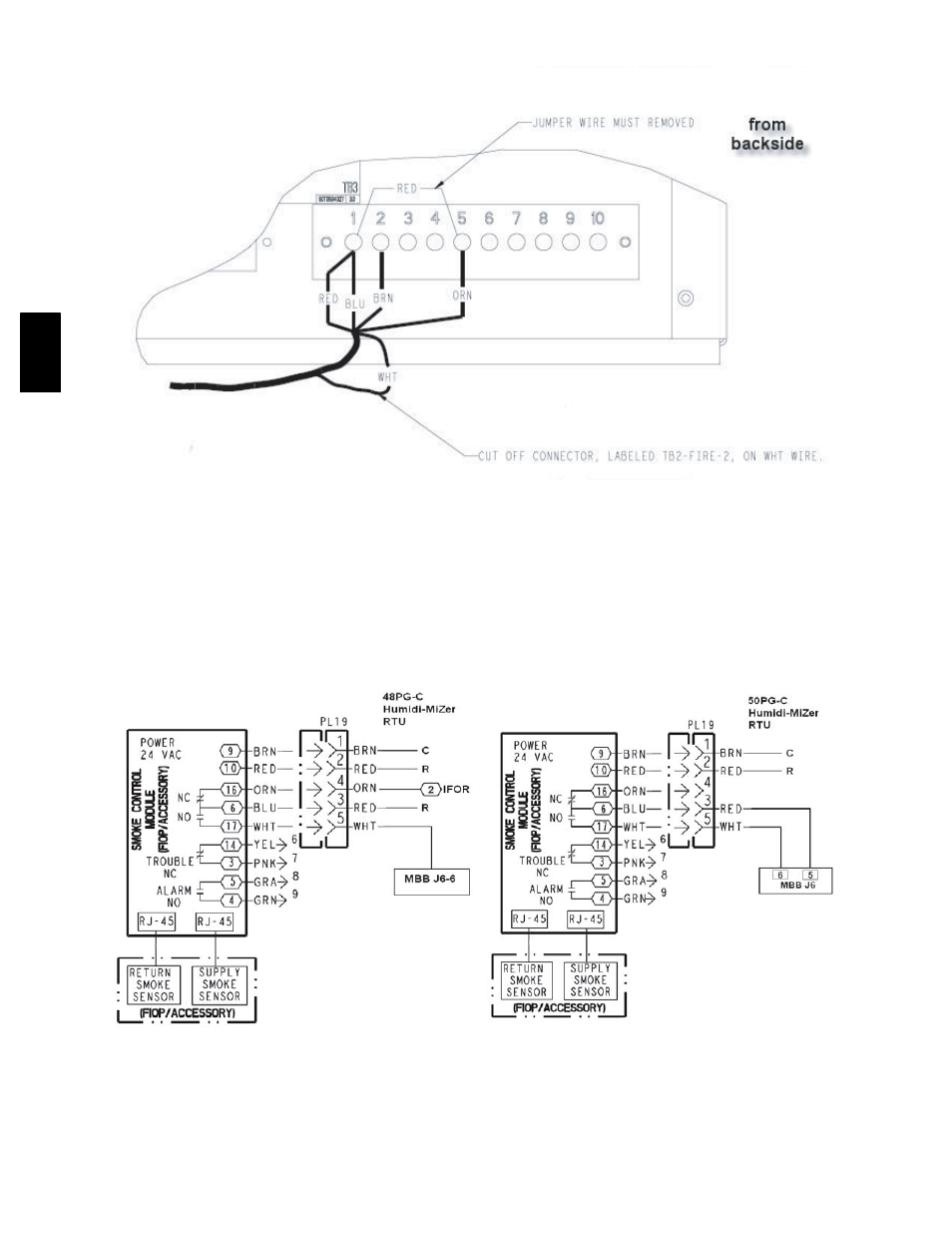

--- Smoke Detector Wiring on Electro--Mechanical Control Units

C07179

Fig. 8

--- 48/50PG Humidi--MiZert Smoke Detector Wiring

CR

S

M

K
